Quick Details
-
Brand Name:
-
Worldsunlight/OEM
-
Model Number:
-

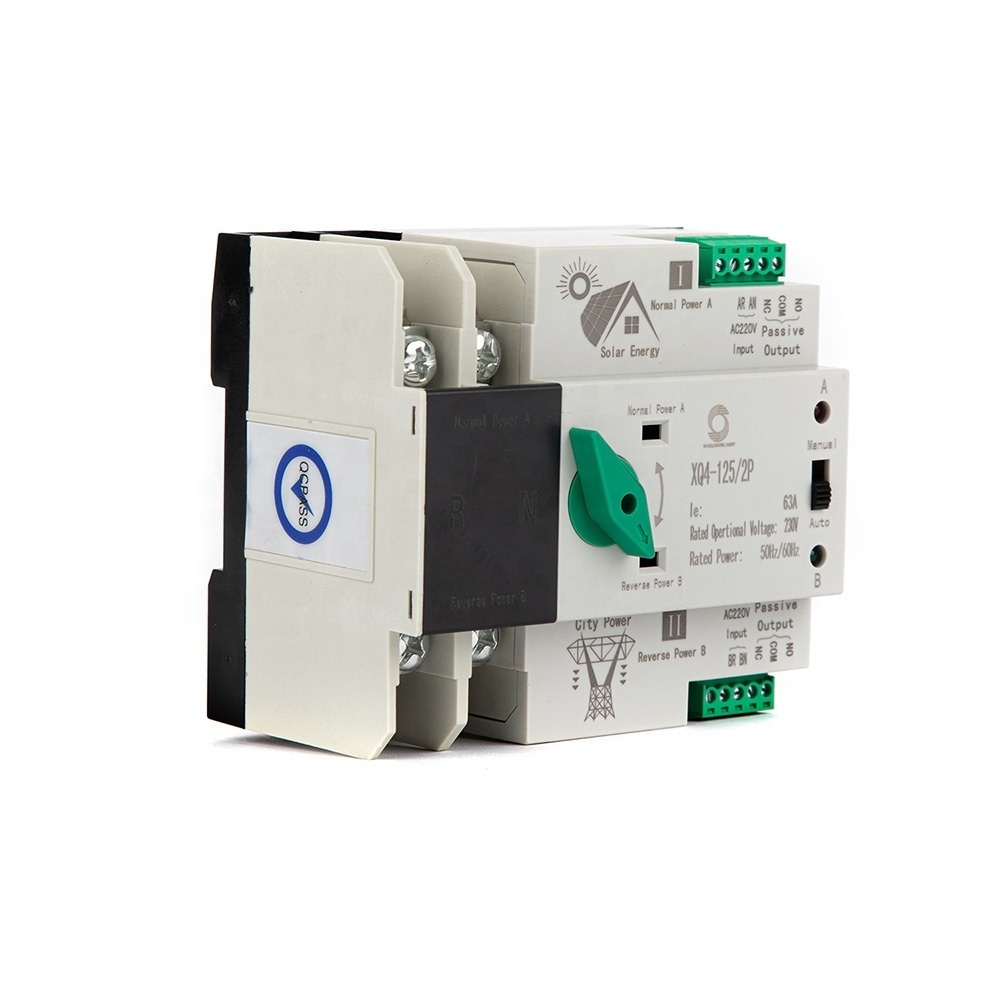

XLQ4
-
Rated Current:
-
16A 20A 25A 32A 40A 50A 63A 100A 125A
-
Quality guarantee:
-
1Years
-
Certification:
-
CE
-
Max. Voltage:
-
230V
-
Max. Current:
-
125A
Quick Details
-
Type:
-
PC
-
Number of Pole:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Worldsunlight/OEM
-
Model Number:
-
XLQ4
-
Rated Current:
-
16A 20A 25A 32A 40A 50A 63A 100A 125A
-
Quality guarantee:
-
1Years
-
Certification:
-
CE
-
Max. Voltage:
-
230V
-
Max. Current:
-
125A
| Rated current Ie(A) | 16A, 20A, 25A, 32A, 40A, 50A, 63A,100A |
| Installation | Din rail |
| Rated insulation voltage Ui (V) | AC690, 50HZ |
| Rated working voltage Ue (V) | AC400, 50HZ |
| Rated impulse withstand voltage (KV ) | 8KV |
| Poles | 2P 3P 4P |
| Weight (KG) | 1.7 2.1 2.6 |
| Connecting and breaking | 6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times |
| Operating performance | 2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times |
| Rated limited short-circuit current Iq | 50KA |
| SCPD (FUSES ) | RT16-00-63A |
| Control circuit | |
| Ancillary circuit | |
| Switching time | <50ms |
| Action time | <50ms |
