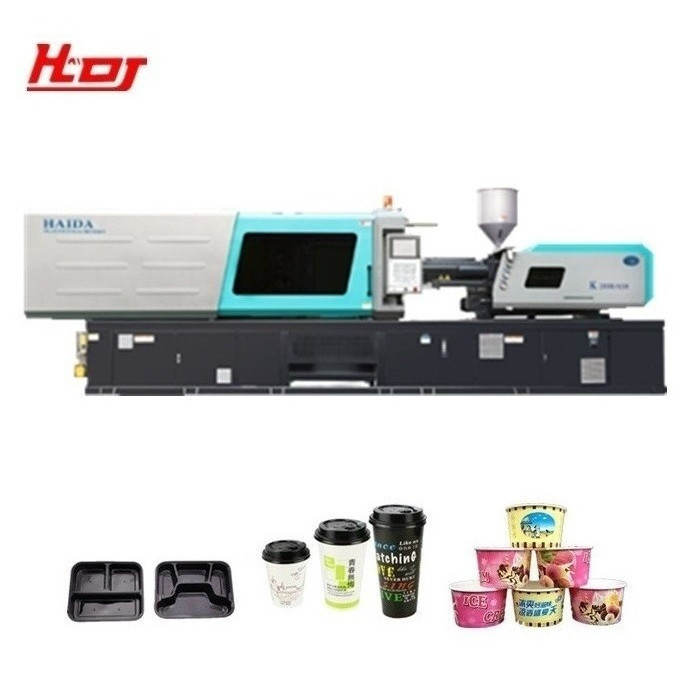

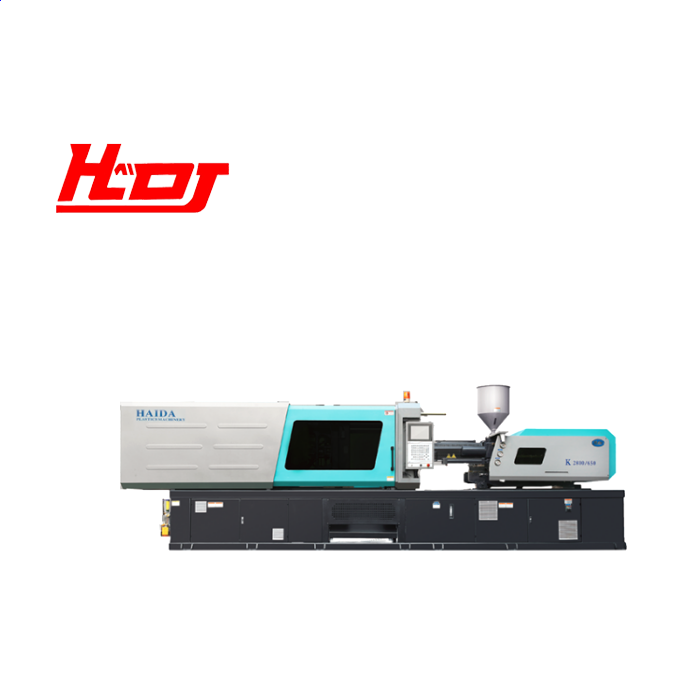

Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage
Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage
Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage
Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage
Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage
Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage
Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage
Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage

Plastic Thin Wall PS Material Food Containers Injection Molding Machine PP Lunch Box Injection Machine for Plastic Box Storage

FOB Reference Price: Get Latest Price
≥1 Pieces
US $26000
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Product name:
Thin-Wall Injection Machine
Machine weight:
17T
Machine dimension(L*W*H):
7.3*1.9*2.7m
Screw diameter:
50/55mm
Voltage:
380V/ 50Hz 3P+N+E (alterable)
Heating power:
19kW
MOULD THICKNESS:
240-650mm
Ejector Stroke:
160mm
Injection Rate:
616/745g/s
Injection Weight:
436/528g

Quick Details

Injection Weight (g):
528 g
Screw diameter (mm):
55 mm
Place of Origin:
Zhejiang, China
Product name:
Thin-Wall Injection Machine
Machine weight:
17T
Machine dimension(L*W*H):
7.3*1.9*2.7m
Screw diameter:
50/55mm
Voltage:
380V/ 50Hz 3P+N+E (alterable)
Heating power:
19kW
MOULD THICKNESS:
240-650mm
Ejector Stroke:
160mm
Injection Rate:
616/745g/s
Injection Weight:
436/528g
Product Description
Plastic Thin Wall PS Material Food Containers Injection Molding Machine
PP Lunch Box Injection Machine for Plastic Box Storage

Fast

HIGHER WORK EFFICIENCY

STABLE

STRICTER SAFETY STANDARDS

ECONOMICAL

LOWER COST FOR OPERATION AND MAINTENANCE

POWERFUL

MORE PERFECT ORGANIZATION STRUCTURE

parameters
ITEM
UNIT
DATA
Injection Unit
Screw Diameter
mm
50
55

Screw L/D Ratio
L/D
25
23

Injection Volume
cm 3
480
580

Shot Weight
g
436
528

Injection Rate
g/s
616
745

Injection Speed(max)
mm/s
350
Injection Pressure
Mpa
169
140

Screw Speed
RPM
350
Clamping Unit
Clamping Force
KN
3600
Opening Stroke
mm
640
Space Between Tie-Bars
mm
715×715
Mould Thickness(Min-Max)
mm
240-650
Hydraulic Ejection
KN
102
Ejector Stroke
mm
160
General
System Pressure
Mpa
14
Motor Power
KW
37×2
Heater
KW
21
Machine Dimension
m
7.3×1.9×2.7
Machine Weight
t
17
Mould Orientation Ring Diameter
mm
Φ160
Nozzle Radius
mm
SR10
Applications
Detailed Images

Injection System

Enhanced twin-cylinder twin-rod injection mechanism
has reduced injection return oil pressure and improved
injection speed and service life, with dual linear guide
double-carriage balancing seat mechanism to enhance
accuracy incylinder positioning. Precise screw has greatly
improved injection precision and reduced defect rate.
Optional original imported pneumatic nozzles are easy to
open and close, with reliable sealing; and adopt reinforced cylinder thickness and high-power heating device to
ensure plasticizing efficiency.

Clamping Systems

Use high-rigidity thick platen to reduce deformation due to mold expanding; optimized five-point toggle clamping
mechanism to realize uniform load on platen,with stable
and rapid movement. Apply high strength compression
wear-resistantself-lubricating bearing to lock shaft and pull rod to reduce impact and to increase service life; longer
platen guide mechanism to have stable platen movement, higher mould opening precision and convenient picking of mechanical arm; volumetric rationing dilute oil lubricating
to optimize lubrication distribution and to reduce
lubrication consumption; pull rod and lock shaft made of
enhanced high-quality alloy steel to greatly increase
service life.

HYDRAULIC SYSTEM

Use high-speed stock motor and hydraulic components of
international famous brands to ensure high¬speed and
efficient operation with long service time. High response
oil circuit and hydraulic valve board modular design and
optimized oil circuit layout with non-damping have reduced pressure losseffectively, and improved responsiveness.
Optional injection and clamping proportional reversing
valves have improved positioning precision and response
speed. With effective and reasonable configuration of
servosystem, the injection speed is more than two times
of ordinary machine. Optional infrared nano heating device has further improved plasticizing quality.

CONTROL SYSTEM

Latest international distributed control system, latesthardware design, intelligent interface with EtherCATDCANcommunication technology and faster CPU computing speed are specially developed for the whole motor and high speed machine. Application of all-digital communication technology has improved various technical indexes significantly, with more accurate control on pressure and flow. Graphical display of various action and state let users know conditions of machine in a more intuitive way. Reserved internet management system and energy consumption display can realize remote real-time monitoring and maintenance diagnosis on each injection machine, as well as advanced management such as reasonably arranged production, etc.
Related Products

HD260K

HD300K

HD420K

Model
Shot   Weight  (g)
Space  Between              bars             (mm)
Model
Shot   Weight   (g)
Space   Between              bars             (mm)
HD260K
229~289
565*515
HD360K
436~528
715*715
HD300K
311~384
615*615
HD420K
562~669
755*755
