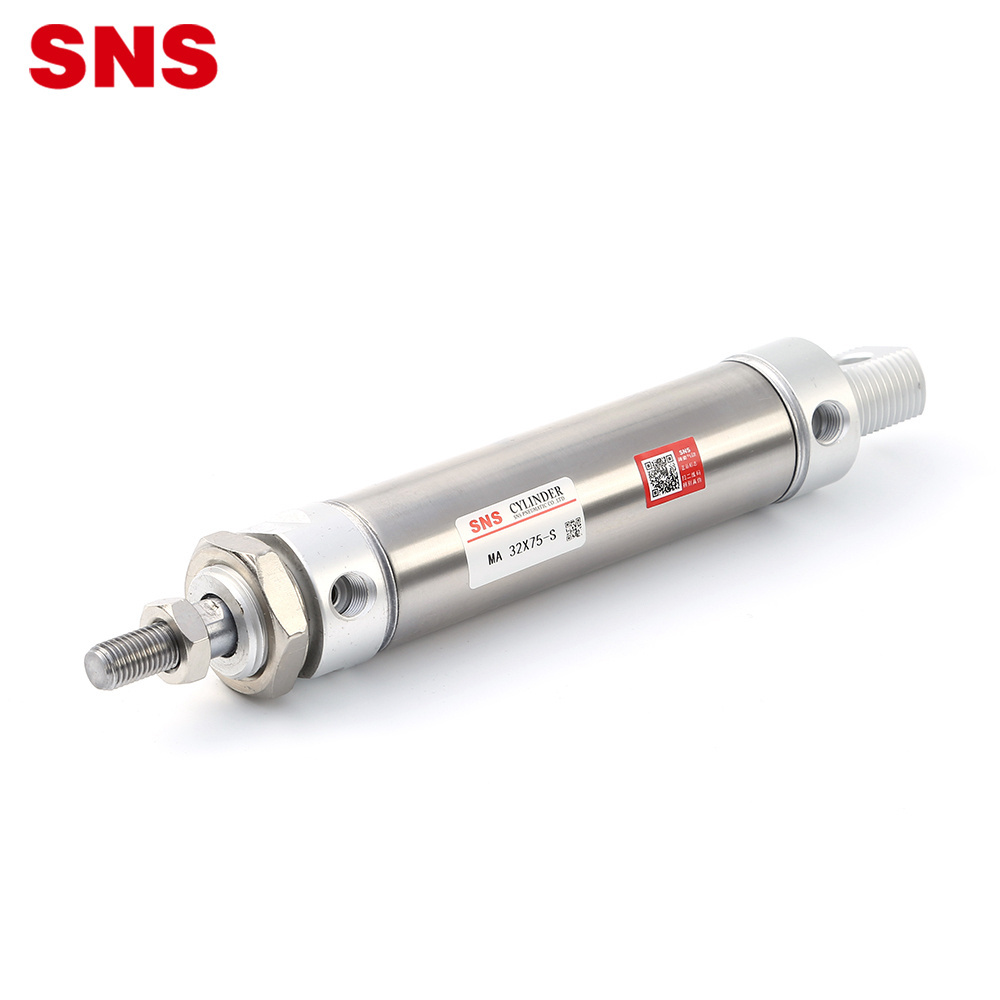

SNS MA Series double/single acting stainless steel mini pneumatic air cylinder with PT/NPT port
Banner
Product Description
| Bore Size(mm) | 16 | 20 | 25 | 32 | 40 |
| Acting Mode | Double Acting | ||||
| Working Media | Cleaned Air | ||||
| Working Pressure | 0.1~0.9Mpa(1~9kgf/cm²) | ||||
| Proof Pressure | 1.35Mpa(13.5kgf/cm²) | ||||
| Working Temperature | -5~70℃ | ||||
| Buffering Mode | Unadjustable Buffer | ||||
| Port Size | M5 | 1/8 | |||
| Body Material | Stainless Steel | ||||
| Bore Size(mm) | Standard Stroke(mm) | Max.Stroke(mm)Max.Stroke(mm) | Allowable Stroke(mm) |
| 12 | 25 50 75 100 125 150 175 200 250 300 | 500 | 800 |
| 16 | 25 50 75 100 125 150 175 200 250 300 | 500 | 800 |
| 20 | 25 50 75 100 125 150 175 200 250 300 | 800 | 1200 |
| 25 | 25 50 75 100 125 150 175 200 250 300 | 800 | 1200 |
| 40 | 25 50 75 100 125 150 175 200 250 300 | 1200 | 1500 |
| Bore Size(mm) | A | A1 | B | C | D | D1 | E | F | G | H | I | J | K |
| 16 | 114 | 98 | 38 | 60 | 15 | 16 | 22 | 16 | 10 | 16 | 10 | 5 | M6*1 |
| 20 | 137 | 116 | 40 | 76 | 21 | 12 | 28 | 12 | 16 | 20 | 12 | 6 | M8*1.25 |
| 25 | 141 | 120 | 44 | 76 | 21 | 14 | 30 | 14 | 16 | 22 | 17 | 6 | M10*1.25 |
| 32 | 147 | 120 | 44 | 76 | 27 | 14 | 30 | 14 | 16 | 22 | 17 | 6 | M10*1.25 |
| 40 | 149 | 122 | 46 | 76 | 27 | 14 | 32 | 14 | 16.7 | 24 | 17 | 19 | M12*1.25 |
| Bore Size(mm) | L | M | P | Q | R | S | U | V | W | X | AR | AX | AY |
| 16 | M6*1.5 | 14 | 6 | 12 | 14 | 9 | 21 | 6 | 5 | M5 | 6 | 25 | 22 |
| 20 | M22*1.5 | 10 | 8 | 16 | 19 | 12 | 27 | 8 | 6 | G1/8 | 7 | 33 | 29 |
| 25 | M22*1.5 | 12 | 8 | 16 | 19 | 12 | 30 | 10 | 8 | G1/8 | 7 | 33 | 29 |
| 32 | M24*2.0 | 12 | 10 | 16 | 25 | 15 | 35 | 12 | 10 | G1/8 | 8 | 37 | 32 |
| 40 | M30*2.0 | 12 | 12 | 20 | 25 | 15 | 41.3 | 16 | 14 | G1/8 | 9 | 47 | 41 |
