Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
JiNan China
-
Brand Name:
-
yidiao
-
Dimension(L*W*H):
-
1050mm*750mm*970mm
-
Weight (KG):
-
250 KG
-
Laser power:
-
40w/50w/60w/80W/100W Optional
-
Engraving speed:
-
0-10000mm/min
-
Cutting Speed:
-
0-40000 Mm/min
-
Motor:
-
Leashine Step Motor
-
Optional parts:
-
up-down worktable,red light pointer,auto focus,rotary device
-
Resolution ratio:
-
<0.01mm
-
Working area::
-
600*400mm
-
Power supply:
-
AC110V/220V 5% 50/60HZ
-
Control system:
-
Ruida
-
Laser tube:
-
Sealed CO2 Glass Tube
Quick Details
-
Engraving Area:
-
600*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-10000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
JiNan China
-
Brand Name:
-
yidiao
-
Dimension(L*W*H):
-
1050mm*750mm*970mm
-
Weight (KG):
-
250 KG
-
Laser power:
-
40w/50w/60w/80W/100W Optional
-
Engraving speed:
-
0-10000mm/min
-
Cutting Speed:
-
0-40000 Mm/min
-
Motor:
-
Leashine Step Motor
-
Optional parts:
-
up-down worktable,red light pointer,auto focus,rotary device
-
Resolution ratio:
-
<0.01mm
-
Working area::
-
600*400mm
-
Power supply:
-
AC110V/220V 5% 50/60HZ
-
Control system:
-
Ruida
-
Laser tube:
-
Sealed CO2 Glass Tube

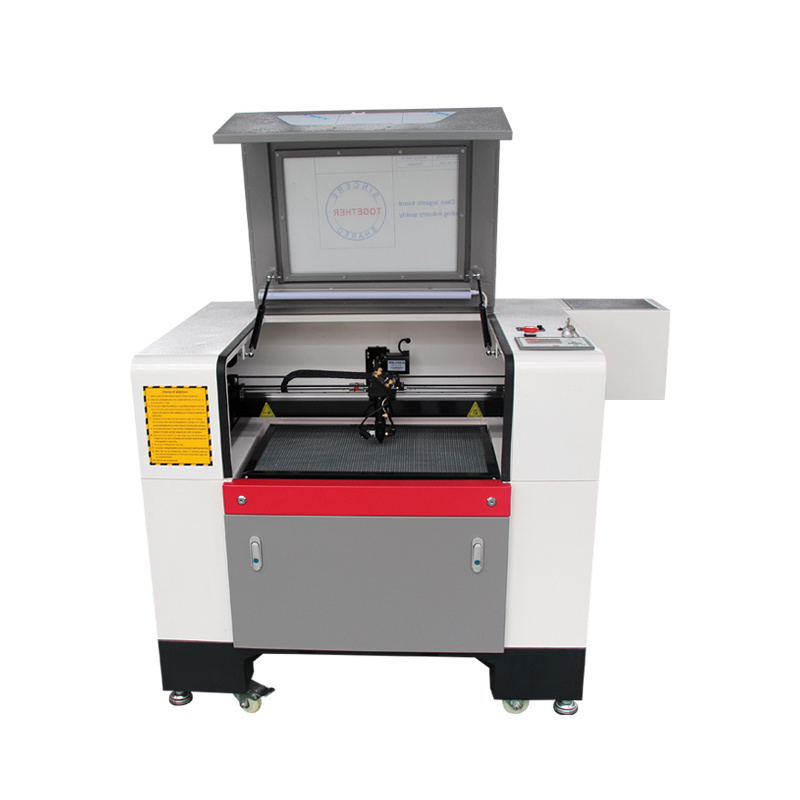

640 co2 laser cutting engraving machine
Product Description
The machine can be used in the manufacture of stamps, souvenirs, advertising, personalization of products, woodworking and printing. The work table of the machine has a size of 600x400 mm. The power of the laser tube can be 40 watts, 50 watts and 80 watts. A feature of this machine is the removable side walls, which allows you to process the material with overall dimensions greater than the size of the working field.
The machine is equipped with a red pointing beam, power adjustment display, LED desktop illumination, temperature sensor, emergency stop button. A RuiDa controller is installed on the machine.
Laser cutting and engraving are controlled using the RDWorks V8 software, which is integrated into the CorelDRAW graphics editor. Electric lifting table allows you to process materials of various sizes and install a rotary device (device for engraving on cylindrical surfaces).
Technology
| Model | YK640 |
| Working area | 60cm*40cm |
| Laser power | 100w two heads |
| Laser type | CO2 sealed laser tube, water-cooling |
| Cutting speed | 0-40000mm/min |
| Power supply | 220V±10% /50HZ , 110V±10%//60HZ |
| Min. shaping character | Letter 1 x 1mm |
| Graphic format supported | BMP, PLT, DST, DXF, AI,CDR |
| Software supported | CorelDraw, PhotoShop, AutoCAD |
| Laser Output Control | 1-100% software setting |
| Highest Scanning Precision | 2500DPI |
| Resolution ratio | <0.01mm |
| Location precision | <0.01mm |
| Working temperature | 5°c -40 °c |
| Operating humidity | 5%-95%(without condensed water) |
| Equipment Dimension | 1050mm*750mm*970mm |
| Net Weight | 400kg |
| Optional parts | Up-down worktable, Red light pointer, Auto focus, Rotary device |
