Quick Details
-
Dimension(L*W*H):
-
1550*1150*1520mm
-
Weight:
-
2000 KG
-
Material:
-
stainless steel, metal
-
Material sheet stamping:
-
sheet 0.8-1.5mm
-
Billet size (sheets):
-
1250 mm x 2500 mm
-
Depth footprint:
-
50 microns = 1/20 mm = 0,05 mm
-
Speed stamping:
-
not less than 3 metres per minute
-
Roller type:
-
a variety of flower design
-
Type of stamping:
-
unilateral model rolling
-
Color:
-
as requirement
Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sussman
-
Dimension(L*W*H):
-
1550*1150*1520mm
-
Weight:
-
2000 KG
-
Material:
-
stainless steel, metal
-
Material sheet stamping:
-
sheet 0.8-1.5mm
-
Billet size (sheets):
-
1250 mm x 2500 mm
-
Depth footprint:
-
50 microns = 1/20 mm = 0,05 mm
-
Speed stamping:
-
not less than 3 metres per minute
-

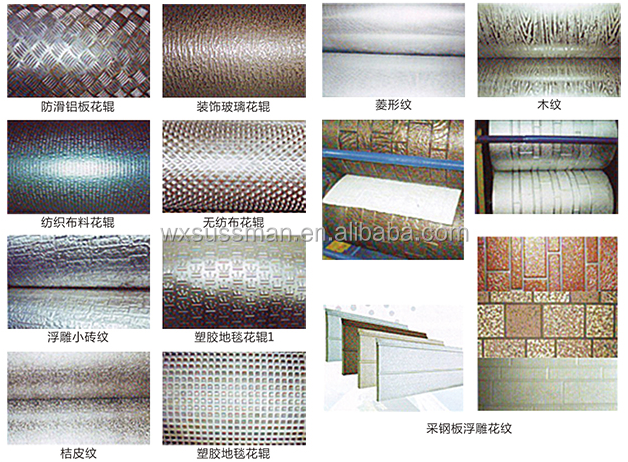

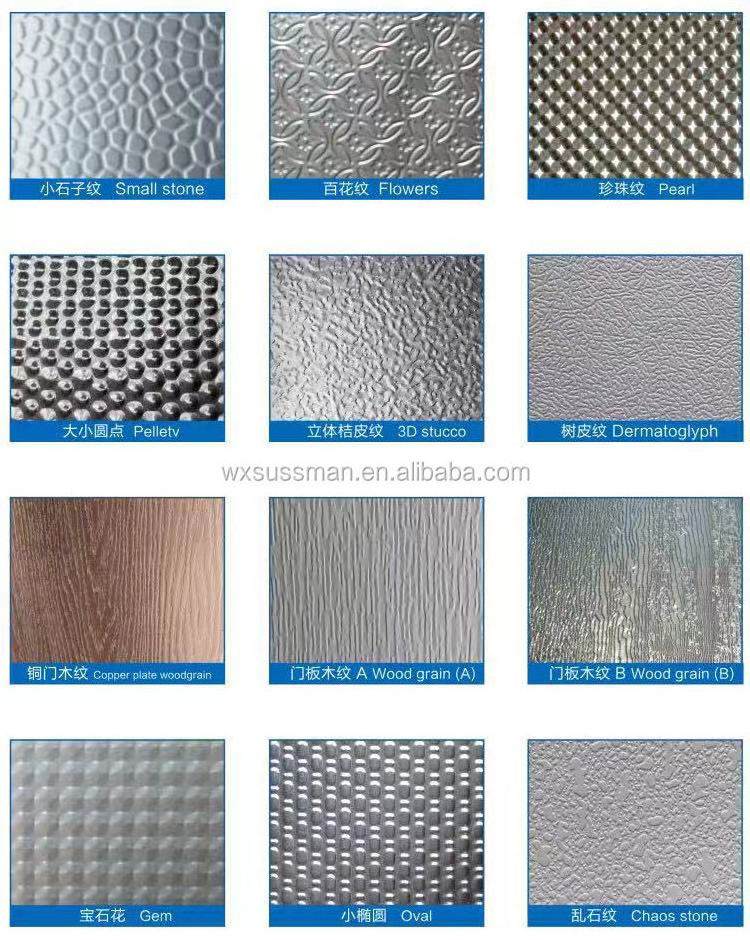

Roller type:
-
a variety of flower design
-
Type of stamping:
-
unilateral model rolling
-
Color:
-
as requirement
Product Description

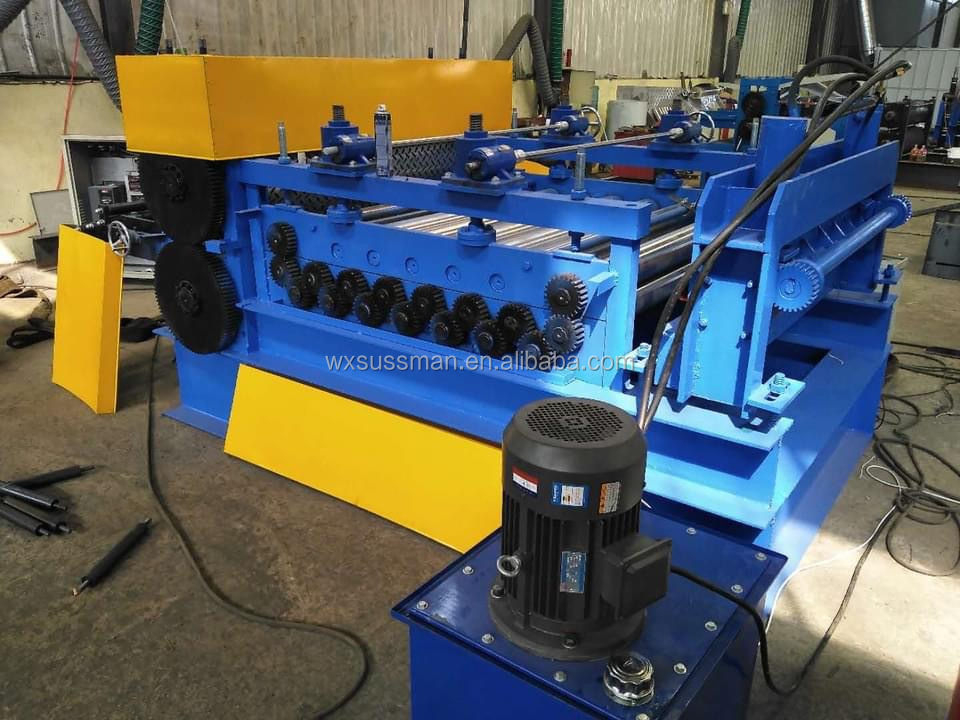

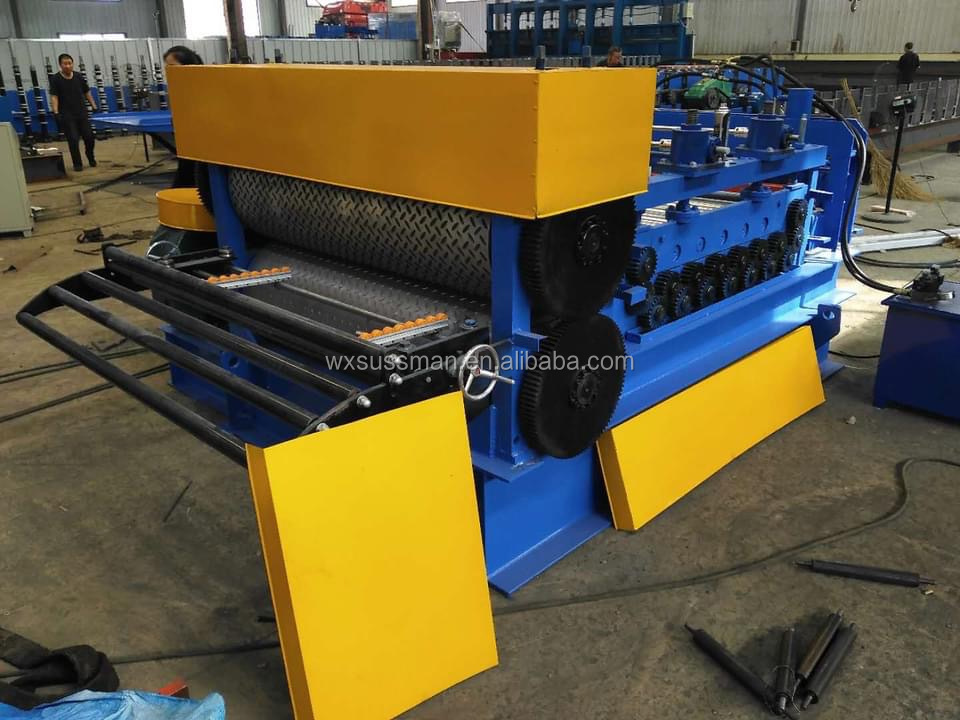

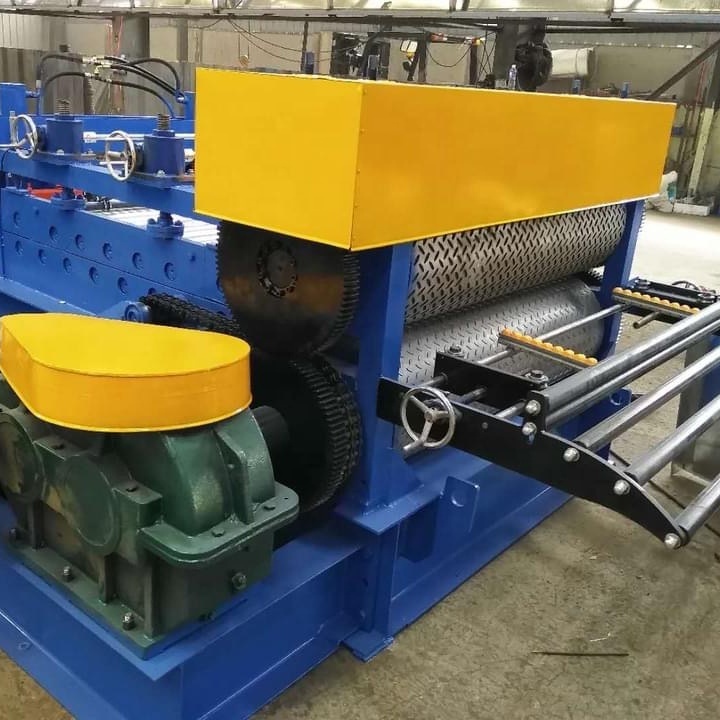

Embossing machine spefication
Our company specialized in designing and making metal sheet embossing machinery,there are many series of steel embossing machine which are suitable to you.
Our company specialized in designing and making metal sheet embossing machinery,there are many series of steel embossing machine which are suitable to you.
|
Model
|
S1000
|
S1400
|
S1600
|
S1900
|
|
Overall size(mm)
|
2900*1200*1500
|
3300*1200*1500
|
3500*1200*1500
|
3800*1200*1500
|
|
Roller size
|
φ350*1000mm
|
φ380*1400mm
|
φ400*1600mm
|
φ450*1900mm
|
|
Material of roller
|
42CrMo
|
42CrMo
|
42CrMo
|
42CrMo
|
|
Roller hardness
|
HRC55-58
|
HRC55-58
|
HRC55-58
|
HRC55-58
|
|
Way of embossing
|
Both up and down rollers embossing
|
Both up and down rollers embossing
|
Both up and down rollers embossing
|
Both up and down rollers embossing
|
|
Embossing regulation
|
By screw
|
By screw
|
By screw
|
By screw
|
|
Motor power(KW)
|
7.5
|
11
|
15
|
15
|
|
Line speed
|
0-18m/min
|
0-30m/min
|
0-40m/min
|
0-45m/min
|
Maintance and the service of the machine
Daily maintenance with meticulous care plays an important part in extension the equipments’ operation time and the quality of rolling plank. Therefore, please do the following things in your daily
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
1.The hydraulic tank must be filled with 32# or 46# hydraulic oil before using. The amount of oil is subject to the oil mark
2. Add and daub lube often to the outside parts. (Such as driving chain,Scissors, gears, rollers, )
3. Wipe the surface dust of roller often and particularly work outside. If you do not use it for long time ,you should daub
machine and lube in the roller surface and you need clean it when you use next time.
4. If the equipment does not use for long time, you should use plastics cloth or other articles to cover it and notice to avoid
rain and damp, especially electrical controlling box
5. Cutting device should add lube to the places where need lube to the request
6. Usually look into hydraulic station and the oil quantity of deceleration machine, you should add in time when oil quantity
shortage
7. Electrical components should be guaranteed to work in a dry environment, such as damp. Rain should continue to work after drying.
