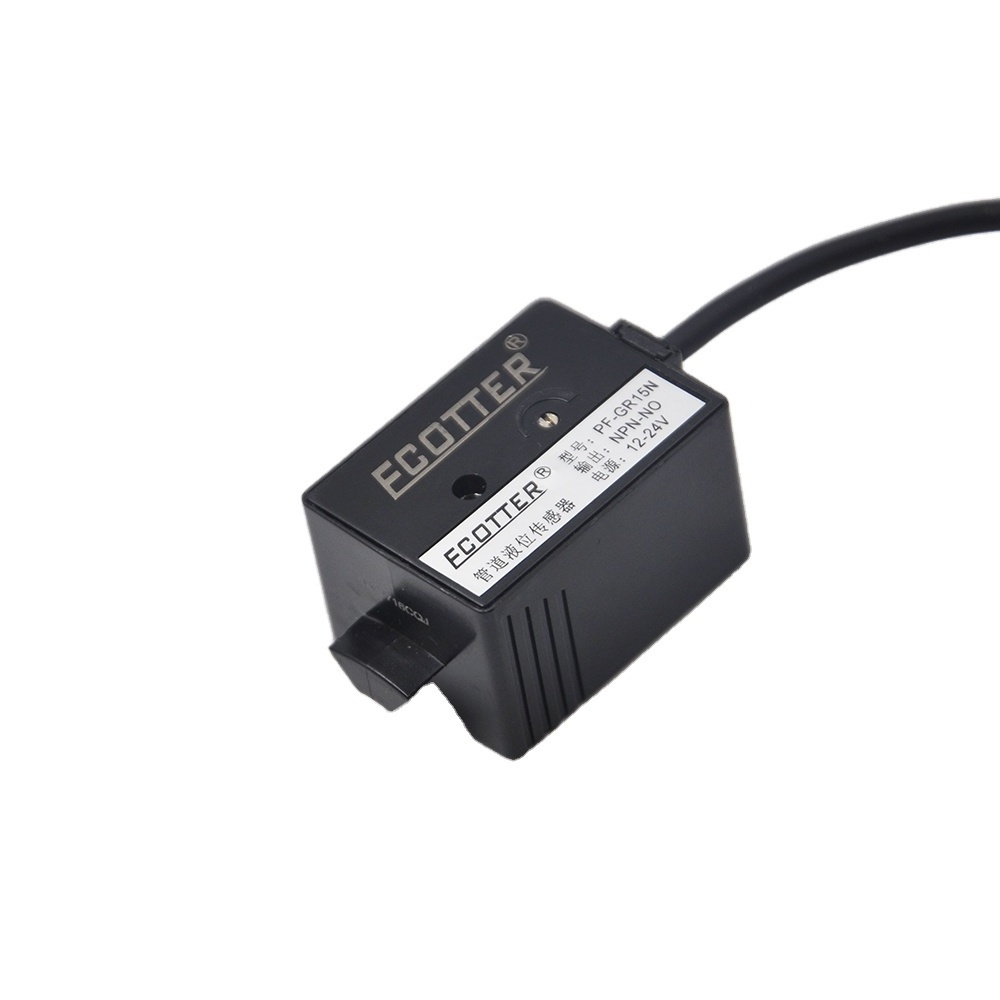

ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch
ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch
ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch
ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch
ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch
ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch
ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch
ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch

ECOTTER PF-GR15/30 Pipe Water Level Sensor Capacitive Opaque Pipe Water Level Detector Level Control Switch

FOB Reference Price: Get Latest Price
≥1 Pieces
US $24
≥200 Pieces
US $21
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Mounting Type:
Ties fixed
Description:
Capacitor level sensor, Capacitor level sensor
Manufacturing Date Code:
20230627
Model Number:
PF-GR15/30
Place of Origin:
Guangdong, China
Brand Name:
ECOTTER
Theory:
Capacitance principle, Capacitance Sensor
Output:
Switching Output, Switching Transducer
Usage:
Level Sensor
Product name:
Capacitive Pipe Level Sensor
Warranty:
12 Months
Size:
43x24x20mm
Color:
Black
Working Voltage:
12-24V
Housing material:
PC engineering plastics

Quick Details

Use:
automation
Series:
PF-GR15/30
Features:
not have
Mounting Type:
Ties fixed
Description:
Capacitor level sensor, Capacitor level sensor
Manufacturing Date Code:
20230627
Model Number:
PF-GR15/30
Place of Origin:
Guangdong, China
Brand Name:
ECOTTER
Theory:
Capacitance principle, Capacitance Sensor
Output:
Switching Output, Switching Transducer
Usage:
Level Sensor
Product name:
Capacitive Pipe Level Sensor
Warranty:
12 Months
Size:
43x24x20mm
Color:
Black
Working Voltage:
12-24V
Housing material:
PC engineering plastics
Detailed Image
Product Description
Technical parameters
Model/Type
PF-GR15N
PF-GR15P
PF-GR30N
PF-GR30P
PF-GR15NA
PF-GR15PA
PF-GR30NA
PF-GR30PA
Range
13mm
26mm
Installation method
Non-embedding
Connection method
3-core cable diameter 3.2mm
voltage
12-24VDC
Control output
NPN.NO/NC
PNP.NO/NC
NPN.NO/NC
PNP.NO/NC
Sensitivity adjustment
Multi-turn adjustable
Maximum output current
100mA
Current consumption
<8mA

Leakage current
<0.1mA
Residual voltage
<1.5VDC
Switching frequency
50Hz
reverse protection
equipment

Short circuit protection
equipment
Hysteresis
10%
Ambient temp/humidity
-10℃~55℃;35%~85%RH
IP Protection Category
IP67
Size
43X24X20mm
33X34X20mm
Housing material
PC engineering plastics
Applicable pipeline
Outer diameter: 6-13mm; wall thickness <2mm
Applicable pipe material
Non-metallic materials such as plastics, glass, and ceramics
