Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-V1000
-
Focal Length:
-
/
-
Wavelength Range:
-
325-1000nm, 325-1000nm
-
Material:
-
/
-
Product name:
-
spectrophotometer
-
Model:
-
BK-V1000
-
Optical system:
-
Single Beam, Grating1200 lines/mm
-
Spectral Bandwidth:
-
4nm
-
Wavelength Accuracy:
-
±1.8nm
-
Wavelength Repeatability:
-
≤0.5nm
-
Stray Light:
-
≤0.1 % T @ 360nm; 220nm
-
Stability:
-
± 0.001A / h @ 500nm
-
Noise:
-
± 0.001A
-
Power:
-
/
-
Voltage:
-
220
Quick Details
-
Warranty:
-
1 year
-
Size:
-
560*430*320
-
Weight:
-
11.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Model Number:
-
BK-V1000
-
Focal Length:
-
/
-
Wavelength Range:
-
325-1000nm, 325-1000nm
-
Material:
-
/
-
Product name:
-
spectrophotometer
-
Model:
-
BK-V1000
-
Optical system:
-
Single Beam, Grating1200 lines/mm
-
Spectral Bandwidth:
-
4nm
-
Wavelength Accuracy:
-
±1.8nm
-
Wavelength Repeatability:
-
≤0.5nm
-
Stray Light:
-
≤0.1 % T @ 360nm; 220nm
-
Stability:
-
± 0.001A / h @ 500nm
-
Noise:
-
± 0.001A
-
Power:
-
/
-
Voltage:
-
220
Product Description

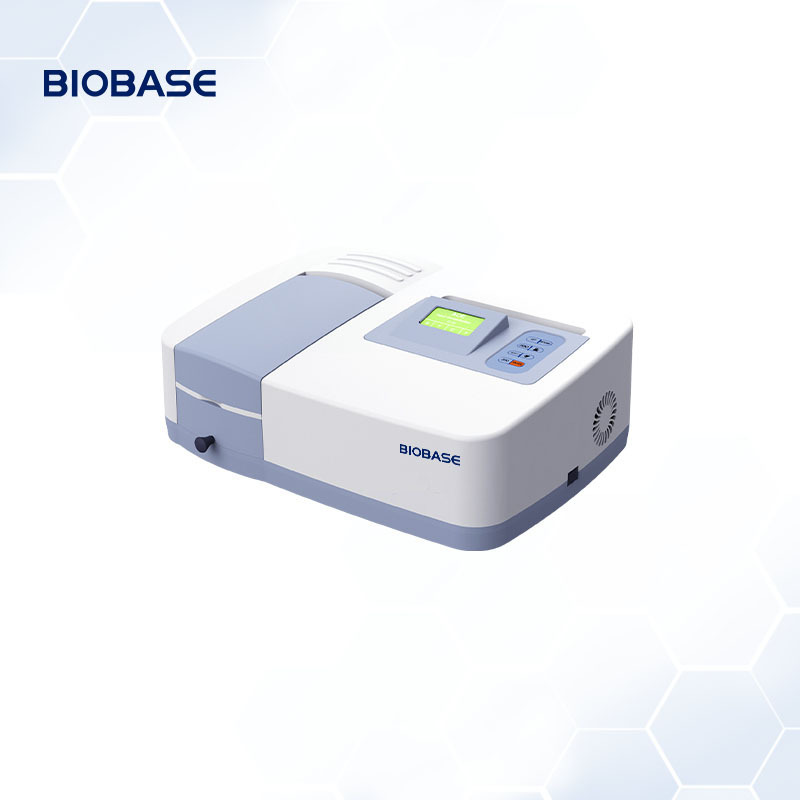

Spectrophotometer
Product Paramenters
|
Model
|
BK-UV1000
|
BK-V1000
|
BK-UV1200
|
BK-V1200
|
|||
|
Optical System
|
Single Beam, Grating1200 lines/mm
|
|
|
|
|||
|
Wavelength Range
|
200-1020nm
|
325-1000nm
|
200-1020nm
|
320-1020nm
|
|||
|
Spectral Bandwidth
|
4nm
|
|
|
|
|||
|
Wavelength Accuracy
|
±1.8nm
|
|
|
|
|||
|
Wavelength Repeatability
|
≤0.5nm
|
|
|
|
|||
|
Photometric Accuracy
|
± 0.002A (0-0.5Abs), ± 0.004A (0.5-1.0Abs), ± 0.5% T (0-100% T)
|
|
|
|
|||
|
Photometric Repeatability
|
0.001Abs (0-0.5Abs), 0.002Abs (0.5-1.0Abs),≤0.2% T (0-100% T)
|
|
|
|
|||
|
Stray Light
|
≤0.1 % T @ 360nm; 220nm
|
|
≤0.2% T @ 360nm
|
|
|||
|
Stability
|
± 0.001A / h @ 500nm
|
|
|
|
|||
|
Noise
|
± 0.001A
|
|
|
|
|||
|
Display
|
LCD
|
|
|
|
|||
|
Photometric Mode
|
T, A, C, E
|
|
|
|
|||
|
Photometric Range
|
0-200%T,-0.301-3.0A
|
|
|
|
|||
|
Detector
|
Silicon Photodiode
|
|
|
|
|||
|
Light Source
|
Deuterium Lamp, Tungsten Lamp
|
|
|
|
|||
|
Input
|
Membrane Keypad
|
|
|
|
|||
|
Output
|
Parallel Print,USB1.0
|
|
|
|
|||
|
Optional Accessories
|
Solid Sample Holder, Micro Cell Holder,10-100mm Cell Holder,PC software
|
|
|
|
|||
|
Packing Size(W*D*H)(mm)
|
560*430*320
|
560*430*320
|
560*430*320
|
560*430*320
|
|||
|
Gross Weight(kg)
|
12
|
11.5
|
12
|
11.5
|
|||
Features
●Imported & Environmental Deuteriumlamp, preventing from Ozone inhalation
●High-class grating with wholly hermetic light path design, ensures the super low stray light
●Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp
●Socket-TypeDeuterium lamp and Tungsten lamp
●Wavelengthcalibration, wavelength setting, change light source and dark current calibration automatically
●Si02 coating opticalmirror, reduce theinfluence from outside
●Agriculture, Geology, Metallurgy and Environment etc. fields
Basic Fuctions:

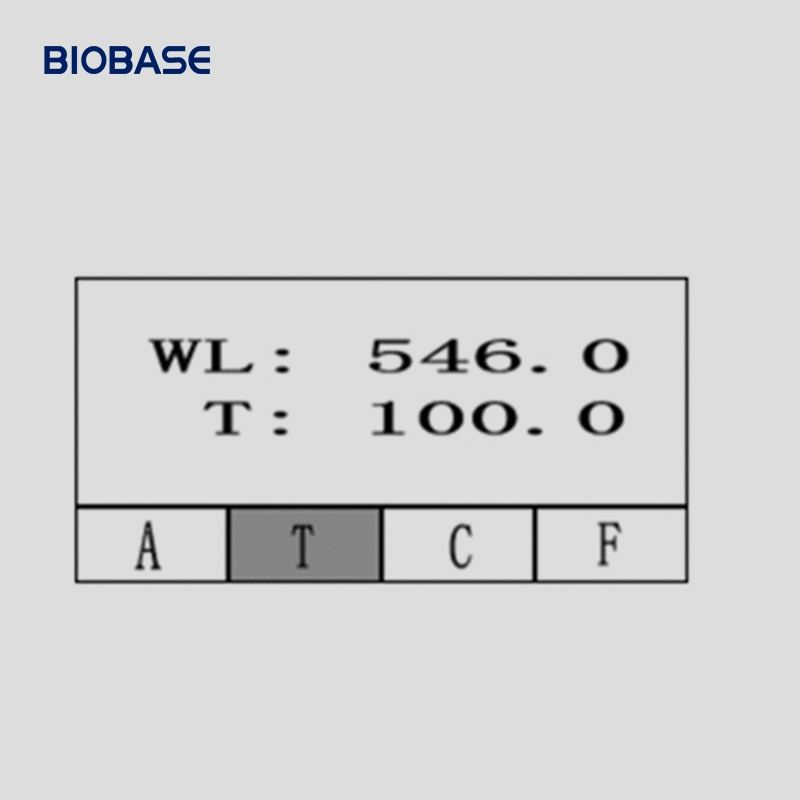

1. Photometry
Test Abs., Transmittance by fixed wavelength
2. Quantitative
a. C Mode: EstablishC=K*A curve, test sample concentration
b. F Mode: EstablishA=K1*C+K0, test sample concentration
c. Display and save curve, test data (V-1200).
●High-class grating with wholly hermetic light path design, ensures the super low stray light
●Real-time monitoring the lifetime of Deuterium lamp and Tungsten lamp
●Socket-TypeDeuterium lamp and Tungsten lamp
●Wavelengthcalibration, wavelength setting, change light source and dark current calibration automatically
●Si02 coating opticalmirror, reduce theinfluence from outside
●Agriculture, Geology, Metallurgy and Environment etc. fields
Basic Fuctions:
1. Photometry
Test Abs., Transmittance by fixed wavelength
2. Quantitative
a. C Mode: EstablishC=K*A curve, test sample concentration
b. F Mode: EstablishA=K1*C+K0, test sample concentration
c. Display and save curve, test data (V-1200).

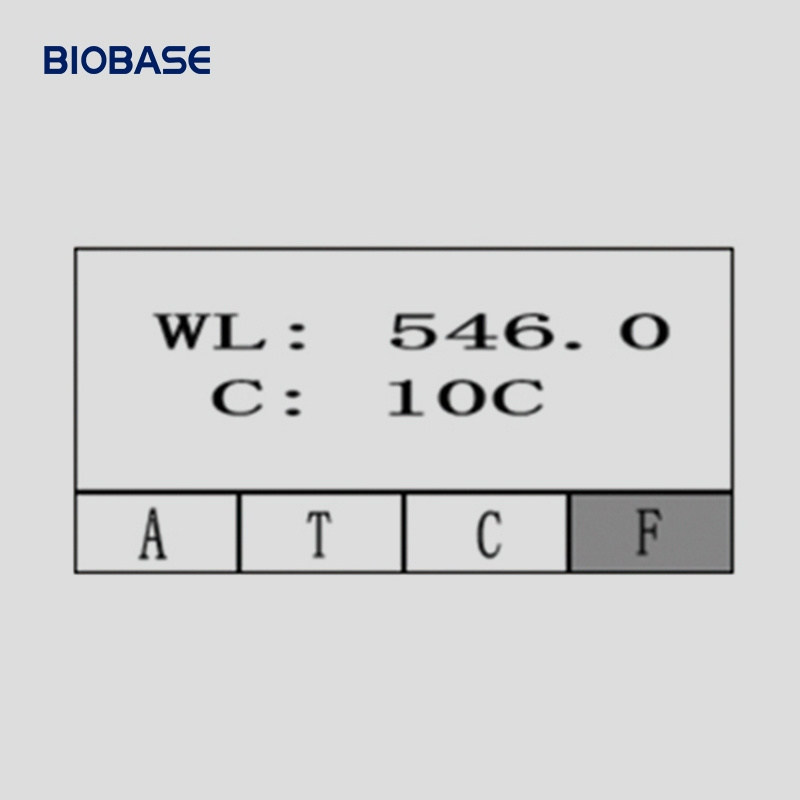

Photometry Mode Con. Test C=K*A+B
