- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Acrel
-
Model Number:
-

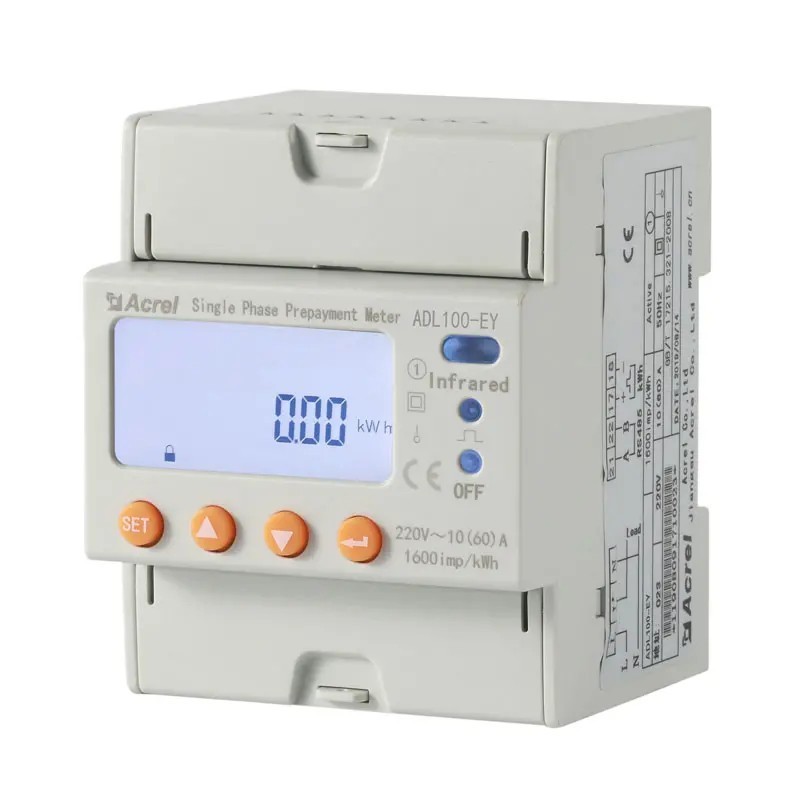

ADL100-EYRF/CF
-
Accuracy Class:
-
1 class
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25℃~55℃
-
Dimensions:
-
72mm*88 mm*70mm
-
Current:
-
10(60)A
-
Communication:
-
RS485 Modbus-RTU
-
Recharge:
-
Radio frequency card recharge
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
000000.00~999999.99kWh
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Acrel
-
Model Number:
-
ADL100-EYRF/CF
-
Accuracy Class:
-
1 class
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25℃~55℃
-
Dimensions:
-
72mm*88 mm*70mm
-
Current:
-
10(60)A
-
Communication:
-
RS485 Modbus-RTU
-
Recharge:
-
Radio frequency card recharge
Parameters
|
Rated voltage
|
|
220V
|
|
|
|||
|
Voltage reference frequency
|
|
50Hz
|
|
|
|||
|
Voltage consumption
|
|
<4VA(Each phase)
|
|
|
|||
|
Input current
|
|
10(60)A
|
|
|
|||
|
Starting current
|
|
0.004 Ib
|
|
|
|||
|
Current consumption
|
|
<4VA
|
|
|
|||
|
Accuracy
|
|
Class 1
|
|
|
|||
|
Clock accuracy
|
|
≤0.5s/d
|
|
|
|||
|
Active pulse
|
Pulse width
|
80±20ms
|
|
|
|||
|
|
Pulse constant
|
1600imp/kwh
|
|
|
|||
|
Communication
|
Interface
|
RS485
|
|
|
|||
|
|
Connection mode
|
Shielded twisted pair condutors
|
|
|
|||
|
|
Protocol
|
MODBUS-RTU
|
|
|
|||
|
Dimensions(Length * Width* Height)
|
|
72mm*88mm*70mm
|
|
|
|||
|
Temperature
|
Operature temperature
|
-25℃~55℃
|
|
|
|||
|
|
Storage temperature
|
-40℃~70℃
|
|
|
|||
|
Relative
|
|
≤95%（No condensation）
|
|
|
|||
|
Altitude
|
|
<2000m
|
|
|
|||
