Quick Details
-
Model Number:
-
CS-PT1200
-
Material:
-
304 SS
-
Accuracy:
-
±0.5 % F.S, ±0.5 % F.S
-
Pressure range:
-
0...50~600bar
-
Output:
-
4-20mA
-
Operating temperature:
-
-20~85℃
-
Storage temperature:
-
-40℃~105℃
-
Overload pressure:
-
≥ 150%F.S
-
Burst pressure:
-
≥ 200%F.S
-
Pressure connection:
-
G1/4, 7/16-20UNF-2B female, 7/16-20UNF-2A male, NPT1/4, G1/2
-
Electrical Connection:
-
DIN43650C, Packard, M12x1, Cable outlet, Sheathed cable outlet
-
Ingress protection:
-
≥ IP65
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
Chinastar
-
Model Number:
-
CS-PT1200
-
Material:
-
304 SS
-
Accuracy:
-
±0.5 % F.S, ±0.5 % F.S
-
Pressure range:
-
0...50~600bar
-
Output:
-
4-20mA
-
Operating temperature:
-
-20~85℃
-
Storage temperature:
-
-40℃~105℃
-
Overload pressure:
-
≥ 150%F.S
-
Burst pressure:
-
≥ 200%F.S
-
Pressure connection:
-
G1/4, 7/16-20UNF-2B female, 7/16-20UNF-2A male, NPT1/4, G1/2
-
Electrical Connection:
-
DIN43650C, Packard, M12x1, Cable outlet, Sheathed cable outlet
-
Ingress protection:
-
≥ IP65
Product Description

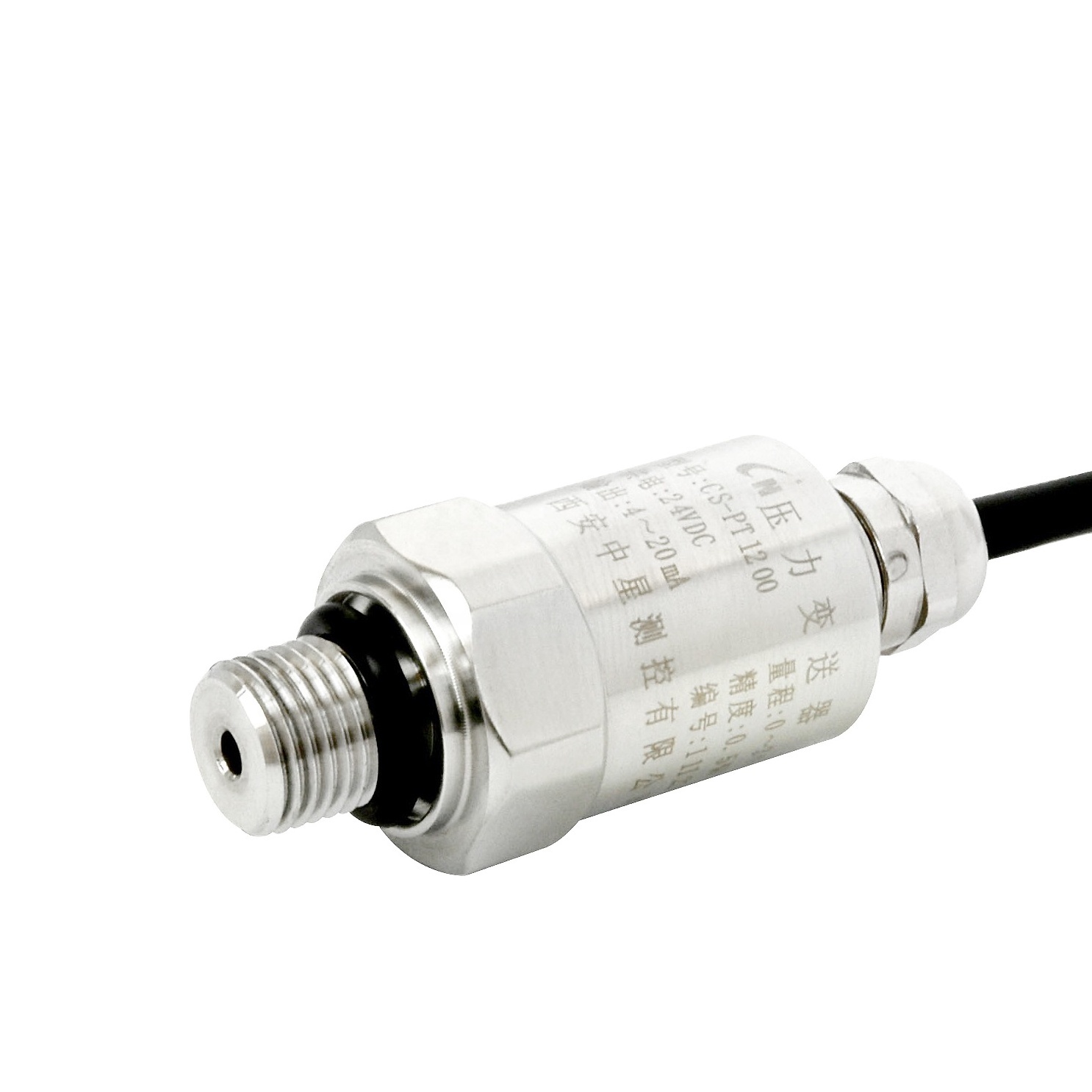

Designed for general industrial application, CS-PT1200 series pressure transmitters feature compact structure, stable quality and high cost performance.
CE and RoHS certification enables extensive use of CS-PT1200 series pressure transmitters all over the world. We can supply you in short term products with different pressure units and pressure connections to meet your specific applications.
Product Paramenters
|
Output Signal
|
0.5~4.5V 4~20mA
|
|
Power Supply
|
5VDC 10VDC~30VDC
|
|
Pressure Range
|
0~600bar
|
|
Accuracy
|
0.5%F.S
|
|
Operating Temperature
|
-40~100℃
|
|
Long-term Stability
|
± 0.5% FS/ year
|
|
Overload Pressure
|
≥150%F.S
|
|
Burst Pressure
|
≥200%F.S
|
