Quick Details
-
Brand Name:
-
null
-
Model Number:
-
R640/R740/R340
-
Place of Origin:
-
Beijing, China
-
Product Name:
-

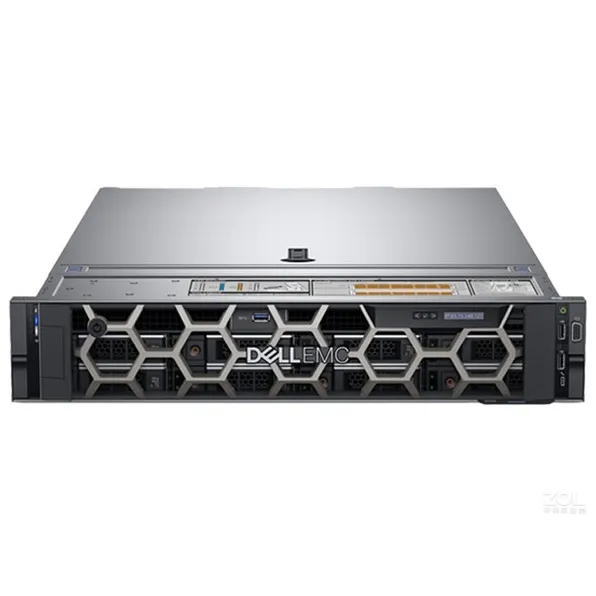

Server Poweredge R740 Rack Server Price 2U Server chassis
-
CPU:
-
Xeon Gold 6226R
-
Memory:
-
2GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8
-
RAID controller:
-
C7, Unconfigured RAID for HDDs or SSDs
-
Form Factor:
-
2U Rack Server
-
Hard Drive:
-
1.2T SAS
-
Warranty:
-
3 Years
-
Power:
-
750w/1100W/Hot Swap Power
-
Raid:
-
H730/h750 Adapter LP
Quick Details
-
Type:
-
Rack
-
Processor Type:
-
Xeon Gold 6226R
-
Processor Main Frequency:
-
2.9G HZ
-
Brand Name:
-
null
-
Model Number:
-
R640/R740/R340
-
Place of Origin:
-
Beijing, China
-
Product Name:
-
Server Poweredge R740 Rack Server Price 2U Server chassis
-
CPU:
-
Xeon Gold 6226R
-
Memory:
-
2GB RDIMM, 3200MT/s, Dual Rank, 16Gb BASE x8
-
RAID controller:
-
C7, Unconfigured RAID for HDDs or SSDs
-
Form Factor:
-
2U Rack Server
-
Hard Drive:
-
1.2T SAS
-
Warranty:
-
3 Years
-
Power:
-
750w/1100W/Hot Swap Power
-
Raid:
-
H730/h750 Adapter LP
Product Description
- Simplify and accelerate VMware vSAN™ deployments with validated, pre-bundled and tailored Ready Nodes.
- Drive demanding workloads with 2nd Generation Intel® Xeon® Scalable processors and Intel® Optane™ DC Persistent Memory.
- Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
- Free up storage space using internal M.2 SSDs optimized for boot.
|
Type
|
|
|
shape
|
2U rack serve
|
|
Processor
|
Up to two 2nd Generation Xeon® Scalable processors, up to 28 cores per processor
|
|
Memory
|
24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2933 MT/s, 3TB max
Up to 12 NVDIMM, 192 GB Max Up to 12 Intel® Optane™ persistent memory PMem, 6.14TB max, (7.68TB max with PMem + LRDIMM) Supports registered ECC DDR4 DIMMs only
|
|
Storage controllers
|
Internal Controllers: PERC H330, H730P, H740P, HBA330, H750, HBA350i External Controllers: H840, HBA355e, 12 Gbps SAS HBA Software RAID:S140 Boot Optimized Storage Subsystem (BOSS):HWRAID 2 x M.2 SSDs 240GB, 480GB Internal Dual SD Module |
|
Power Supplies
|
Titanium 750W, Platinum 495W, 750W, 750W 240VDC,2 1100W, 1100W 380VDC2 1600W, 2000W and 2400W, Gold 1100W -48VDC Hot plug power supplies with full redundancy Up to 6 h
|
|
Storage
|
|
|
Bezel
|
Optional LCD bezel or security bezel
|
|
Embedded Management
|
|
|
I/O & Ports
|
Network daughter card options 4 x 1GbE or 2 x 10GbE + 2 x 1GbE or 4 x 10GbE or 2 x 25GbE Front ports: 1 x Dedicated iDRAC Direct Micro-USB, 2 x USB 2.0, 1 x USB 3.0 (optional), 1 x VGA Rear ports: 1 x Dedicated iDRAC network port, 1 x Serial, 2 x USB 3.0, 1 x VGA Video card: 2 x VGA Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
|
OEM-ready version available
|
From bezel to BIOS to packaging, your servers can look and feel as if they were designed and built by you.
|
