Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HKT
-
Device registration:
-
ABP or OTAA
-
Configuration method:
-
Server or serial port
-
Induction distance:
-
≤8m
-
Power supply:
-
8000 mAh lithium battery
-
Operating temperature:
-
-20°C ~60°C
-
Working humidity:
-
≤90%(No condensation)
-
Frequency:
-
863~870MHz(433MHz,915MHz option)
-
Distance communication:
-
up to 5Km in open environment
Quick Details
-
Model Number:
-
PC-100
-
Application:
-
Number of people counting
-
Type:
-

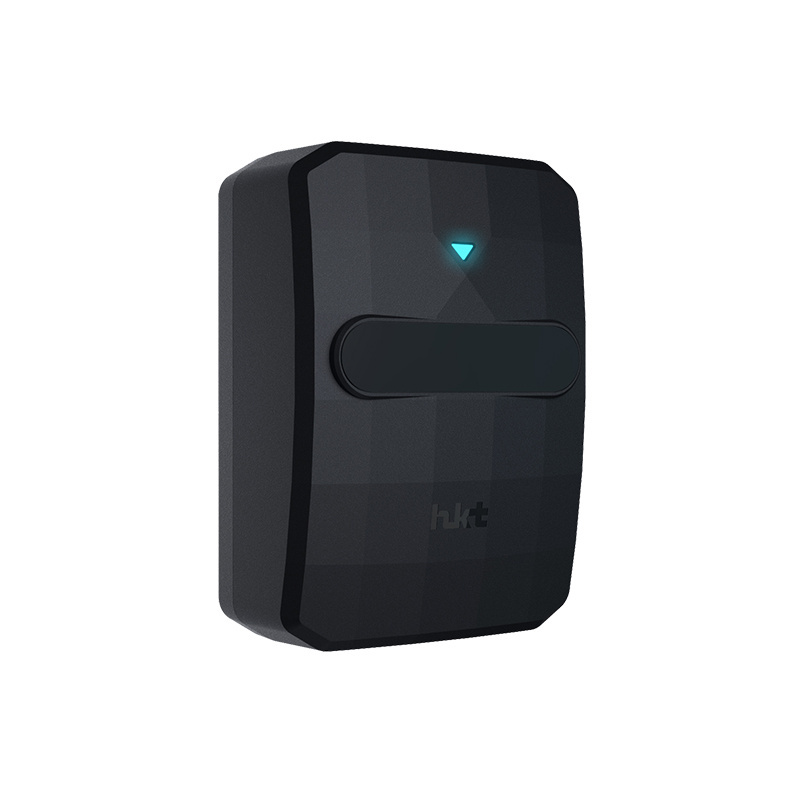

LoRaWAN People Counting Sensor
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
HKT
-
Device registration:
-
ABP or OTAA
-
Configuration method:
-
Server or serial port
-
Induction distance:
-
≤8m
-
Power supply:
-
8000 mAh lithium battery
-
Operating temperature:
-
-20°C ~60°C
-
Working humidity:
-
≤90%(No condensation)
-
Frequency:
-
863~870MHz(433MHz,915MHz option)
-
Distance communication:
-
up to 5Km in open environment
Product Description
Application
Feature
- Simple installation
- LoRaWAN communicatio n
- Battery-powered
- Bi-directional horizontal counting
- Infrared technology
- Display for the detection of infrared sources of interference
- Enhance noise immunity
- For entrances and passages up to 8m wide
Specification
| Communication protocol | LoRaWAN |
| Working frequency |
863~870MHz(
433MHz,915MHz option)
|
| Receive sensitivity |
-135±1dBm @SF=12
|
|
Access
mode
|
OTAA/ABP Class A
|
|
Configuration
method
|
Server or serial port
|
|
Software Features
|
Anti-tamper alarm, low battery notification
|
|
Power supply
|
Transmitter: 1 4000 mAh ER18505 lithium battery
Receiver: 2 x 4000 mAh ER18505 lithium battery
|
|
Battery life
|
>1year(
30 data uploads/day)
|
|
Operating
temperature
|
-20°C ~60°C |
|
Working humidity
|
≤90% |
|
Size
|
Transmitter:87.5 × 62 × 35 mm
Receiver:87.5 × 62 × 35 mm
|
|
Installation
|
3M adhesive fixing or screw fixing |
|
LED light
|
4, 1 each in red, green, blue and orange |
|
Induction
distance
|
≤8m |
