Quick Details
-
Bore Size:
-
20/32/40/50mm
-
Fluid:
-
Air
-
Lubrication:
-
No Need
-
Working Temperature:
-
-10+70℃
-
Ensured Pressure Resistance:
-
1.5MPa
-
Max. Pressure:
-
1.0MPa
-
Port Size:
-
RC(PT1/8)
-
Magnetic:
-
With or Without
-
Buffering:
-
Rubber Bumper
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
XCPC
-
Acting Type:
-
Double / Single Acting
-
Bore Size:
-
20/32/40/50mm
-
Fluid:
-
Air
-
Lubrication:
-
No Need
-
Working Temperature:
-
-10+70℃
-
Ensured Pressure Resistance:
-
1.5MPa
-
Max. Pressure:
-
1.0MPa
-
Port Size:
-
RC(PT1/8)
-
Magnetic:
-
With or Without
-
Buffering:
-
Rubber Bumper
Product Overview
Product Description

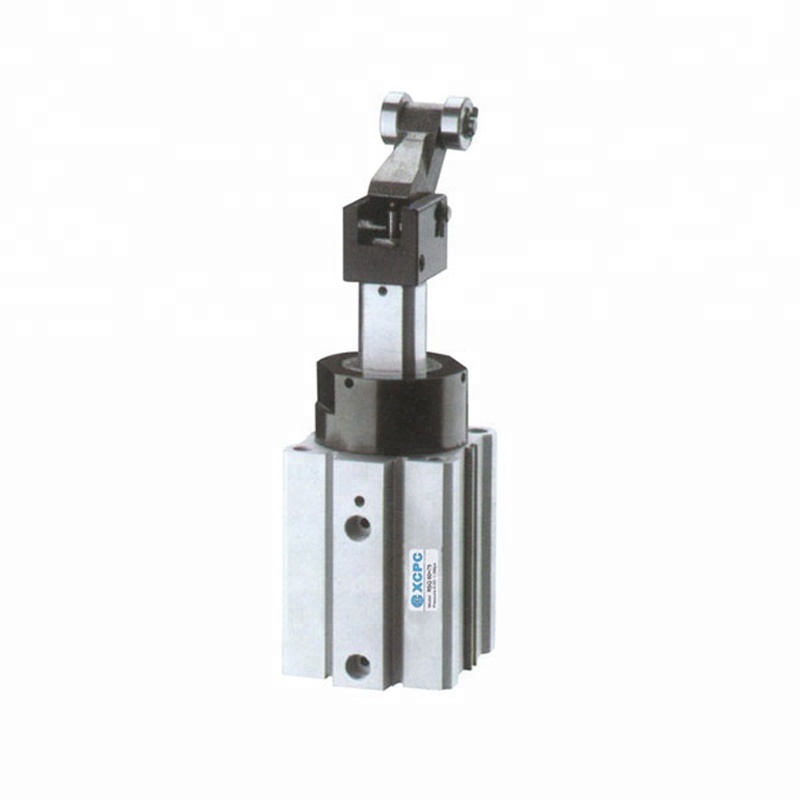

| Product Name | RSQ Series Pneumatic Stopper Cylinder |
| Bore (mm) | 20/32/40/50 |
| Motion Pattern | Double Acting (With Spring Loaded) / Single Acting (Spring Extend) |
| Fluid | Air |
| Compression Pressure | 1.5MPa |
| Max. Operating Pressure | 1.0MPa |
| Ambient Temperature | -10~70℃ |
| Buffering | Rubber Bumper |
| Mounting | Through-hole, Both ends tapped common |
| Port Size | RC(PT1/8) |
| Model & Standard Stroke |
| Overall Dimensions |
