Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Stepmores
-
Voltage:
-
AC220V±10%/50-60HZ
-
Dimension(L*W*H):
-
1370*1320*1520mm
-
Power (kW):
-
6
-
Weight (KG):
-
300
-
Product name:
-
6090 Atc Cnc Router
-
Working area:
-
600X900X200mm
-
Spindle:
-
2.2kw Water Cooling Spindle
-
Control system:
-
Mach3
-
Transmission:
-
Ball Screw
-
Motor:
-
easy servo Motor
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Guide rail:
-
Linear Square Guide Rail
-
Waranty:
-
3 years
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
600×900
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
900 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
2.2
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Stepmores
-
Voltage:
-
AC220V±10%/50-60HZ
-
Dimension(L*W*H):
-
1370*1320*1520mm
-
Power (kW):
-
6
-
Weight (KG):
-
300
-
Product name:
-
6090 Atc Cnc Router
-
Working area:
-
600X900X200mm
-
Spindle:
-
2.2kw Water Cooling Spindle
-
Control system:
-
Mach3
-
Transmission:
-
Ball Screw
-
Motor:
-
easy servo Motor
-
Software:
-
Ucancam / ArtCam/TYPE3
-
Guide rail:
-
Linear Square Guide Rail
-
Waranty:
-
3 years
-
Certification:
-
CE

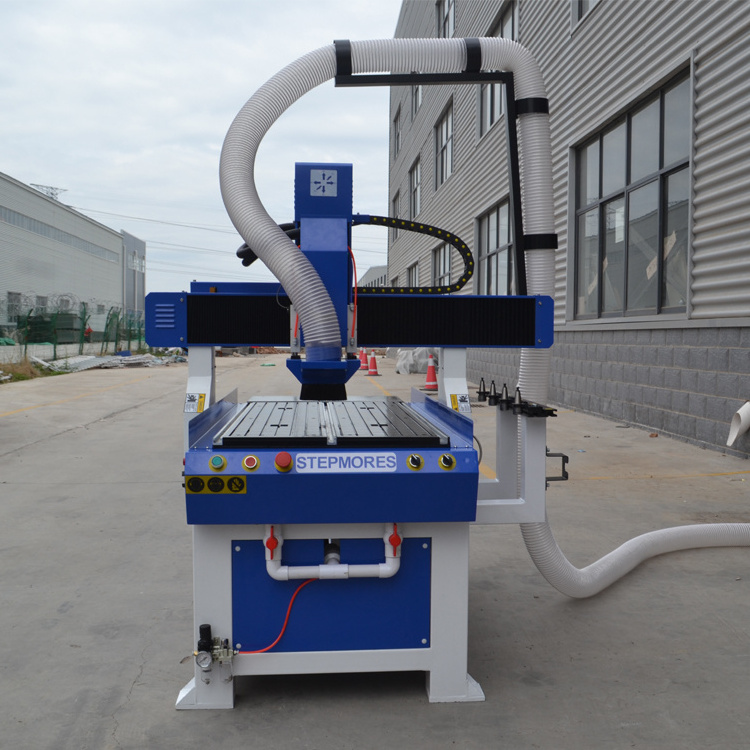

Hot sale 6090 4tools ATC 2.2KW spindle Mach3 system Cnc router woodworking machine
Product Describtion
| Machine model | SM6090 cnc router |
| Working area | 600x900x200 mm |
| Feeding height | 200 mm |
| Spindle | 2.2kw water cooled |
| Spindle speed | 0-24000RPM |
| Motor driver | Stepper motor and stepper driver |
| Travel speed | 15000mm/min |
| Working speed | 12000mm/min |
| Working table | Vacuum table with vacuum pump |
| Guide rail | Taiwan square linear guide rail |
| Transmission | TBI ball screw |
| Control system | Mach3 (usb port) |
| Tool sensor | Included |
| Command code | G code |
| Working voltage | AC220V, 50/60Hz |
| Options | 1) servo motor drive |
| 2) DSP control system | |
| 3) 4th axis | |
| 4) tool bit cooling system |
