Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer
Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer
Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer
Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer
Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer
Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer
Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer
Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer

Zero-phase Split Core Zero Flux 800a Over Lord 5 AMPS Clamp Sense AC DC Current Sensor Transformer

FOB Reference Price: Get Latest Price
≥6 Pieces
US $9.48
≥501 Pieces
US $7.95
≥1000 Pieces
US $6.25
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Mounting Type:
Crystal head
Description:
Split core, Series Split-core Cable Type Current Transformer
Model Number:
TRFK-36A-20230330-3
Place of Origin:
Jiangsu, China
Brand Name:
TR
Theory:
electromagnetic induction
Output:
50mA-5A, 0-200mA;0-5A; 0-7V
Voltage level:
0.4/0.66/ 0.72kV
Primary current:
0~1500A
Rated power:
0-5VA
Rated output:
0-200mA;0-5A;0-7V
Accuracy:
0.2%-1.0%
Size:
400*265*235mm
Winding bobbin:
PBT
Relative humidity:
≤90%
Power frequency withstand voltage:
3KV/min

Quick Details

Usage:
Current measurement
Series:
current sensor
Features:
Open and close type
Mounting Type:
Crystal head
Description:
Split core, Series Split-core Cable Type Current Transformer
Model Number:
TRFK-36A-20230330-3
Place of Origin:
Jiangsu, China
Brand Name:
TR
Theory:
electromagnetic induction
Output:
50mA-5A, 0-200mA;0-5A; 0-7V
Voltage level:
0.4/0.66/ 0.72kV
Primary current:
0~1500A
Rated power:
0-5VA
Rated output:
0-200mA;0-5A;0-7V
Accuracy:
0.2%-1.0%
Size:
400*265*235mm
Winding bobbin:
PBT
Relative humidity:
≤90%
Power frequency withstand voltage:
3KV/min
Related products
Series Split-core Cable Type Current sensor
Performance
Operation temperature
-40℃～+70℃
Relative humidity
≤90%
Voltage level
0.4/0.66/0.72KV
Linear range
5%～120%
Rated input current
0～1500A
Rated frequency
50/60Hz
Accuracy class
0.5、1.0
Dielectric strength
1000MΩ/500V/min
Winding bobbin
PBT
Opening-closing structure
snap
Rated capacity
0～5VA
Power frequency withstand voltage
3KV/min
Shell
PA/PC Flammability rating 94-V0
Output method
PVC sheathed wire/RJ12 crystal end Head/PS/2 round head male connector
Core material
Silicon steel/manganese zinc ferrite
Construction plan
Nylon cable ties bundled and fixed cables

Product characteristics
1. The buckle structure is fixed and the stability is good;
2. According to the cable specifications used in the main circuit, there are various core hole diameters corresponding to it ;
3. Wide quantity limit and strong anti-saturation ability .Rated primary current range :1~1000A,rated secondary current range :0~5 A
4. Provide a variety of combined output methods: when outputting ampere-level current, you can use PVC sheathed wire terminals alone
5. Adopt high magnetic permeability core, good linearity and high sensitively .


Product description

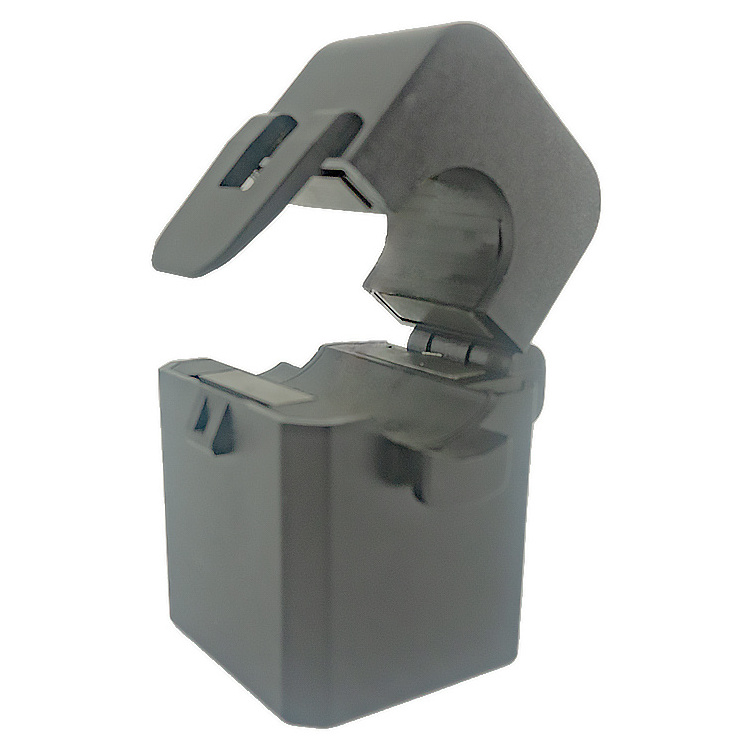

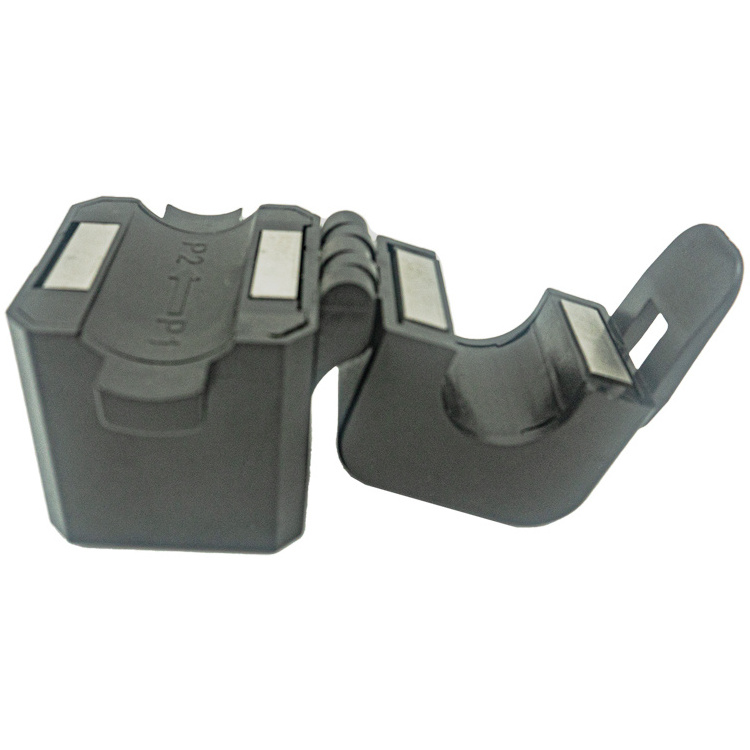

TR-A series open and close current transxformer,180 degrees open and close freely, indoor use. It can be quickly installed and disassembled in the state of no power failure and continuous line and the operation is simple ,Through the principle of
electromagnetic induction ,the measured source is isolated from personnel and equipment ,effectively ensuring the safety of
personnel and property. This series of products has a variety of apertures and specifications to meet different use and
installation needs.
Application
Rural power grid reconstruction project, online environmental monitoring ,smart fire-fighting power consumption, low-voltage power distribution system, smart power consumption system, electricity measurement ,power quality analysis and electrical equipment signal collection ,lighting equipment such as power installations, small current grounding systems, etc.
Shape and installation dimensions

Product model

rated input

rated output

accuracy class
Dimensions(mm)
D
L
W
H
TRFK-10A
0～75A
0～50mA （0～1.0V）



0.2
0.3
0.5
0.5s
9
34.5
37.5
45
TRFK-16A
0～150A
0～100mA （0～2.5V)
15
40.5
42.5
52
TRFK-24A
0～250A
0～100mA （0～5.0V)
22.5
54
47
71
TRSK-36-1A
0～300A
0～100mA （0～7.0V)
35
61
53
81
TRSK-36A
0～500A
0～100mA （0～7.0V)
35
66
53
87
TRSK-50-1A
0～600A
0～100mA （0～7.0V)
49
81
59
107.5
TRSK-50A
0～800A
0～100mA （0～7.0V)
50
88
59
114
TRSK-10A
5～100A
0～200mA （0.5VA）




0.5
0.5s
1.0
3.0
9
34.5
37.5
45
TRFK-16A
5～150A
0～1A （0.5VA 1VA）
15
40.5
42.5
52
TRFK-24A
10～300A
0～5A （0.5VA 2.5VA）
22.5
54
47
71
TRSK-36-1A
10～500A
0～5A （0.5VA 2.5VA）
35
61
53
81
TRSK-36A
10～600A
0～5A （0.5VA 3.75VA）
35
66
53
87
TRSK-50-1A
10～1000A
0～5A （0.5VA 3.75VA）
49
81
59
107.5
TRSK-50A
10～1500A
0～5A （0.5VA 5VA）
50
88
59
114
