Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingpu
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3270*1650*1000mm
-
Weight (KG):
-
1500
-
Working area:
-
1300*2500mm
-
X,Y Structure:
-
Rack and pinion; Taiwan Hiwin guide rail 20mm
-
Z Structure:
-
Ball screw 2510; Taiwan Hiwin guide rail 20mm
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
NC studio system/DSP system
-
Motor:
-
Stepper Motor/servo motor
-
Driver:
-
Leadshine860 Drive
-
Inverter:
-
Fuling Inverter
-
Weight:
-
N/W1500kgs; G/W1800kgs
-
Power:
-
3KW/4.5KW
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
6000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingpu
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3270*1650*1000mm
-
Weight (KG):
-
1500
-
Working area:
-
1300*2500mm
-
X,Y Structure:
-
Rack and pinion; Taiwan Hiwin guide rail 20mm
-
Z Structure:
-
Ball screw 2510; Taiwan Hiwin guide rail 20mm
-
Spindle:
-
Air Cooling Spindle
-
Control system:
-
NC studio system/DSP system
-
Motor:
-
Stepper Motor/servo motor
-
Driver:
-
Leadshine860 Drive
-
Inverter:
-
Fuling Inverter
-
Weight:
-
N/W1500kgs; G/W1800kgs
-
Power:
-
3KW/4.5KW

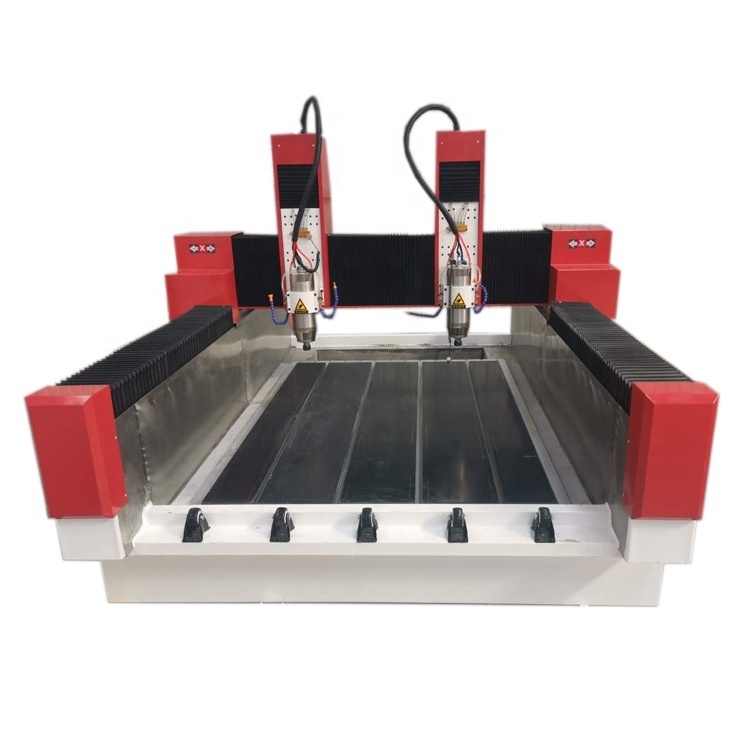

Jinan Mingpu CNC Machine 5 Axis Stoner CNC Router Hand Stone Carving 3d Machine
Product Description
| X,Y,Z working area | 1300*2500*200mm | |
| X,Y Structure | Rack and pinion; Taiwan Hiwin guide rail 20mm | |
| Z Structure | Ball screw 2510; Taiwan Hiwin guide rail 20mm | |
| Motor | Stepper system 450B | |
| Drive | Leadshine 860 | |
| Inverter | Fuling 3.7kw/ 5.5kw | |
| Spindle | air-cooling | |
| Spindle power | 3.0kw/4.5kw | |
| Spindle speed | 6000-24000RPM | according to the material |
| Lathe bed frame | Steel square tubes | |
| Table surface | vacuum table / aluminum t slot | |
| Fixing method | vacuum suck/ by clamps | |
| X,Y,Z repositioning accuracy | ±0.03mm | |
| X,Y,Z traveling accuracy | ±0.03/300mm | |
| Max working speed | 20000mm/min | |
| Max rapid travel speed | 30000mm/min | |
| Working voltage | 380V/50/60Hz | |
| Operating system | NC Studio system/dsp system | |
| Command language | G code | |
| Computer interface | USB | |
| Flash memory | 128M(U Disk) | |
| Collet | ER32 | |
| Resolution | less than 0.02mm | |
| Software compatibility | Type3/Artcam/Artcut/Ucancam/JDpaint etc | |
| Running environment | 0~45 centigrade | |
| Relative humidity | 30%~75% | |
