Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RECI
-
Weight (KG):
-
350 KG
-
Core Components:
-
LASER TUBE
-
Laser power:
-
80W/100W/130W
-
Laser type:
-
Sealed CO2 laser tube
-
Working platform:
-
Honeycomb or blade
-
Engraving speed:
-
0-60000mm/min
-
Resolution rate:
-
±0.01mm
-
Min.character engraved:
-
Chinese2*2mm,English letter1.0*1.0mm
-
Power supply:
-
AC110V/220V+10%,50Hz/60Hz
-
Cooling mode:
-
Water cooling
-
Control software:
-
DSP system
-
Compatible Software:
-
CoreDraw AutoCAD Photoshop
Quick Details
-
Engraving Area:
-
900mm*1300mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-60000mm/min
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
RECI
-
Weight (KG):
-
350 KG
-
Core Components:
-
LASER TUBE
-
Laser power:
-
80W/100W/130W
-
Laser type:
-
Sealed CO2 laser tube
-
Working platform:
-
Honeycomb or blade
-
Engraving speed:
-
0-60000mm/min
-
Resolution rate:
-
±0.01mm
-
Min.character engraved:
-
Chinese2*2mm,English letter1.0*1.0mm
-
Power supply:
-
AC110V/220V+10%,50Hz/60Hz
-
Cooling mode:
-
Water cooling
-
Control software:
-
DSP system
-
Compatible Software:
-
CoreDraw AutoCAD Photoshop
Product Description

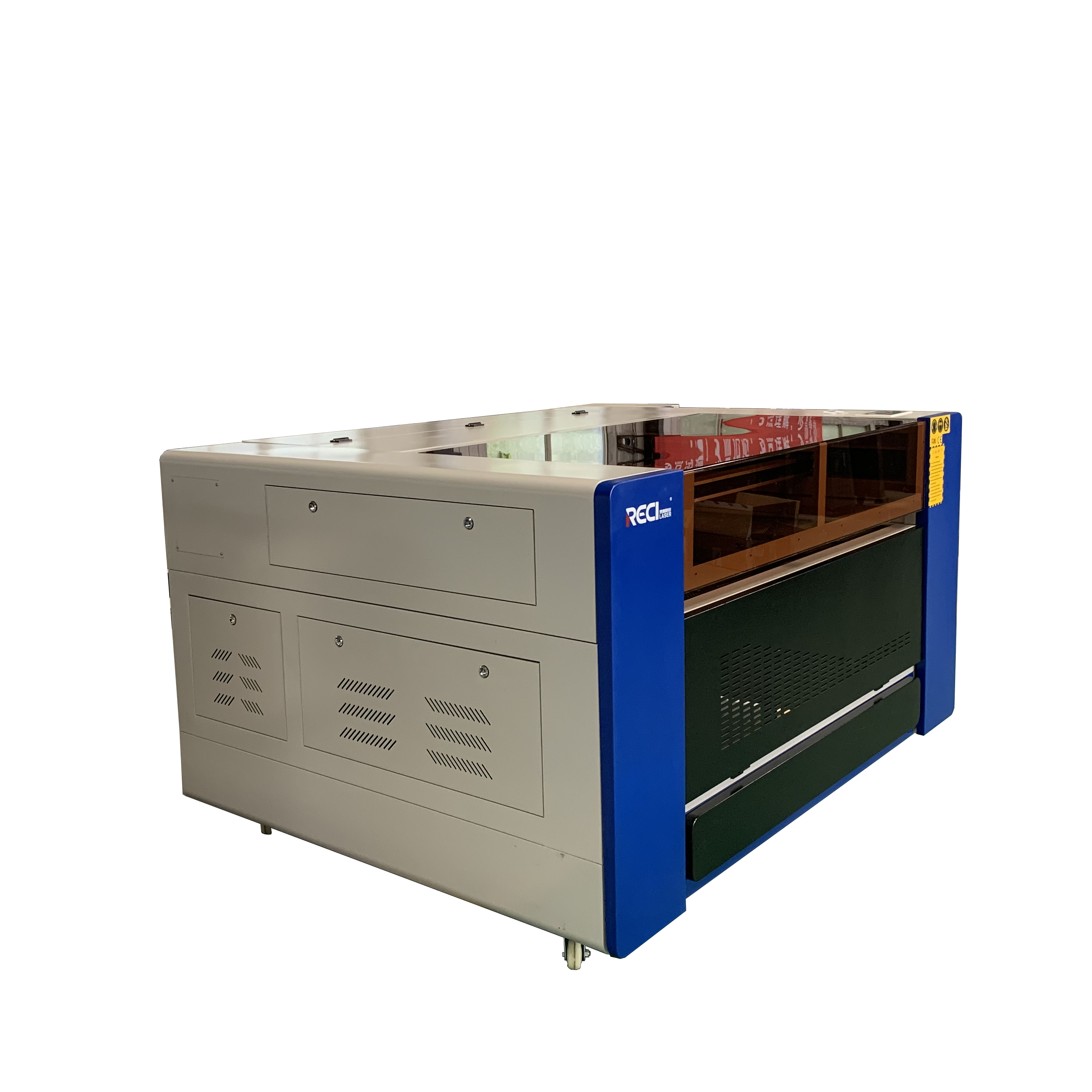

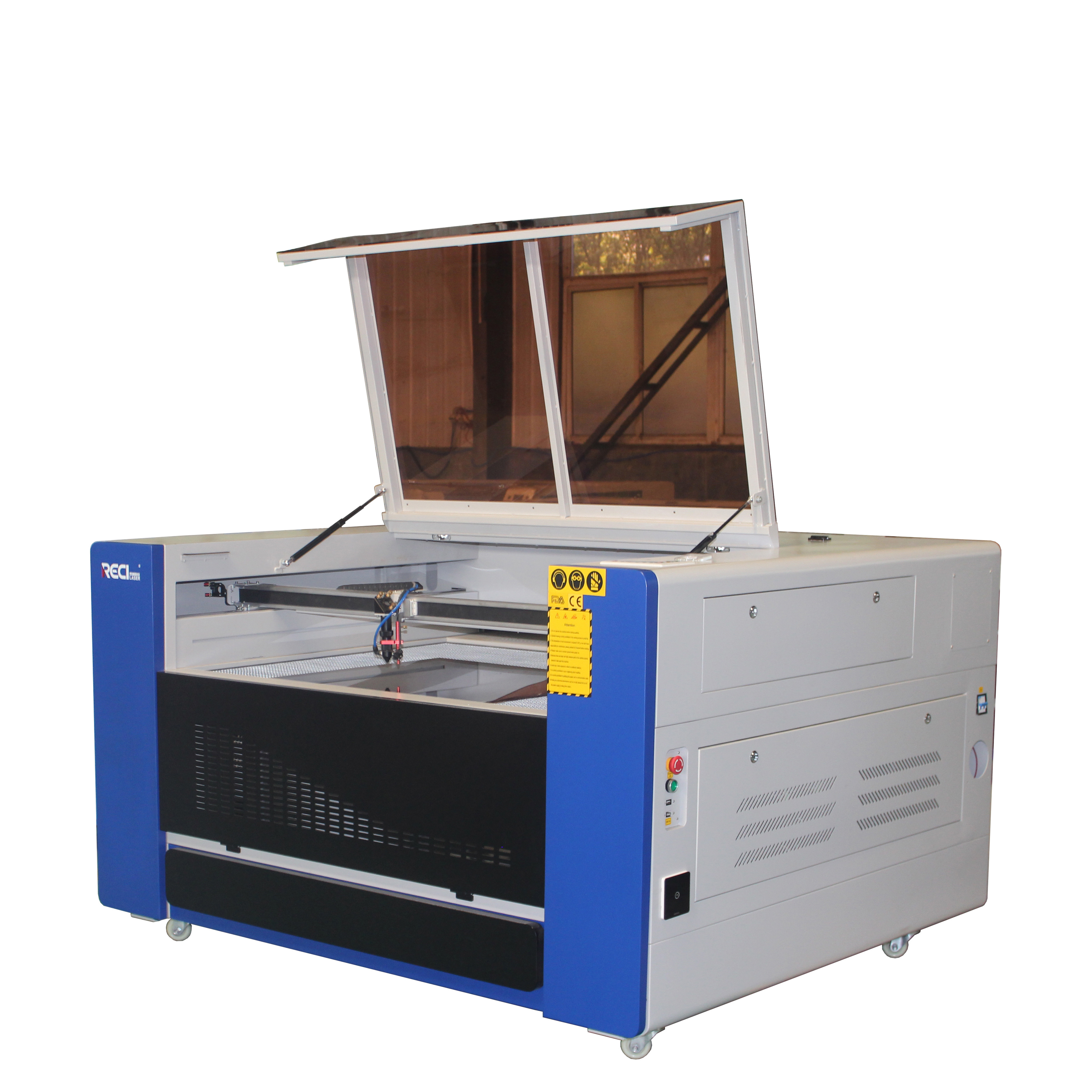

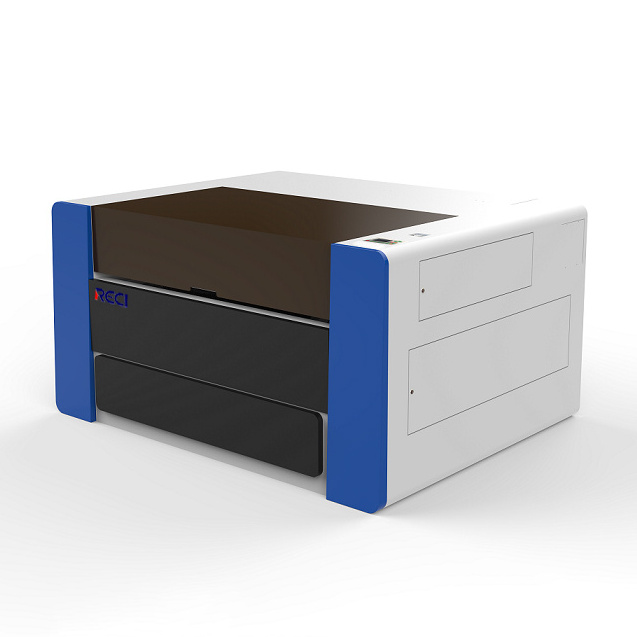

Professional high quality Reci fabric printer 80w 100w 1390 co2 laser engraving machine
RC-C laser cutting machine provides an efficient solution for general-purpose laser processing. It is widely used in high-precision cutting and engraving of acrylic, cardboard, wood, textiles, two-color plates and stone.
|
Specifications
|
|
|
|
|
|
|||||
|
Model
|
Working Size
|
Z Axis Stroke
|
Dimension
|
Weight
|
Remarks
|
|||||
|
RC3020
|
300*200mm
|
/
|
1100*660*400mm
|
30kg
|
linear guide rail
|
|||||
|
RC3050
|
300*500mm
|
/
|
1320*750*470 mm
|
40kg
|
linear guide rail
|
|||||
|
RC6040
|
600*400mm
|
optional
|
1400*900*1300mm
|
240kg
|
linear guide rail
|
|||||
|
RC6090
|
600*900mm
|
optional
|
1700*1200*1800mm
|
300kg
|
linear guide rail
|
|||||
|
RC1390
|
1300*900mm
|
optional
|
1960*1490*1340mm
|
400kg
|
linear guide rail
|
|||||
|
RC1325
|
1300*2500mm
|
optional
|
3750*2220*1200mm
|
750kg
|
linear guide rail
|
|||||
|
RC1610
|
1600*1000mm
|
optional
|
2380*1530*1210mm
|
480kg
|
linear guide rail
|
|||||
|
Series
|
|
RC Series Cutting & Engraving Machine
|
|
|
|
|||||
|
Laser Power
|
|
60W/80W/100W/130W/150W
|
|
|
|
|||||
|
Engraving Speed
|
|
0-1000mm/s
|
|
|
|
|||||
|
Min Engraving Size
|
|
Chinese:2.0mm*2.0mm,English Letter:1.0mm*1.0mm
|
|
|
|
|||||
|
Highest Scanning Precision
|
|
4000DPI
|
|
|
|
|||||
|
Cutting Speed
|
|
0-800mm/s
|
|
|
|
|||||
|
Cutting thickness
|
|
0-50mm
|
|
|
|
|||||
|
Positioning Accuracy
|
|
<0.1mm
|
|
|
|
|||||
|
Control System
|
|
Ruida RDC6445G+Rdworks
|
|
|
|
|||||
|
File Format
|
|
DST/DXF/AI/PLT/BMP/CDR,etc
|
|
|
|
|||||
|
Cooling Way
|
|
Water cooling
|
|
|
|
|||||
|
Drive System
|
|
Stepper Motor+Stepper Driver
|
|
|
|
|||||
|
Machine Accessories
|
|
Industrial Chiller,550W Fan,Air Compressor
|
|
|
|
|||||
|
Machine Structure
|
|
Covered and protected
|
|
|
|
|||||
|
Power supply
|
|
110V/220V,50HZ/60HZ
|
|
|
|
|||||
|
Total power
|
|
2KW-3KW
|
|
|
|
|||||
|
Working Environment
|
|
Temperature:0-45,Humidity 5-95%
|
|
|
|
|||||
CUTTING ABILITY
|
|
40w
|
50w
|
60w
|
80w
|
100w
|
130w
|
150w
|
||||||
|
wood
|
1.5mm
|
3.5mm
|
5.5mm
|
8.5mm
|
10.5mm
|
11.5mm
|
13.5mm
|
||||||
|
plywood
|
0.5mm
|
2.5mm
|
4.5mm
|
8.5mm
|
10.5mm
|
11.5mm
|
13.5mm
|
||||||
|
class
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
||||||
|
leather
|
0.5mm
|
1.5mm
|
2.5mm
|
3.5mm
|
4.5mm
|
5.5mm
|
6.5mm
|
||||||
|
acrylic
|
1mm
|
3.5mm
|
9mm
|
13mm
|
17mm
|
20mm
|
23mm
|
||||||
|
pvc
|
0.5mm
|
1.5mm
|
2.5mm
|
3.5mm
|
4.5mm
|
5.5mm
|
6.5mm
|
||||||
|
pleixglass
|
0.5mm
|
1.5mm
|
3.5mm
|
7.5mm
|
9.5mm
|
11.5mm
|
14.5mm
|
||||||
|
plastic
|
0.5mm
|
0.5mm
|
1.5mm
|
2.5mm
|
3.5mm
|
4.5mm
|
5.5mm
|
||||||
|
rubber
|
1mm
|
1.5mm
|
1.5mm
|
2.5mm
|
3.5mm
|
4.5mm
|
5.5mm
|
||||||
|
crystac
|
/
|
/
|
/
|
/
|
/
|
/
|
/
|
||||||
|
clothing
|
1mm
|
1.5mm
|
1.5mm
|
2.5mm
|
3.5mm
|
4.5mm
|
6.5mm
|
||||||
|
bamboo
|
0.5mm
|
1mm
|
1.5mm
|
2.5mm
|
3.5mm
|
4.5mm
|
5.5mm
|
||||||
|
paper
|
0.5-5mm
|
|
|
|
|
|
|
||||||
The advantages of our co2 laser engraving cutting machine:
1.
High-profile models use servo motors from the world's top suppliers.
With a moving step of only 6.25 microns and a resolution of more than 4000 DPI, they can still run at high speeds with cutting accelerations up to 2m / s2 (0.2 G), the scanning acceleration is up to 20m / s2 (2G).
2.
Adopts imported high-precision balanced guide rail,
which has high strength, durability and reliability, and guarantees long-term stable operation of the motion system.
3.
All use high-quality optical lenses imported from the United States,
with low absorption rate, durable and reliable, to ensure the consistency of the focused spot in the full processing format to obtain the industry-leading processing quality.
4.Reflector frame has a sturdy structure.
It adopts special fine-threaded screw adjustment screws and high-strength coil springs with adjustable elasticity to provide stable support for the reflection lens. The structure of the three adjustment screws can move the reflecting lens as a whole, and can easily adjust the light path to the ideal state passing through the center of all lenses.
5. Safety and reliability run through the entire process of RC-C design.
In accordance with international standards, we use the components of the world's leading suppliers to build the entire equipment and improve product reliability from the source.
Sensors are provided for detection and protection at all locations that pose a safety risk, including upper cover opening sensor, laser tube box opening sensor, water cooler flow sensor, etc. When a dangerous situation is detected, the equipment will automatically stop to avoid accidents. In addition, there is an emergency stop switch on the top of the man-machine interface. When a human being judges that a dangerous situation may occur, the button can be photographed, and the device will be immediately powered off to protect personal and property safety.
Product Details
Cutting-edge design and high-quality accessories ensure the RC-C's leading position in the industry, providing you with high-speed, high-precision, high-reliability laser equipment.
Quality Control
Packing&Shipping
1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool.
2. Fumigation wooden box: Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3. Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.
The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling.
Company Introduction
Jinan Reci CNC Machine Co.,Ltd
is a professional direct manufacturer of fiber laser cutting machine,
co2 laser engraving &cutting machine
,
fiber laser marking machine
,
co2 laser martking machine
,
Laser cleaning machine
,
3d robot cutting machine
, etc advertising equipment .not vendor. So good price, complete after sale service, technical support and full set of available accessories is our advantage.
We have many other models.If you have special requirement, such as need double laser heads, need water chiller or rotary attachment, pls contact with us for quotation.
We are looking for distributor from all over the world. If you are interested in, please contact with us.
FAQ
Q1:What material can co2 laser machine apply to ?
A:It can be used for engraving and cutting all non-metal materials like acrylic cutting, acrylic engraving machine, wood cutting,wood engraving, fabric /leather /cloth /textile engraving and cutting . as it's non-contact way so it not bring any harm tomaterials surface which widely used in the fields of AD, garment industry ,decoration industry ,etc .
Q2 :What's the working size do you supply ?
A:small size laser engraving machine with 300×210mm,600×400mm, 900×600mm, 1300×900mm, 1600×1000mm working areas. Another is flat bed laser size type fabric cutting machine with 1300×1800mm, 1300×2500mm, 1600×2600mm ,1600×2600mm working areas
Q3:What's the laser power for co2 laser engraving machine ?
A:About power , we supply power from 60w-150w
40W-60w :Mainly for engraving
80W-100W:Mainly for engraving and cutting
120w-180w:Mainly for cutting
Q4:What's the laser tube brand do you use and guarantee ?
A:For laser tube above 80w we adopt Top China Brand Reci or EFR brand ((lifetime :10000 hours )
For small power like 50w / 60w we adopt Yongli brand (lifetime :3000-4000 hours ).
Q5:What's the consumables for co2 laser machine ? any parts need to change after some usage ?
A:The only fitting parts and consumable for co2 laser machine is laser tube and mirrors ,
To save shipping fare and urgent usage, we recommend you order some with machine together by sea shipment
Q7:If I don't know how to use the machine, can you teach me?
A:) We offer worldwide installation, training and aftersales services(optional). Our professional and experienced technicians will come to your local warehouse to install, train or check machine or solve the aftersales problem.
B:1) There is a DVD disc including machine user manual and software user manual c/w machine. 2) Online (skype & phone) 3) Remote desktop software (Teamviewer) 4) Demo Video
