Quick Details
-
Ejector Force(kN):
-
17.2 kN
-
Theoretical Shot Volume(cm³):
-
142 cm³
-
Injection Rate (g/s):
-
103 g/s
-
Injection Weight (g):
-
132 g
-
Screw Speed (rpm):
-
1 - 240 rpm
-
Screw diameter (mm):
-
36 mm
-
Screw L/D Ratio:
-
0.1
-
Weight (KG):
-
1600
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
380 mm
-
Model Number:
-
V55-M
-
Brand Name:
-
YATAI
-
Power (kW):
-
7.5 kW
-
After-sales Service Provided:
-
Overseas service center available, Video technical support, Free spare parts, Online support
-
Plastic Type:
-
thermoplastic
-
Automatic:
-
YES
-
Screw Diameter:
-
28mm 32mm 36mm
-
Injection Rate:
-
63 83 105 cm3/s
-
Max Mould Size:
-
425x380mm
-
Product name:
-

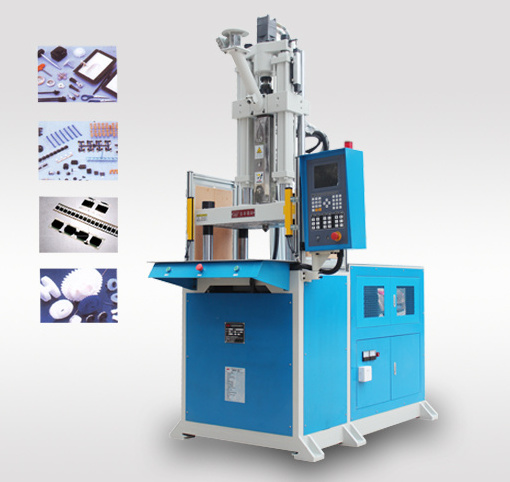

Plastic Rubber Injection Moulding Machine
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Function:
-
Plstic Injection Molding Machinery
-
Product:
-
PP PVC ABS TPE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Egypt, Italy, Viet Nam, Indonesia, Pakistan, India, Thailand, Malaysia
-
Marketing Type:
-
Hot Product 2019
-
Clamping Force (kN):
-
550
-
Certification:
-
CE
Quick Details
-
Plasticizing Capacity(g/s):
-
80
-
Mold Height(mm):
-
380 - 425 mm
-
Ejector Stroke(mm):
-
40 mm
-
Ejector Force(kN):
-
17.2 kN
-
Theoretical Shot Volume(cm³):
-
142 cm³
-
Injection Rate (g/s):
-
103 g/s
-
Injection Weight (g):
-
132 g
-
Screw Speed (rpm):
-
1 - 240 rpm
-
Screw diameter (mm):
-
36 mm
-
Screw L/D Ratio:
-
0.1
-
Weight (KG):
-
1600
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
380 mm
-
Model Number:
-
V55-M
-
Brand Name:
-
YATAI
-
Power (kW):
-
7.5 kW
-
After-sales Service Provided:
-
Overseas service center available, Video technical support, Free spare parts, Online support
-
Plastic Type:
-
thermoplastic
-
Automatic:
-
YES
-
Screw Diameter:
-
28mm 32mm 36mm
-
Injection Rate:
-
63 83 105 cm3/s
-
Max Mould Size:
-
425x380mm
-
Product name:
-
Plastic Rubber Injection Moulding Machine
-
Voltage:
-
380V/ 50Hz 3P+N+E (alterable)
-
Function:
-
Plstic Injection Molding Machinery
-
Product:
-
PP PVC ABS TPE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Egypt, Italy, Viet Nam, Indonesia, Pakistan, India, Thailand, Malaysia
-
Marketing Type:
-
Hot Product 2019
-
Clamping Force (kN):
-
550
-
Certification:
-
CE
Product Description
| V55-GII Technical Data Sheet Specification | |||||||
| INJECTION UNIT | Screw Diameter | mm | Φ28 | Φ32 | Φ36 | ||
| Theoretical Injection Volume | cm3 | 84 | 110 | 139 | |||
| Injection Weight(PS) | g(oz) | 78(2.7) | 102(3.6) | 129(4.5) | |||
| Injection Rate | cm3/sec | 72 | 94 | 120 | |||
| Injection Speed | mm/s | 118 | 118 | 118 | |||
| Max.Injection Pressure | Mpa(kgf/cm2) | 212(2170) | 162(1661) | 128(1313) | |||
| Screw Speed Rotation | r.p.m | 0~240 | |||||
| Nozzle Out From Platens | mm | 45 | |||||
| CLAMPING UNIT | Clamping Force | kN(tf) | 539(55) | ||||
| Clamping Stroke | mm | 200 | |||||
| Min.Mold Thickness | mm | 180(260) | |||||
| Max.Opening | mm | 380(460) | |||||
| Distance Between Tie Bars | mm | 445*255 | |||||
| Max Mould Size | mm | 400*300 | |||||
| Ejector Distance | mm | 40 | |||||
| Ejector Force | kN(tf) | 17(1.75) | |||||
| OTHERS | System Pressure | Mpa(kgf/cm2) | 13.7(140) | ||||
| Oil Tank Capacity | L | 200 | |||||
| Electric Power | kW(HP) | 7.5(10) | |||||
| Heater Power | kW | 5.8 | |||||
| Machine Dimension | L*W | mm | 1860*1265 | ||||
| H | mm | 2335(2945) | |||||
| Machine Weight | ton | 1.6 | |||||
