Quick Details
-
Brand Name:
-
REOMAX
-
Model Number:
-
6006
-
Max. Current:
-
300A
-
Product Name:
-
m-Series Battery Rotary Disconnect Switch
-
Volts:
-
48V DC
-
Amps:
-
300A
-
Cranking Rating:
-
900A
-
Intermittent Rating:
-
500A
-
No of Circuit:
-
Single
-
MOQ:
-
10PCS
-
OEM:
-
Available
-
Warranty:
-
1 Year
-
Usage:
-
vehicles, ships, yachts, RV, ATVs, UTV.
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
48V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
REOMAX
-
Model Number:
-
6006
-
Max. Current:
-
300A
-
Product Name:
-
m-Series Battery Rotary Disconnect Switch
-
Volts:
-
48V DC
-
Amps:
-
300A
-
Cranking Rating:
-
900A
-
Intermittent Rating:
-
500A
-
No of Circuit:
-
Single
-
MOQ:
-
10PCS
-
OEM:
-
Available
-
Warranty:
-
1 Year
-
Usage:
-
vehicles, ships, yachts, RV, ATVs, UTV.
Product Description

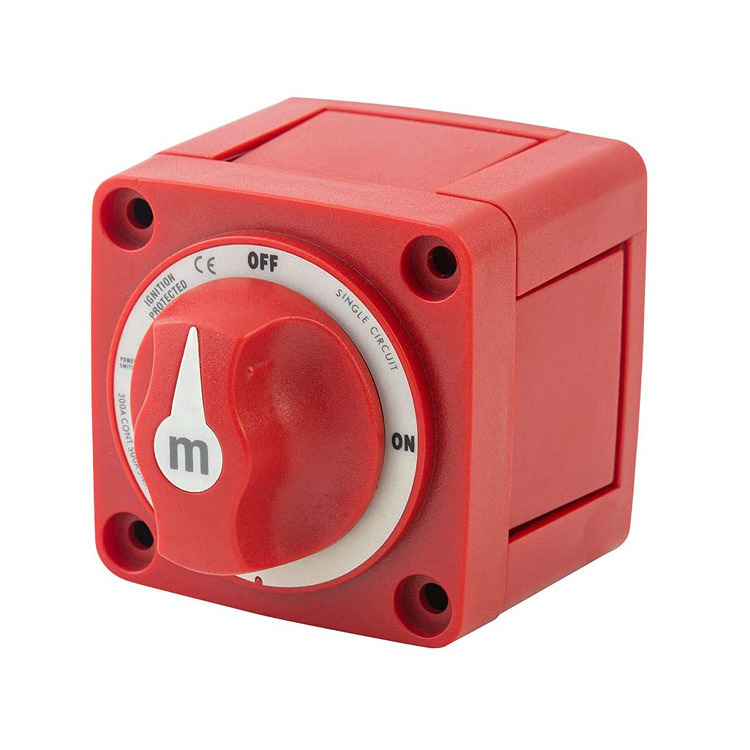

m-Series Battery Rotary Disconnect Switch
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
one-piece terminal stud design never loosens over time
One-piece stainless flange nuts ensure safe and secure connections
One-piece stainless flange nuts ensure safe and secure connections

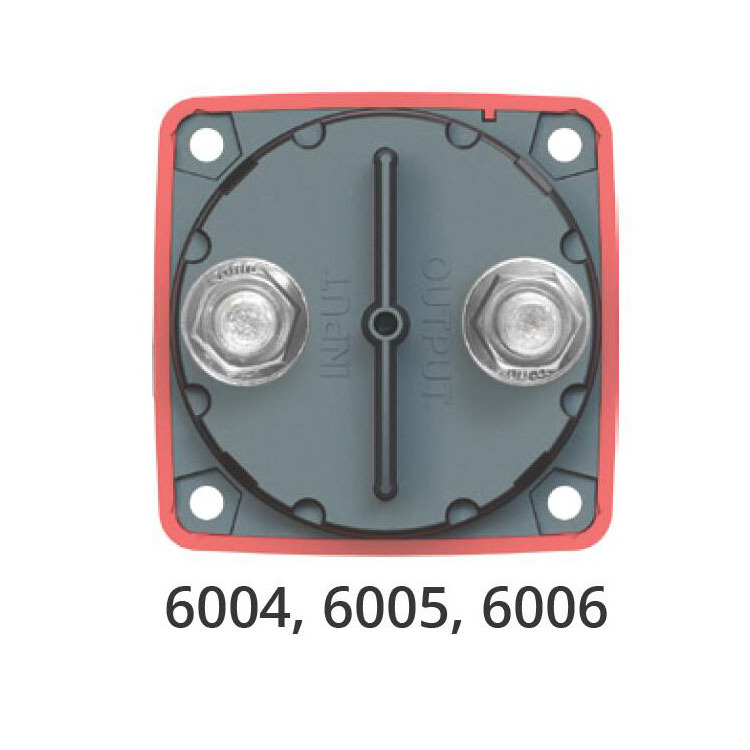

Isolating cover protects rear contacts
Breakout tabs allow
wire access in any direction
wire access in any direction

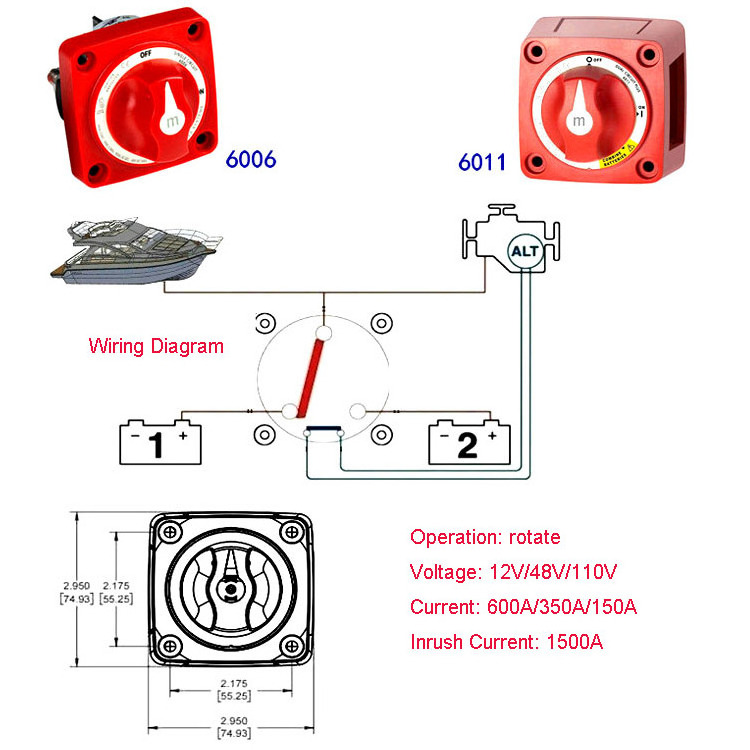

m-Series switch ON/OFF with Knob, part number 6006, is a Single Circuit ON-OFF switch. Switches a single battery to a single load group
IP66 waterproof, ISO 8846 and meets ABYC requirements. Ignition protected—safe for installation aboard gasoline powered boats
Make before break contact design allows switching between battery banks without power interruption
Continuous Rating: 300A, Maximum Voltage: 48V DC
IP66 waterproof, ISO 8846 and meets ABYC requirements. Ignition protected—safe for installation aboard gasoline powered boats
Make before break contact design allows switching between battery banks without power interruption
Continuous Rating: 300A, Maximum Voltage: 48V DC
|
Product Name
|
m-Series Battery Rotary Disconnect Switch
|
|
Description
|
Single Circuit ON-OFF
|
|
Voltage Max.
|
48V DC
|
|
Continuous Rating
|
300A
|
|
Cranking Rating
|
900A
|
|
Intermittent Rating
|
500A
|
|
Color
|
Red
|
|
Mount Type
|
Panel Mount
|
|
Actuator Type
|
Rotary
|
|
Number of Positions
|
2
|
|

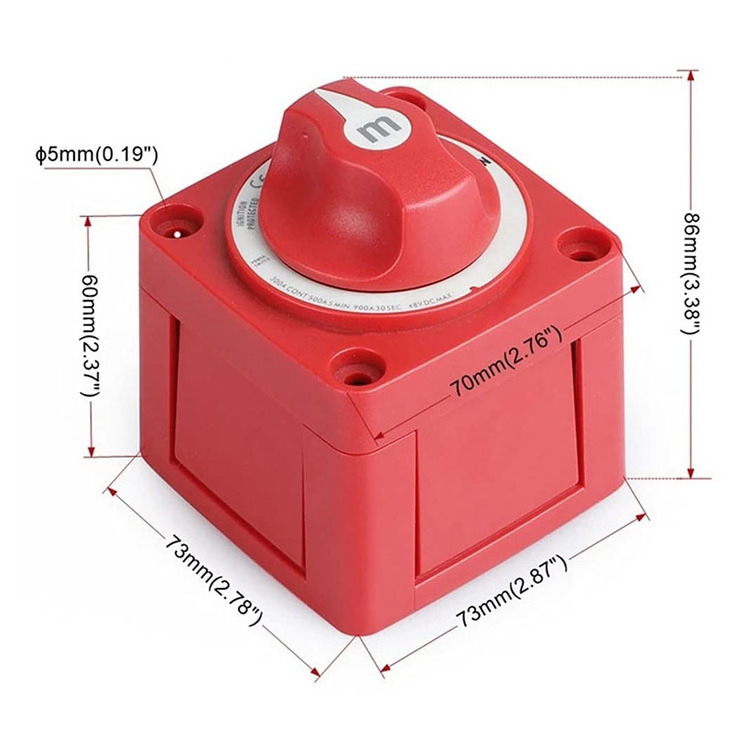

Dimension
|
3 x 4 x 6 inches
|
|
Protection grade
|
P66
|
* 48V 300A Battery Switch Panel Mount with Rotation Knob Spin Button.
* MATERIAL: Our battery switch made of ABS plastic, housing to resist the harsh marine conditions, durable made of safety use.

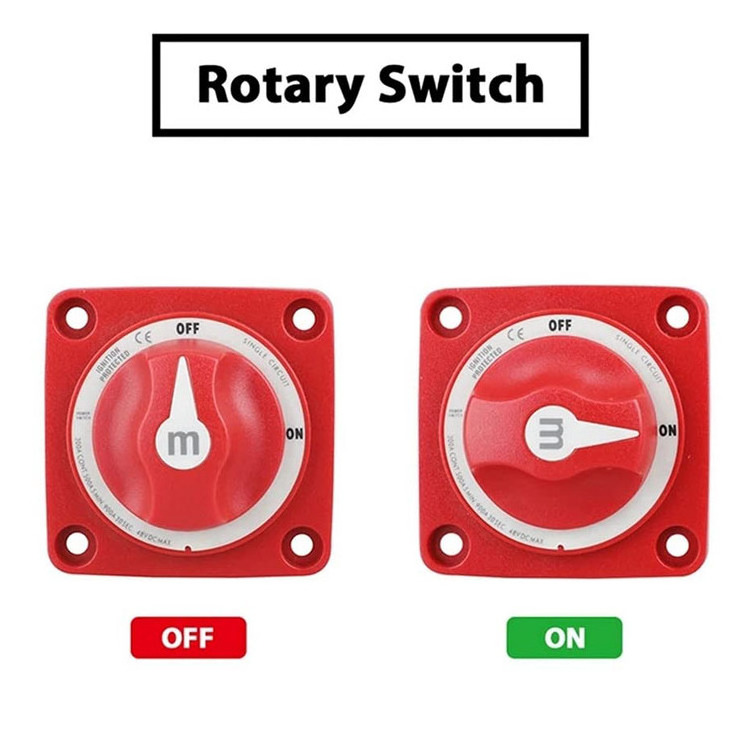

* EASY OPERATION: This RV battery switch is easy to install, with ON/OFF position in green and red color labels. Switch ON means Power (green), Switch OFF means No power (red).
* COMPATIBILITY: The marine battery disconnect used for DC 12-48V system to isolate and secure the electrical system, can stand alone or be locked together with other switch.
* SAFE PROTECTION: Battery isolator switch comes with certified, rear cover insulates terminals against any short of circuits, equiped with 4 sets of bolts.
* MATERIAL: Our battery switch made of ABS plastic, housing to resist the harsh marine conditions, durable made of safety use.
* EASY OPERATION: This RV battery switch is easy to install, with ON/OFF position in green and red color labels. Switch ON means Power (green), Switch OFF means No power (red).
* COMPATIBILITY: The marine battery disconnect used for DC 12-48V system to isolate and secure the electrical system, can stand alone or be locked together with other switch.
* SAFE PROTECTION: Battery isolator switch comes with certified, rear cover insulates terminals against any short of circuits, equiped with 4 sets of bolts.
* WIDE APPLICATION: Our battery switch is widely used for Car, Marine, Boat, RV, Camper, Travel Trailer, Truck, ATV, UTV, and electrical equipment's switch.
Applications
Used in large construction vehicles, ships, yachts, motorhomes, campervans, caravans,trucks, ATVs, UTV.
The positive and negative conductors should not be attached to the same battery switch.
