Quick Details
-
Weight (KG):
-
1000 KG
-
Product name:
-

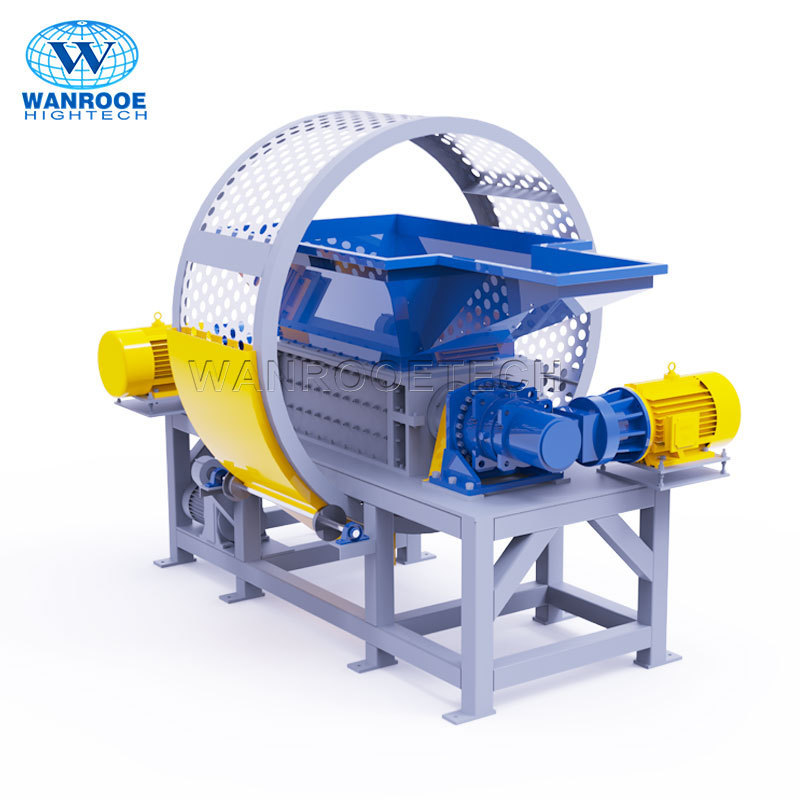

Tyre Shredder Waste Tire Recycling Production Line
-
Color:
-
Clients' Demand
-
shaft design:
-
double shaft
-
motor brand:
-
Siemens
-
motor power:
-
15+15kw;22+22kw
-
capacity:
-
100-2500kg
-
weight:
-
3000-5000kg
-
power source:
-
380v 50hz
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Keyword:
-
Tire Shredder Rubber Crusher
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Wanrooe
-
Power (kW):
-
180 kW
-
Weight (KG):
-
1000 KG
-
Product name:
-
Tyre Shredder Waste Tire Recycling Production Line
-
Color:
-
Clients' Demand
-
shaft design:
-
double shaft
-
motor brand:
-
Siemens
-
motor power:
-
15+15kw;22+22kw
-
capacity:
-
100-2500kg
-
weight:
-
3000-5000kg
-
power source:
-
380v 50hz
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support
-
Keyword:
-
Tire Shredder Rubber Crusher
Product Description
| NO | Process | Machine | Description |
| 1 | Pull the steel wire out of tire | Tire Wire Drawing Machine | Tire Wire Drawing Machine can pull the steel from bear inside the tire completely, then, the tyre will be easy crushed and cut. |
| 2 | Cut the tire(Optional) | Tire Cutter Machine | If the tire size is too large,you can use the Tire Cutter Machine to Pre cut it. |
| 3 | Shred tire into block | Tire Shredder | Tire shredder can be used to shred used tyre into 25mm to 152mm(1”-6”) rubber chip. |
| 4 | Break the rubber block smaller and separate the steel wire | Tire Crusher | Special tire scraps crushing blades,can separate the truck scraps steel wire easily. |
| 5 | Strong Magnetic Separator to remove the steel wire( first time) | Magnetic Separator | Separate steel wire from rubber. |
| 6 | Grind the rubber block into powder | Rubber Miller | Grind rubber powders to 30-120 Mesh free of steel wire and Fiber. |
| 7 | Strong Magnetic Separator to remove the steel wire( second time) | Magnetic Separator | Remove any remaining fine wire. |
| 8 | Separate rubber powder and fiber | Fiber separating System | The main application of classifier is to divide input powder into light and heavy parts under the conditions of negative pressure and sealing. |
