Quick Details
-
Model Number:
-
SPHR250S
-
Max. Current:
-
250/400/630A
-
Type:
-

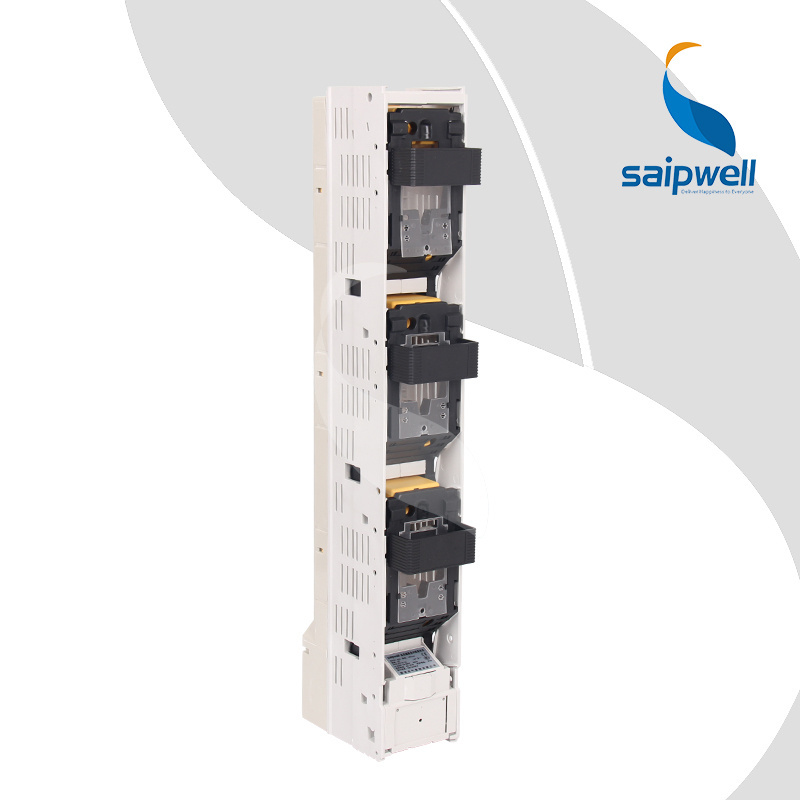

250A 400A 630A Fuse Isolating Disconnector Switch for busbar 185mm
-
Reated Working Voltage:
-
415/500/690V
-
Reated Working Current:
-
250/400/630A
-
Rated Frequency:
-
50/60Hz
-
Rated Insulation Voltage:
-
1000V
-
Rated Impulse Voltage:
-
10KV
-
Wire Specifications:
-
120/240/300mm2
-
The Default Connection:
-
V-clamp
-
The Other Connection Model:
-
Screw & Cable Lug
-
Dedree of Protection:
-
IP30
Quick Details
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Saipwell
-
Model Number:
-
SPHR250S
-
Max. Current:
-
250/400/630A
-
Type:
-
250A 400A 630A Fuse Isolating Disconnector Switch for busbar 185mm
-
Reated Working Voltage:
-
415/500/690V
-
Reated Working Current:
-
250/400/630A
-
Rated Frequency:
-
50/60Hz
-
Rated Insulation Voltage:
-
1000V
-
Rated Impulse Voltage:
-
10KV
-
Wire Specifications:
-
120/240/300mm2
-
The Default Connection:
-
V-clamp
-
The Other Connection Model:
-
Screw & Cable Lug
-
Dedree of Protection:
-
IP30
Brief Introduction
SPH series isolating switch fuse type can loading operation, and provides the upper and lower side input/output structure, is suitable for the rated current is 160 a - 630 - a. When installation can save more space, it can also be equipped with fuses the monitor.
|
Model | SPHR250L |
| Reated Working Voltage | 415/500/690V | |
| Reated Working Current | 250/400/600A | |
| Rated Frequency | 50/60Hz | |
|
Rated Insulation Voltage
|
1000V | |
| Rated Impulse Voltage | 10KV | |
| Wire Specifications | 120/240/300mm2 | |
| Dedree of Protection | IP30 | |
| The Default Connection |
V-clamp
|
|
| The Other Connection | Screw & Cable Lug |
