Quick Details
-
Application:
-
fire rated calcium silicate board
-
Design Style:
-
fire rated calcium silicate board
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HUALI
-
Model Number:
-
fire rated calcium silicate
-
Name:
-
fire rated calcium silicate board
-
Density:
-
220kg/m3
-
Thickness:
-
6-100mm
-
Certification:
-
ASTM/BS/JIS
-
Color:
-
White
-
Raw Materials:
-
Calcium Powder
-
Product Name:
-
fire rated calcium silicate board
-
sample:
-
free
-
packing:
-
carton
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
online service
-
Project Solution Capability:
-
online technology service
-
Application:
-
fire rated calcium silicate board
-
Design Style:
-
fire rated calcium silicate board
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
HUALI
-
Model Number:
-
fire rated calcium silicate
-
Name:
-
fire rated calcium silicate board
-
Density:
-
220kg/m3
-
Thickness:
-
6-100mm
-
Certification:
-
ASTM/BS/JIS
-
Color:
-
White
-
Raw Materials:
-
Calcium Powder
-
Product Name:
-
fire rated calcium silicate board
-
sample:
-
free
-
packing:
-
carton
Calcium silicate

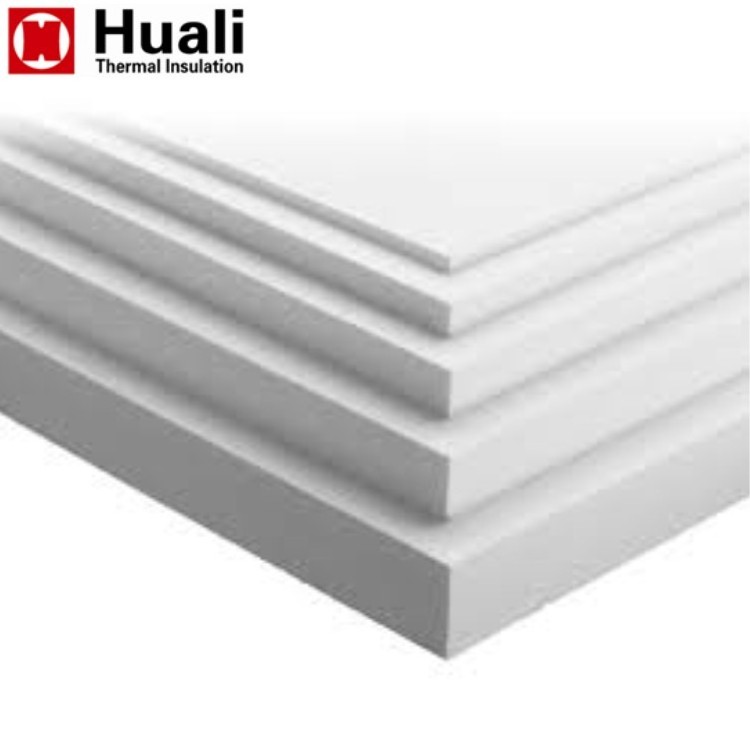

Fire Rated Calcium Silicate Insulation Board/ Plate/ Panel
|
Item
|
Technical Data
|
|
Standard
|
ASTM C585, ASTM C533-11,
BS3958PartII 1982, JIS A 9510-84
|
|
Density
|
170-220kg/m3
|
|
Max Service Temperature ℃
|
650
|
|
Felxural Strength Psi(Kpa)
|
65 Psi (450Kap)
|
|
Compressive Strength Psi (Kpa)
|
100Psi (690Kpa)
|
|
Linear Shrinkage after24hr
|
less than 2%
|
|
Surface Burning Charasteristics
|
0, non-inflammable
|
|

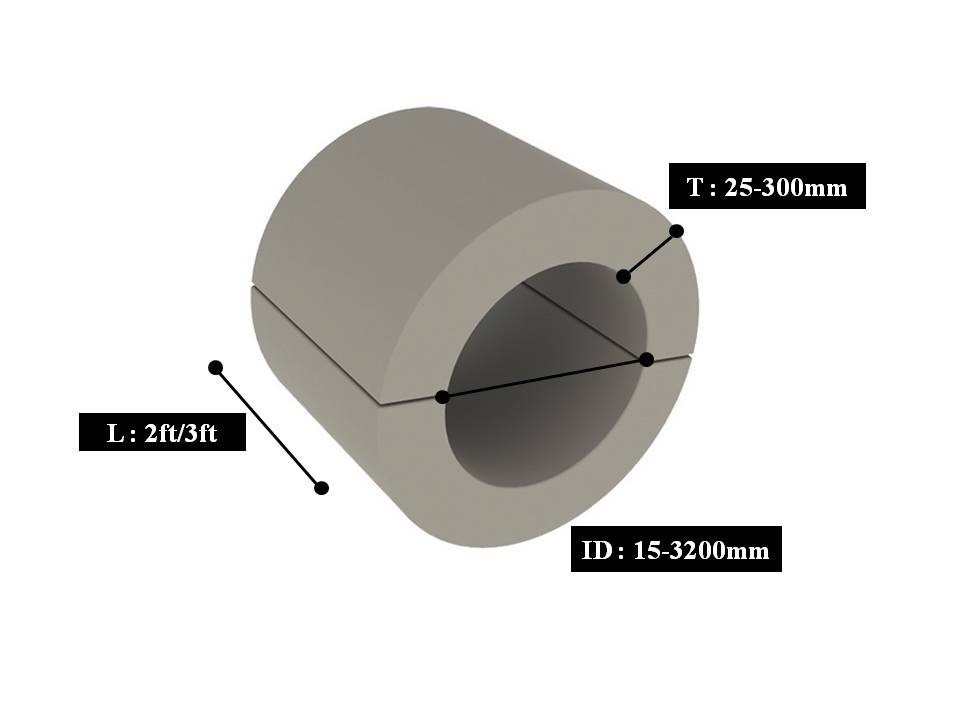

ID Size
|
|
2ft length
|
3ft length
|
|
|
Inch
|
mm
|
Pcs/set
|
Pcs/set
|
|
|
1/4"-6"
|
15-171
|
2
|
2
|
|
|
7"-10"
|
196-275
|
3
|
2
|
|
|
11"-14"
|
300-358
|
4
|
2
|
|
|
15"-20"
|
358-511
|
6
|
4
|
|
|
21"-28"
|
529-715
|
8
|
4
|
|
|
28"-30"
|
715-762
|
10
|
4-6
|
|
|
31"-34"
|
800-862
|
10
|
6
|
|
|
34"-40"
|
862-1020
|
12
|
6-8
|
|
|
42"-126"
|
1073-3200
|
14-36
|
8-24
|
|

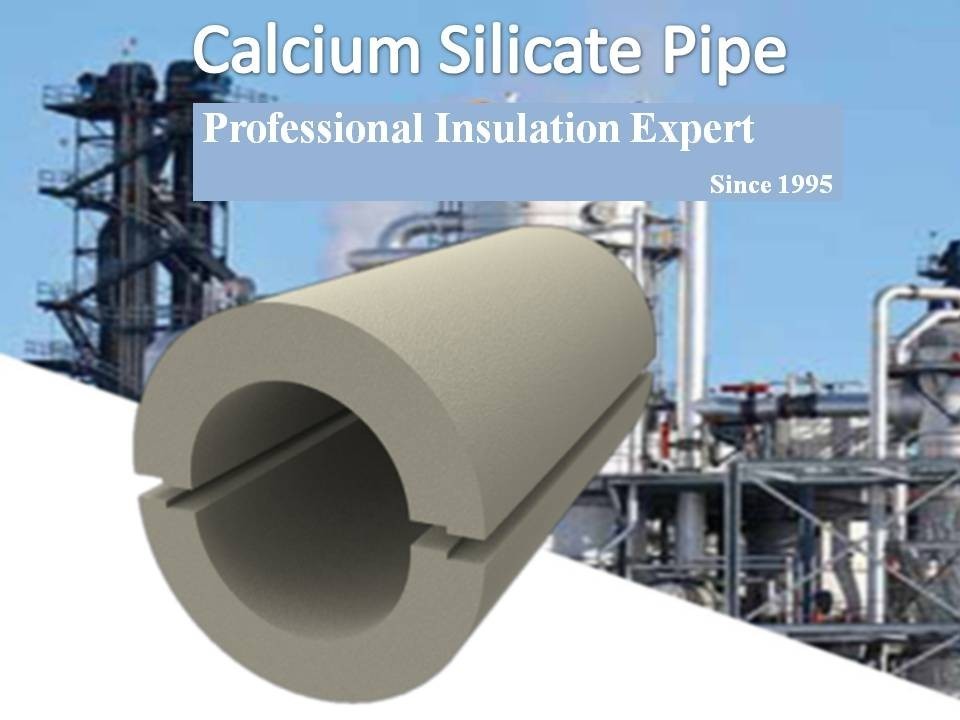

Calcium Silicate pipe
Waterproof
Calciul Silicate pipe
High temperature
Calcium silicate pipe
Different ID size
Calcium silicate pipe
Different tee, elbow
Fire Rated Calcium Silicate Insulation Board/ Plate/ Panel
Fire Rated Calcium Silicate Insulation Board/ Plate/ Panel
Fire Rated Calcium Silicate Insulation Board/ Plate/ Panel
