Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZK
-
Voltage:
-
380v
-
Weight (KG):
-
1400
-
Control system:
-
NCstudio
-
Spindle:
-
4.5kw Water Cooling Spindle
-
Inverter:
-
BEST/Fuling Inverter
-
Motor and driver:
-
Stepper Motor and driver
-
Bed structure:
-
Heavy duty welded thick steel
-
Table surface:
-
T-slot Aluminum +PVC
-
Software:
-
Ucancam / ArtCam/TYPE3,etc
-
Guide rails:
-
HIWIN square guide rails
-
Color and machine size:
-
Can be customized
-
Rotary shafts:
-
Optional
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZK
-
Voltage:
-
380v
-
Weight (KG):
-
1400
-
Control system:
-
NCstudio
-
Spindle:
-
4.5kw Water Cooling Spindle
-
Inverter:
-
BEST/Fuling Inverter
-
Motor and driver:
-
Stepper Motor and driver
-
Bed structure:
-
Heavy duty welded thick steel
-
Table surface:
-
T-slot Aluminum +PVC
-
Software:
-
Ucancam / ArtCam/TYPE3,etc
-
Guide rails:
-
HIWIN square guide rails
-
Color and machine size:
-
Can be customized
-
Rotary shafts:
-
Optional
Product Description
Product Paramenters
Details Images

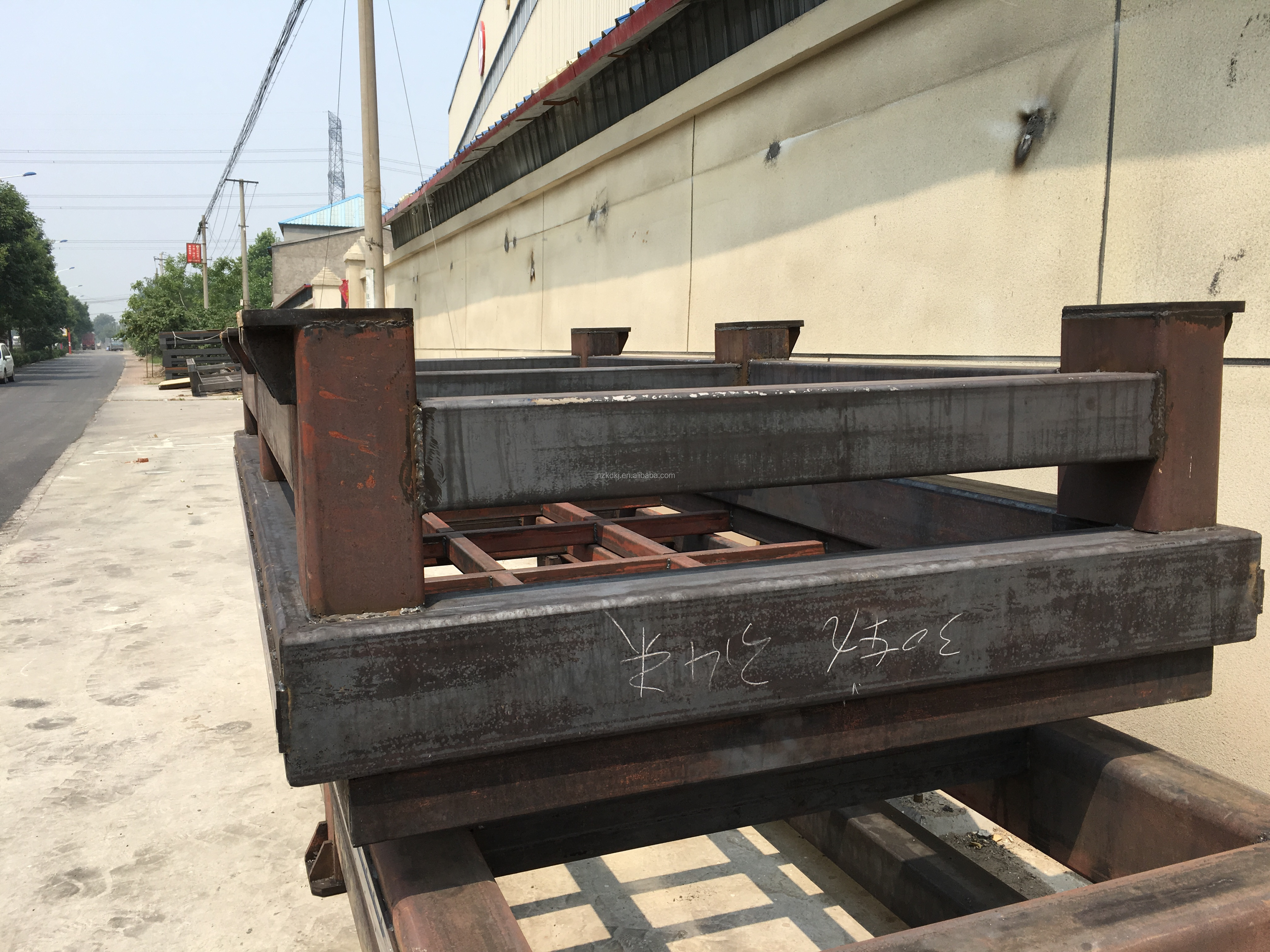

Welded thick steel bed structure

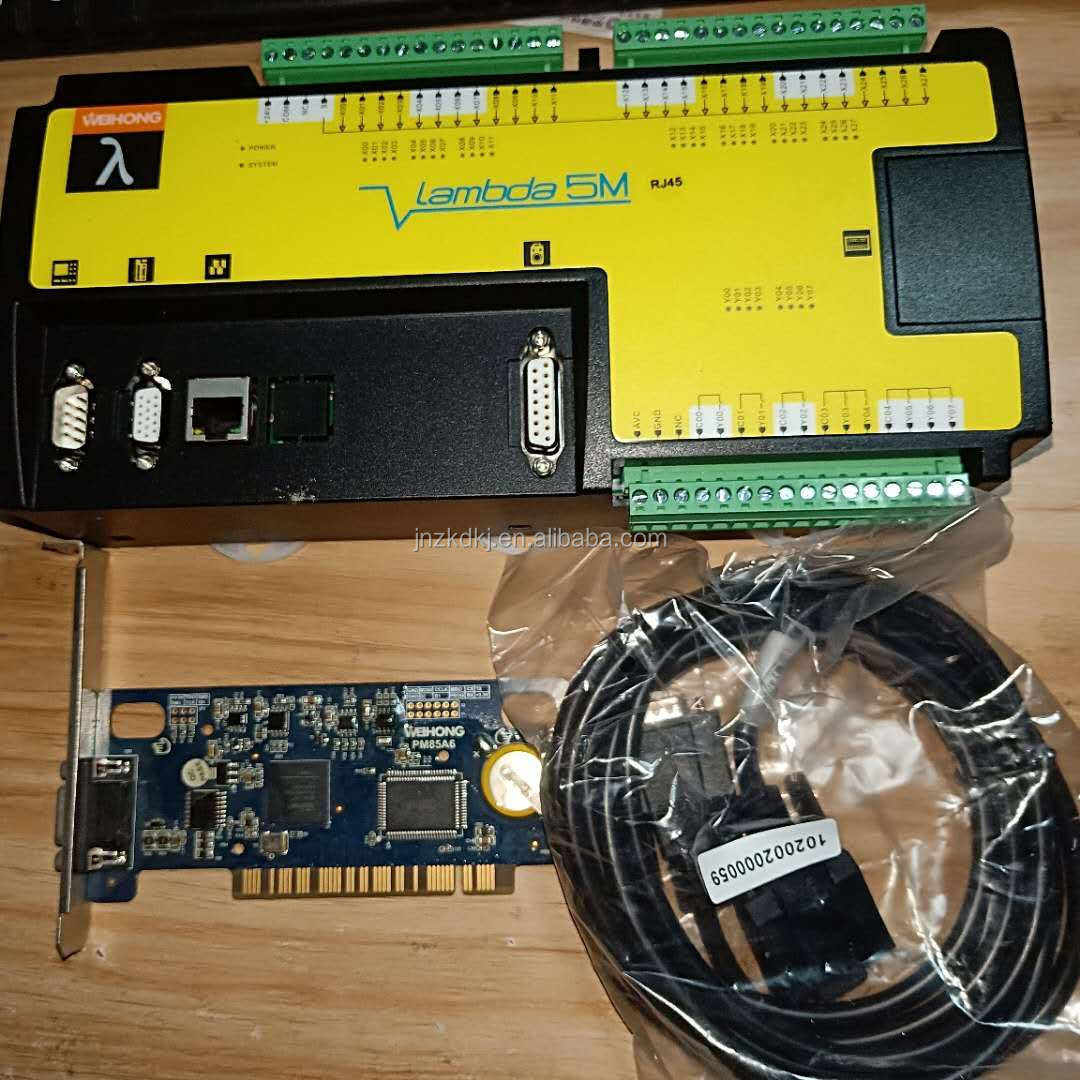

NCstudio card control system

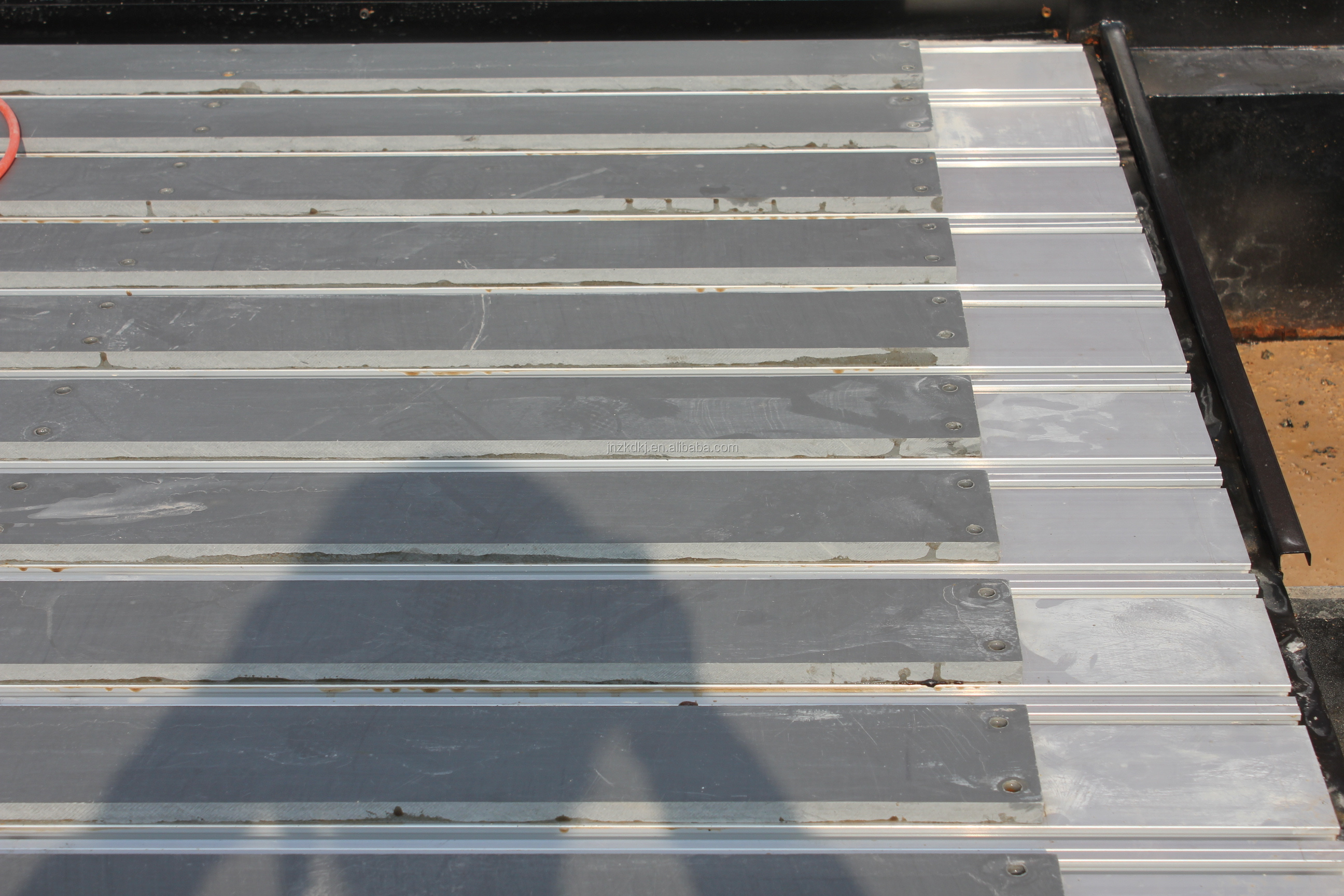

Aluminum + PVC table surface
4.5KW water-cooling spindle
Chuang Wei stepper motor
Drivers for stepper motor
BEST inverter
Hiwin square guide rails
Taiwan TBI ball screw
High precision helical racks
Auto tool sensor
Manual lubricating system
Optional parts
DSP control system
Fuling/Delta or other brand inverter
4.5KW air-cooling spindle or multi-spindle
servo motor and drivers
Auto lubricating system
rotary shafts

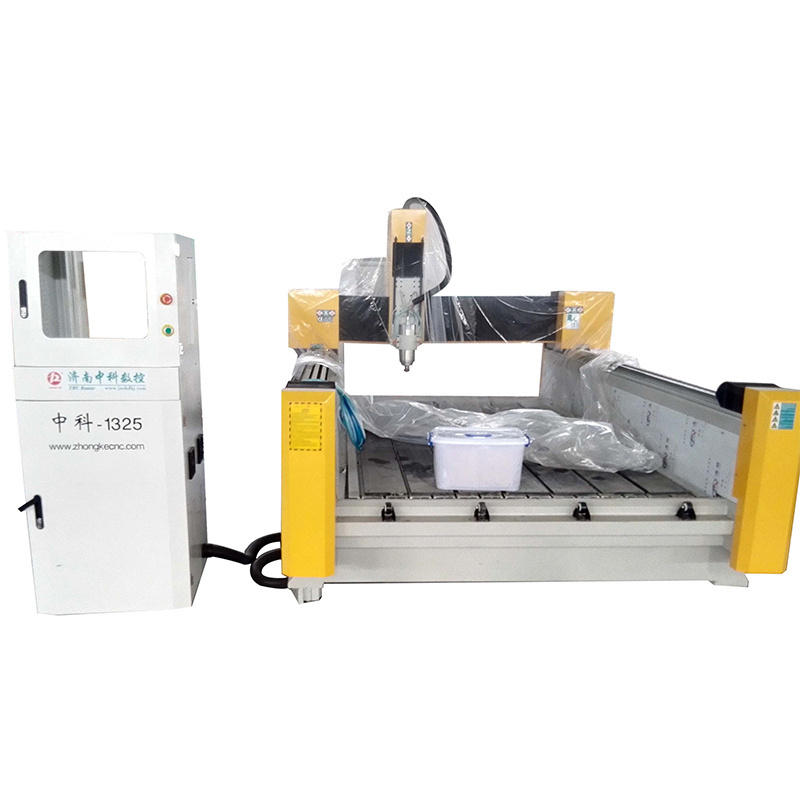

machine with DSP control system and a rotary shaft
machine withe double spindles
