Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use

Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use

FOB Reference Price: Get Latest Price
≥1 Sets
US $1750
≥5 Sets
US $1650
≥10 Sets
US $1550
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
KARP
Voltage:
380V, or customized
Dimension(L*W*H):
Customized
Weight:
800 KG
Keyword:
Linear Vibrating Screen/Vibro Sifter
Motor:
Two Vibration Motor
Material:
Carbon Steel/ Stainless Steel 304/316
Layer(s):
1-7 Layers
Capacity:
500kg-20t/h
Function:
Screening\separation\sorting\sieving\Grading
Cleaning system:
Bouncing Ball Cleaning System
Mesh size:
0.2mm-100mm
Feature:
High Screening Efficiency
Customized:
Acceptable

Quick Details

Type:
LINEAR
Marketing Type:
Hot Product 2023
Place of Origin:
Henan, China
Brand Name:
KARP
Voltage:
380V, or customized
Dimension(L*W*H):
Customized
Weight:
800 KG
Keyword:
Linear Vibrating Screen/Vibro Sifter
Motor:
Two Vibration Motor
Material:
Carbon Steel/ Stainless Steel 304/316
Layer(s):
1-7 Layers
Capacity:
500kg-20t/h
Function:
Screening\separation\sorting\sieving\Grading
Cleaning system:
Bouncing Ball Cleaning System
Mesh size:
0.2mm-100mm
Feature:
High Screening Efficiency
Customized:
Acceptable
Products Description
Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use


Brief Introduction

Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use is a commonly used screening device that is mainly used for the screening and classification of powdery and granular materials. It is widely used in industries such as grain, plastics, abrasives, chemicals, building materials, and fertilizers.

Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use is mainly composed of a screen box, screen mesh, two vibration motors, springs and supporting base. It adopts double exciters to drive. When the two exciters rotate synchronously and in reverse direction, the vibration force generated by their eccentric blocks cancels each other out in the direction parallel to the motor axis and stacks into one combined force in the direction perpendicular to the motor axis. Therefore, the motion trajectory of the screening machine is a straight line.

Structure

Main Features

1.Less energy consumption, low noise, long service life of the screen.

2. High screening precision, large processing capacity and simple structure.

3. Fully enclosed structure, automatic discharge, more suitable for assembly line operations.

4.Simple structure, easy to clean or replace the mesh, save time and effort.

5. All parts of the screen body are welded by rolled steel plates and profiles (parts are connected by spirals), firm and reliable.
Product Details

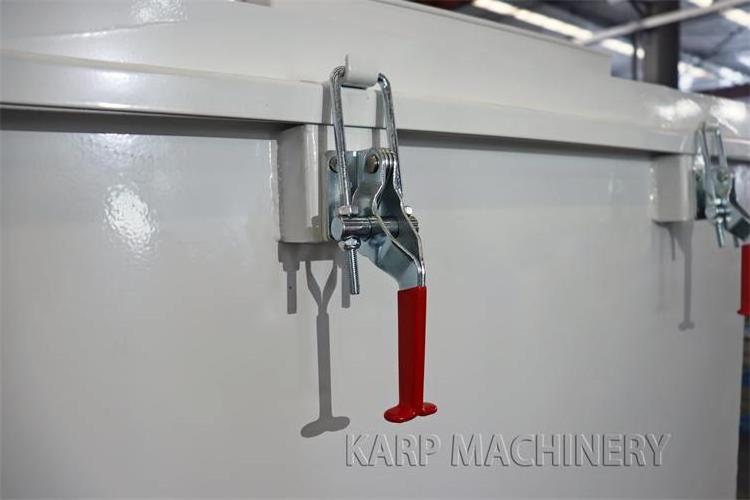

Quick Clamps

The quick clamps offer faster and more convenient operation, tighter sealing, greater durability, and easier to clean and replace
screens.

Outlets

There are multiple outlets, the shape and direction can be customized.

Distributor

Split the material and spread it on the screen to improve the screening efficiency.


Vibration Motor

Excitation force can be adjusted and voltage can be customized.

OLI-WOLONG Brand (China-Italy joint venture), high efficiency.

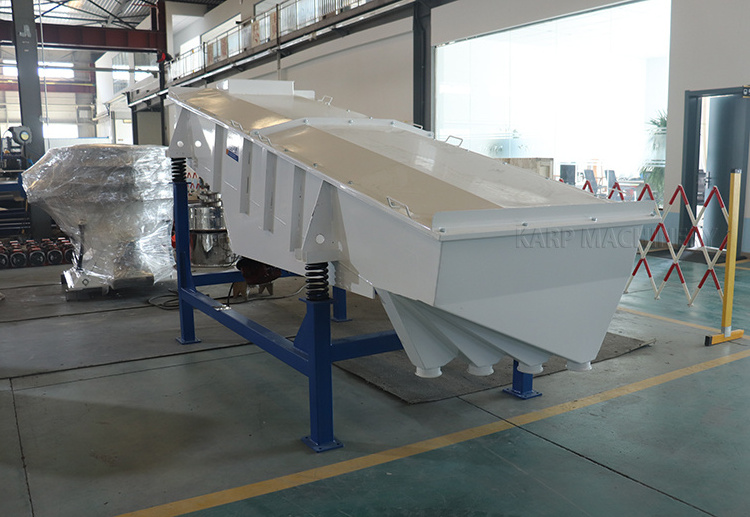

Product Show

Carbon Steel

Contacting material part is SS304

Material, color, height, mesh size, angle and number of mesh layers can be customized.

Product Application Site
Can be used in food, mining, coal, metallurgy, construction, refractory, chemical, and agricultural industries.

Product Flow


Specification
Model
Screen size
(mm)
Layer
Material size
(mm)
Vibrating frequency
(rmp)
Amplitude
(mm)
Power
(KW)
ZS520
500×2000





1-7





0.074-10





960r/min





3-8
2×（0.37-0.75）
ZS525
500×2500
2×(0.37-0.75）
ZS1020
1000ￗ2000
2×（0.55-1.1）
ZS1025
1000×2500
2×（1.1-1.5）
ZS1030
1000×3000
2×（1.1-1.5）
ZS1040
1000×4000
2×（1.5-2.2）
ZS1230
1200×3000
2×（0.75-3）
ZS1530
1500×3000
2×（1.1-1.5）
ZS1540
1500×4000
2×（1.1-1.5）
Application Fields

Application details of Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use :

1. Chemical industry : resin, paint, cosmetics, paint, herbal powder, etc.
2. Food industry : coffee beans, corn, wheat, salt, peanuts, sesame, etc.
3. Metals and metallurgical mining : charcoal powder, coal, electrolytic copper powder, electromagnetic material, milling powder, refractory material, kaolin, lime, alumina, ground calcium carbonate, quartz sand, etc.
4. Other industries : waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon, etc.
Packing & Delivery

- Packing for Automatic River Sand Vibro Sifter Quartz Linear Vibrating Screen with Three Layers for Industrial Use .
- Outside package: standard export wood box.
- Inner package: stretch film for machine, accessories in carton.
