Quick Details
-
Voltage:
-
110V220V/380V/415V/460V
-
Dimension(L*W*H):
-
740*740*900mm
-
Weight:
-
150 Kg
-
Motor:
-
Vertical Vibrating Motor
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Stainless Steel 304
-
Layer(s):
-
one layer
-
Customization:
-
Accept
-
Usage:
-
Fine Particles Screening
-
Capacity:
-
300kg/h
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Feature:
-
Simple Operation
-
Surface Treatment:
-
Mirror Polishing
-
Certification:
-
ISO9001:2008/CE
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dahan
-
Voltage:
-
110V220V/380V/415V/460V
-
Dimension(L*W*H):
-
740*740*900mm
-
Weight:
-
150 Kg
-
Motor:
-
Vertical Vibrating Motor
-
Function:
-
Screening\separation\sorting\sieving
-
Material:
-
Stainless Steel 304
-
Layer(s):
-
one layer
-
Customization:
-
Accept
-
Usage:
-
Fine Particles Screening
-
Capacity:
-
300kg/h
-
Cleaning system:
-
Bouncing Ball Cleaning System
-
Feature:
-
Simple Operation
-
Surface Treatment:
-
Mirror Polishing
-
Certification:
-
ISO9001:2008/CE
Product Description
Technical Parameters
|
bean sifter parameter list
|
|
|
|
|
|
|
|
|||||||
|
Model
|
Power(kw)
|
Sieve diameter(mm)
|
Layers
|
Granularity(mm)
|
Voltage(v)
|
RMP(r/min)
|
Capacity(kg/h)
|
|||||||
|
DH-400
|
0.18
|
350
|
1-4
|
<10
|
380
|
1440
|
100
|
|||||||
|
DH-600
|
0.25
|
550
|
1-4
|
<10
|
380
|
1440
|
500
|
|||||||
|
DH-800
|
0.55
|
750
|
1-4
|
<10
|
380
|
1440
|
800
|
|||||||
|
DH-1000
|
0.75
|
920
|
1-4
|
<10
|
380
|
1440
|
1400
|
|||||||
|
DH-1200
|
1.1
|
1120
|
1-4
|
<10
|
380
|
1440
|
2100
|
|||||||
|
DH-1500
|
1.5
|
1420
|
1-4
|
<10
|
380
|
1440
|
2600
|
|||||||
|
DH-1800
|
2.2
|
1720
|
1-4
|
<10
|
380
|
1440
|
3300
|
|||||||
Product Application

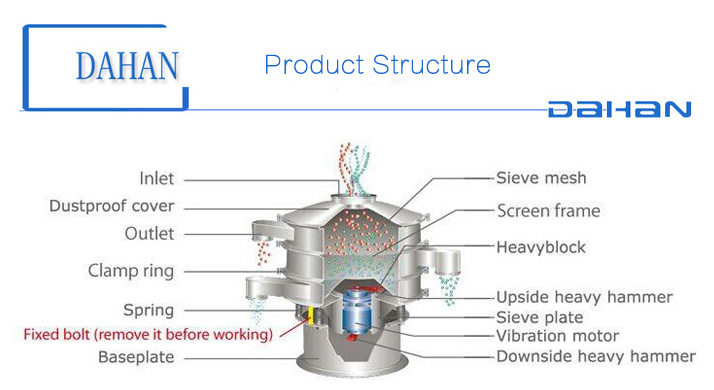

Working Principle
Detailed Image
Certifications
Our Service
Packing & Delivery
FAQ
