Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
China
-
Brand Name:
-
Remax
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2170*1460*1870
-
Power (kW):
-
2.2
-
Weight (KG):
-
800
-
Model:
-
Remax-6060 Small CNC Machine
-
X,Y,Z Working Area:
-
600*600*200mm
-
X,Y,Z Traveling Positioning Accuracy:
-
±0.03/300mm
-
X,Y,Z Repositioning Accuracy:
-
±0.03mm
-
Table Surface:
-
Cast by iron
-
Frame:
-
Cast by iron
-
X, Y Structure:
-
HIWIN Rail Linear Guide and TBI Ball Screw
-
Z Structure:
-
HIWIN Rail Linear Guide and TBI Ball Screw
-
Max. Power Consumption:
-
(Without Spindle) 1.0Kw
-
Max. Rapid Travel Rate:
-
16000mm/min
Quick Details
-
Working Table Size(mm):
-
600*600mm
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
600 mm
-
Travel (Y Axis)(mm):
-
600 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
China
-
Brand Name:
-
Remax
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
2170*1460*1870
-
Power (kW):
-
2.2
-
Weight (KG):
-
800
-
Model:
-
Remax-6060 Small CNC Machine
-
X,Y,Z Working Area:
-
600*600*200mm
-
X,Y,Z Traveling Positioning Accuracy:
-
±0.03/300mm
-
X,Y,Z Repositioning Accuracy:
-
±0.03mm
-
Table Surface:
-
Cast by iron
-
Frame:
-
Cast by iron
-
X, Y Structure:
-
HIWIN Rail Linear Guide and TBI Ball Screw
-
Z Structure:
-
HIWIN Rail Linear Guide and TBI Ball Screw
-
Max. Power Consumption:
-
(Without Spindle) 1.0Kw
-
Max. Rapid Travel Rate:
-
16000mm/min
Product Description
1. Aluminum grooved and moving table, ideal for machining metal or wooden molds
2. Axes X, Y, Z are equipped with photoelectric devices, which ensure a fast response and good anti-interference capacity
3. TBI ball screw transmission improves positioning accuracy and fast speed

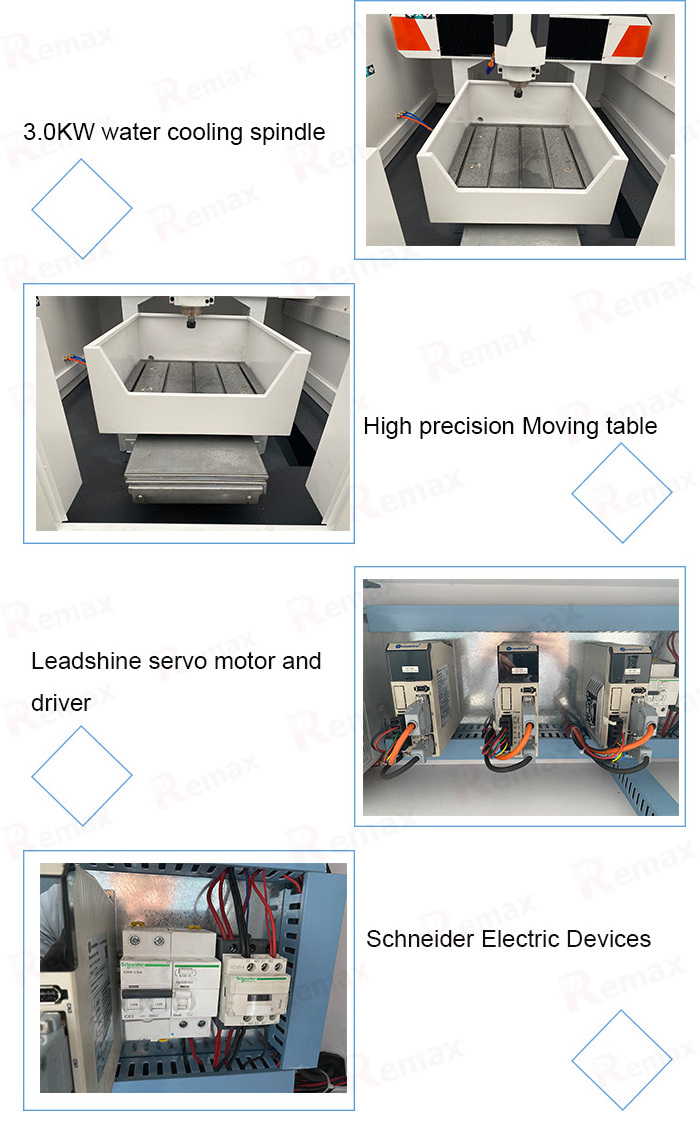

4. Selection of high speed 2.2kw water cooled spindle, low noise, high torque, this CNC can be used to process high hardness materials.
5. With the Nc studio operating system, it has the breakpoint memory function, which allows you to continue working in the event of a power failure or next day's workrements
|
Model
|
Remax-6060 Small CNC Machine for sale
|
|
X,Y,Z Working Area
|
600*600*200mm
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/300mm
|
|
X,Y,Z Repositioning Accuracy
|
±0.03mm
|
|
Table Surface
|
Aluminum grooved and moving table
|
|
Frame
|
Cast by iron
|
|
X, Y Structure
|
HIWIN Rail Linear Guide and TBI Ball Screw
|
|
Z Structure
|
HIWIN Rail Linear Guide and TBI Ball Screw
|
|
Max. Power Consumption
|
(Without Spindle) 1.0Kw
|
|
Max. Rapid Travel Rate
|
16000mm/min
|
|
Max. Working Speed
|
10000mm/min
|
|
Spindle Power
|
2.2 kw water cooling spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Drive Motors
|
Servo Motor
|
|
Working Voltage
|
AC220/380V, 50/60Hz
|
|
Command Language
|
G Code
|
|
Operating System
|
Ncstudio or Mach3 PC Software
|
|
Computer Interface
|
USB
|
|
Flash Memory
|
128M(U Disk)
|
|
X,Y Resolution
|
<0.01mm
|
|
Software Compatibility
|
Type3/Ucancame V9 Software, (Option:Artcam Software)
|
|
Running Environment Temperature
|
0 - 45 Centigrade
|
|
Relative Humidity
|
30% - 75%
|
|
Inverter
|
Delta/Fuling
|
|
Electrical components
|
Schneider
|
|
Limit switch
|
OMRON
|
|
Driver
|
Leadshine
|
|
Warranty
|
One year, expect consumable parts
|
|
Support
|
By calling or email or training
|
Parts
Samples
Packing and Delivery
Certifications
Our customer
Our Company
Jinan Remax Machinery Technology Co.,LTD is a professional cnc router manufacturer, after ten years of efforts, our company already independent R&D and manufacture of molds engraving and milling machine, large CNC woodworking engraving machine, woodworking engraving and milling machine, CNC advertising engraving machine, CNC stone engraving machine, CNC linear and disk auto tool changer machines, CNC plasma cutter machines, laser cutting and engraving machine, laser cutting machine, metal laser cutting machine(YAG and Fiber), laser seal engraving machine, styrofoam machining centers etc machines, since the establishment of our company, with professional technology and advanced management concepts, the rapid rise in the field of Numerical Control, has developed into research and development, production and sales of high-tech enterprises, the products have been widely used in the advertising industry, woodworking industry, craft gifts, architectural models, electronics, CAD / CAM industry mold industry, decoration, clothing, packaging, printing, dyeing, logos, seals, etc industries; and because of its distinct cost-effective domestic and in various application fields has been completely replace imported similar products, and become the leading companies in the industry.
