Quick Details
-
Measuring Capacitance Range:
-
NA
-
Place of Origin:
-
Jiangsu,China
-
Brand Name:
-
TASI
-
Model Number:
-
TA804B
-
Measuring Inductance Range:
-
NA
-
Operating Temperature:
-
0-40℃
-
Dimensions:
-
148*76*19mm
-
Product Name:
-
Multimeter
-
Model:
-
TA804B
-
Screen:
-
Color screen
-
Measurement mode:
-
Auto/Manual
-
Voltage:
-
600V
-
Resistance:
-
10Ω~60MΩ(1.5%±2)
-
Frequency:
-
40Hz~1KHz
-
Power:
-
1*1.5V AAA battery
-
Size:
-
148*76*19mm
-
Weight:
-
175g(Battery not included)
Quick Details
-
Measuring Current Range:
-
NA
-
Measuring Voltage Range:
-
600V
-
Measuring Resistance Range:
-
10Ω~60MΩ
-
Measuring Capacitance Range:
-
NA
-
Place of Origin:
-
Jiangsu,China
-
Brand Name:
-
TASI
-
Model Number:
-
TA804B
-
Measuring Inductance Range:
-
NA
-
Operating Temperature:
-
0-40℃
-
Dimensions:
-
148*76*19mm
-
Product Name:
-
Multimeter
-
Model:
-
TA804B
-
Screen:
-
Color screen
-
Measurement mode:
-
Auto/Manual
-
Voltage:
-
600V
-
Resistance:
-
10Ω~60MΩ(1.5%±2)
-
Frequency:
-
40Hz~1KHz
-
Power:
-
1*1.5V AAA battery
-
Size:
-
148*76*19mm
-
Weight:
-
175g(Battery not included)

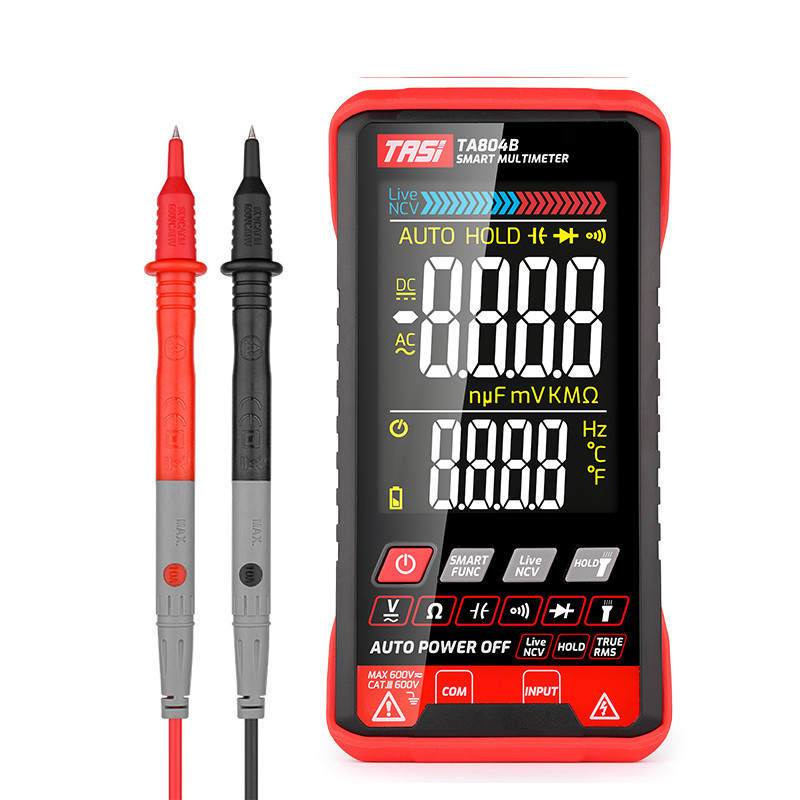

Product Description
| Model | TA804A | TA804B |
| Measurement mode | Auto | Auto/ Manual |
| DC voltage | 0.9V~600V(0.8%±5) | 0.1mV~600V(0.8%±5) |
| AC voltage | 0.9V~600V(1.0%±3) | 1mV~600V(1.0%±3) |
| Resistance | 10Ω~60MΩ(1.5%±2) | 0.1Ω~60MΩ(1.5%±2) |
| Frequency | 40Hz~999Hz | 40Hz~1KHz |
| Capacitance | No | 1nF~60000uF |
| Diode | No | Yes |
| On off beep | ≤50Ω | |
| NCV voltage sensing | Yes | |
| Zero fire line identification | Yes | |
| Ambient temperature measurement | 0℃~40℃ | |
| Flashlight lighting | Yes | |
| Numerical locking | Yes | |
| Low voltage prompt | Yes | |
| Over range prompt | OL | |
| Positive and negative polarity prompt | Yes | |
| Analog bar | 21 segments | |
| Sampling rate | About 3 times per second | |
| Display count | 5000 digit | |
| Automatic shutdown | Yes (can be cancelled manually) | |
| Display screen | Ordinary screen | High definition color screen |
| Weight | About 167g (including battery) | About 175g (including battery) |
| Power Supply | 1.5V x 2 AAA batteries | |
| Size | 148x76x19mm(L x W x H) | |
| Package method | Color box | |
| Individual package weight | 0.3kg | |
| Standard outer box volume | 51*29*41cm | |
| Standard packing quantity | 60PCS | |
| Standard packing weight | 19 .5kg | |
