Quick Details
-
Max.temperature:
-
1700C
-
Heating rate:
-
0-20C/min
-
Heating element:
-
MoSi2 heater
-
Furnace liner:
-
Ceramic fiber board
-
Temperature uniformity:
-
+/-5C
-
Thermocouple:
-
B type
-
Certificated:
-
CE & ISO
-
Power(W):
-
1-120KW
Quick Details
-
Place of Origin:
-
China
-
Type:
-
Moissanite Process Furnace
-
Size:
-
100x100x100 - 900x900x900mm
-
Max.temperature:
-
1700C
-
Heating rate:
-
0-20C/min
-
Heating element:
-
MoSi2 heater
-
Furnace liner:
-
Ceramic fiber board
-
Temperature uniformity:
-
+/-5C
-
Thermocouple:
-
B type
-
Certificated:
-
CE & ISO
-
Power(W):
-
1-120KW

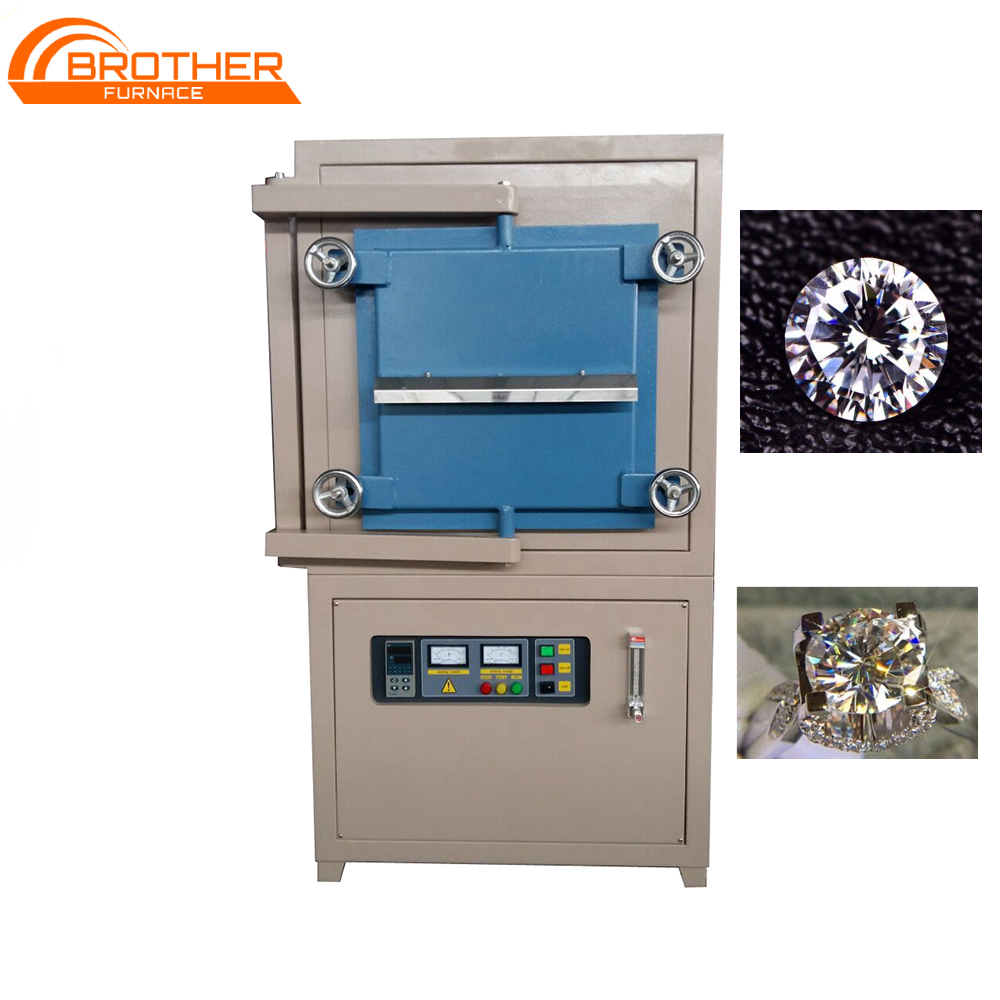

Moissanite Gem Stone Heat Treatment Process Furnace
Our atmosphere furnace can help you to get a perfect fire, high purity
moissanite.
How to make a perfect moissanite?
1.
Cutting
: Use the better cutting method to show the better fire.
2.
Cleaning
: cleaning --- soaking --- cleaning again.
3.
Drying
: drying for 2 hours at 120 degrees in a blast drying oven
4.
Firing
: heating in the special vacuum atmosphere circumstances
Our company has professional technicians to provide complete technology and ensure the perfect moissanite product.
Why Choose Us
Manufacturer with 10+ years' experience
Customers from more than 30 countries choose us
Best service, Fast response
Product Description
Brother inert gas atmosphere furnace/gas oven
Brother inert gas atmosphere furnace/gas oven
Details
Advantages
Furnace Details
|
Moissanite process furnace
|
|
|
|
Chamber size
|
200x200x200mm (Width * Height * Depth) (8 Liter)
|
|
|
Max. temperature
|
1700 oC (<2hour)
|
|
|
Working temperature
|
1600 oC
|
|
|
Temperature controlling
|
● PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor.
|
|
|
|
●30 programmable segments for precise control of heating rate, cooling rate and dwell time.
|
|
|
|
● Built in PID Auto-Tune function with overheating & broken thermocouple broken protection.
|
|
|
|
● Over temperature protection and alarm allows for operation without attendant.
|
|
|
Temperature accuracy
|
±1C
|
|
|
Temperature Uniformity
|
±5C over 120mm @ 1500C
|
|
|
|
±3C over 80mm @ 1500C
|
|
|
Heating rate
|
0-20C /min
|
|
|
Thermocouple
|
B type with 99.7% purity Alumina tube
|
|
|
Heating element
|
MoSi2 Heating Element
|
|
|
Furnace Chamber
|
Two layers of ceramic fiber insulation materials
|
|
|
|
● First layer: 1800°C ceramic fiber board, density 550kgs/m3. Thermal conductivity (1200℃) is only 0.18W/m.k.
|
|
|
|
● Second layer: 1260°C ceramic fiber board, density 350kgs/m3.
|
|
|
Furnace structure
|
Double layer steel casing with dual cooling fan, surface temperature below 60oC
|
|
|
Furnace door
|
● Front-side open
|
|
|
|
● Power cutting off when furnace door open
|
|
|
Working voltage
|
220V, 50HZ
|
|
|
Rated power
|
7KW
|
|
|
Stander chamber size (mm)
|
500x500x500 600x600x600 800x800x800 900x900x900
300x300x400 350x350x500 400x400x400 450x450x450 200x200x200 200x200x300 250x250x300 300x300x300 100x100x100 120x120x130 150x150x150 150x150x200 |
|
