Quick Details
-
Theoretical Shot Volume(cm³):
-
226 cm³
-
Injection Rate (g/s):
-
135.6 g/s
-
Injection Weight (g):
-
201 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
40 mm
-
Weight (KG):
-
3500 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
JT-550R2
-
Brand Name:
-
JIETAI
-
Power (kW):
-
15 kW
-
Plastic Type:
-
Thermoplastic
-
Product name:
-

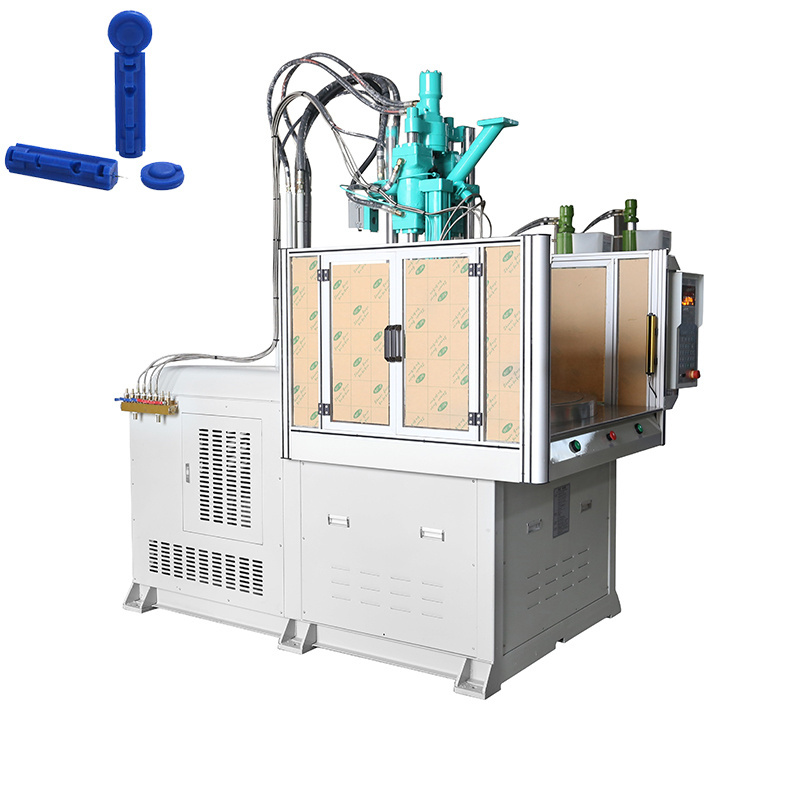

Safety Lancet Needle injection molding machine
-
Screw Diameter:
-
32~40mm
-
Injection pressure:
-
1870~960kg/cm2
-
Disk Station:
-
2-3pcs
-
Min. Mold Thickness:
-
250/200mm
-
Disk Diameter:
-
980mm
-
Machine Color:
-
Customized
-
Total Weight:
-
12KW
-
After-sales Service Provided:
-
Video technical support
-
Marketing Type:
-
Plastic injecting machine
Quick Details
-
Mold Height(mm):
-
180 - 280 mm
-
Ejector Stroke(mm):
-
100 mm
-
Ejector Force(kN):
-
26.5 kN
-
Theoretical Shot Volume(cm³):
-
226 cm³
-
Injection Rate (g/s):
-
135.6 g/s
-
Injection Weight (g):
-
201 g
-
Screw Speed (rpm):
-
0 - 200 rpm
-
Screw diameter (mm):
-
40 mm
-
Weight (KG):
-
3500 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
200 mm
-
Model Number:
-
JT-550R2
-
Brand Name:
-
JIETAI
-
Power (kW):
-
15 kW
-
Plastic Type:
-
Thermoplastic
-
Product name:
-
Safety Lancet Needle injection molding machine
-
Screw Diameter:
-
32~40mm
-
Injection pressure:
-
1870~960kg/cm2
-
Disk Station:
-
2-3pcs
-
Min. Mold Thickness:
-
250/200mm
-
Disk Diameter:
-
980mm
-
Machine Color:
-
Customized
-
Total Weight:
-
12KW
-
After-sales Service Provided:
-
Video technical support
-
Marketing Type:
-
Plastic injecting machine
Machine Description
| MODEL | UNIT | JY-550ST-R | |||
| Injection Unit | Screw Diameter | mm | 32 | 35 | 42 |
| Injection Pressure | kg/cm2 | 1870 | 1418 | 960 | |
| Max.Shot Weight(PS) | g | 102 | 123 | 176 | |
| Injection Rate | mm | 140 | |||
| Clamping Unit | Clamping Force | Tons | 55 | ||
| Disk Station | pc | 2~3 | |||
| Max.Open Distance | mm | 450x400 | |||
| Min.Mold Height | mm | 250/200 | |||
| Opening Stroke | mm | 200 | |||
| Enjection Force | Tons | 1.5 | |||
| Enjection Stroke | mm | 135 | |||
| Power Unit | Max.Hydaulic Pressure | kg/cm2 | 140 | ||
| Pump Motor Power | KW/HP | 7.5/10HP | |||
| Total Weight | KW | 12 | |||
| Other | Machine Weight | Tons | 3.3 | ||
| Machine Dimensions(LxWxH) | m | 1.65x1.9x2.7 | |||
| Shipping Weight | Tons | 3.4 | |||
| Shipping Measurements(LxWxH) | m | 1.8x2.05x2.8 | |||
Machine Applications
Our Company
Why Choose Us
Packaging&Delivery
1.Delivery days:30 days after confirming order,detail delivery date should be decided
according
to production season and order quantity.
