Quick Details
-
Model Number:
-
FS-61/FS-62 -2A
-
Max. Current:
-
45mA
-
Certification:
-
IEC60601
-
Degree of Protection:
-
IP68
-
Supply Voltage (Vs):
-
H1:3.8~30VDC,H2:4.5~10.5VDC,H3:60VAC
-
Mechanical Life:
-
10,000,000
-
Body:
-
Robust Aluminum Alloy Die Cast
-
Output Type:
-
Ratiometric
Quick Details
-
Max. Voltage:
-
30VDC
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
SUNS
-
Model Number:
-
FS-61/FS-62 -2A
-
Max. Current:
-
45mA
-
Certification:
-
IEC60601
-
Degree of Protection:
-
IP68
-
Supply Voltage (Vs):
-
H1:3.8~30VDC,H2:4.5~10.5VDC,H3:60VAC
-
Mechanical Life:
-
10,000,000
-
Body:
-
Robust Aluminum Alloy Die Cast
-
Output Type:
-
Ratiometric
| 1)Robust aluminum alloy die cast body | |
| 2)Linear Hall Effect Output | |
| 3)Water-proof to IP68 | |
|
4)Output can be directly connected to most
electronics circuitry such as microprocessors integrated logic, discrete transistors and SCRs with compatible voltage specifications |
|
| Specifications: | |
| Supply Voltage (Vs) | H1:3.8-30VDC H2:4.5-10.5VDC,H3:60VAC |
| Supply Current | H1:45mA H2:7mA H3:20mA |
| Output Type | Ratiometric |
| Output Voltage | H1:3.8-30VDC,H2:2.5-9.5VDC H3:6-9.5VDC |
| Output Current | H1:45mA,H2/H3:5mA |
| Service Life: | Mechanically 10000000 (operations) |
| Operating Temperature: | -40~+100℃(-40~+212°F) |
| Degree of Protection: | IPX8 |

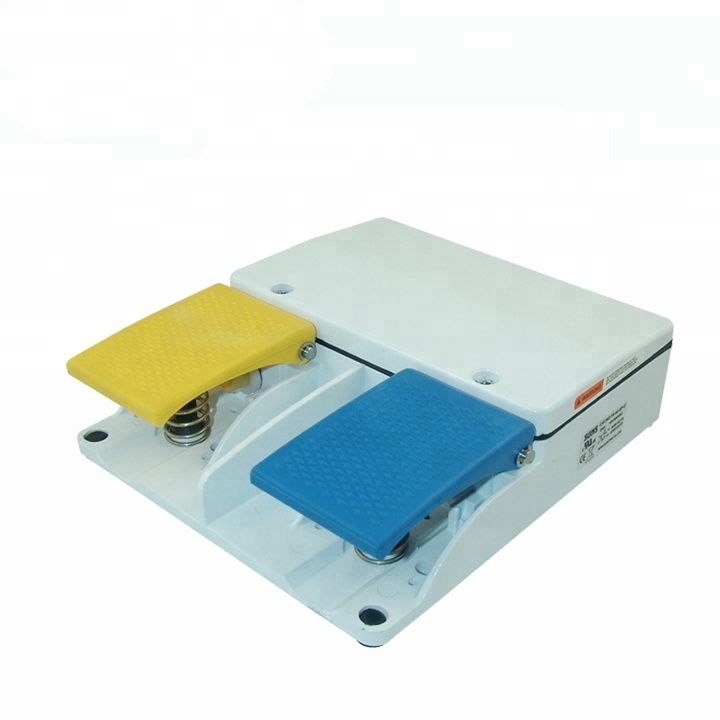

Medical Foot Switch
