- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Samsr
-
Model Number:
-
K20PA24AA12-8-001
-
Current / Phase:
-
0.3A
-
Product name:
-

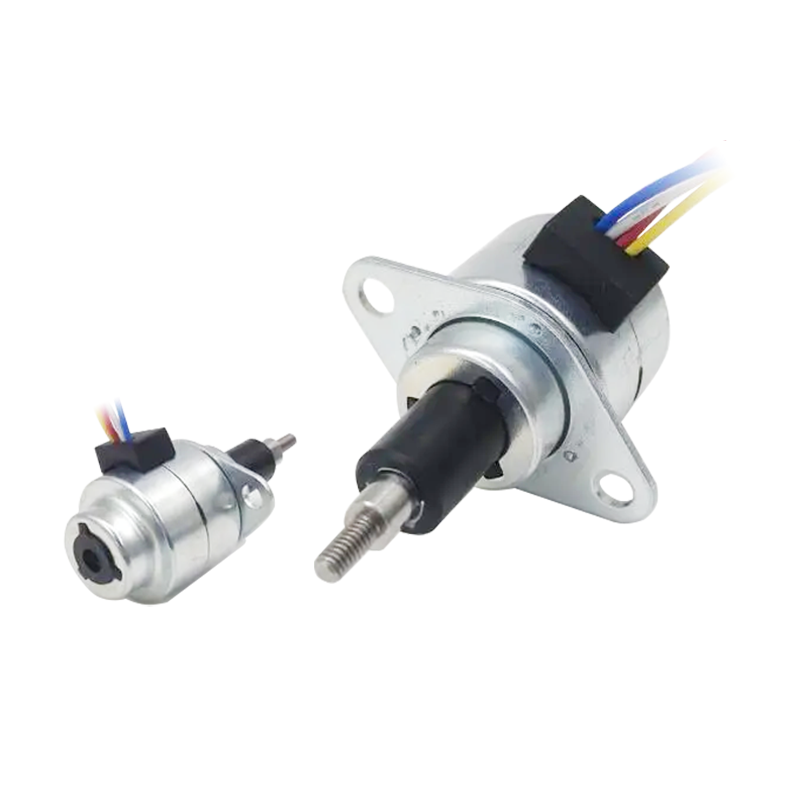

Samsr high quality micro 12v pm linear stepper motor 20mm captive
-
Rated Voltage:
-
12V
-
Resistance:
-
47Ω
-
Current:
-
0.3A
-
Lead:
-
4
-
Shaft Diameter:
-
2.5mm
-
Step Increment:
-
0.0254mm
-
Motor length:
-
44.2mm
-
Max Stroke:
-
8mm
-
Weight:
-
0.06kg
Quick Details
-
Phase:
-
2
-
Type:
-
Permanent Magnet
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Samsr
-
Model Number:
-
K20PA24AA12-8-001
-
Current / Phase:
-
0.3A
-
Product name:
-
Samsr high quality micro 12v pm linear stepper motor 20mm captive
-
Rated Voltage:
-
12V
-
Resistance:
-
47Ω
-
Current:
-
0.3A
-
Lead:
-
4
-
Shaft Diameter:
-
2.5mm
-
Step Increment:
-
0.0254mm
-
Motor length:
-
44.2mm
-
Max Stroke:
-
8mm
-
Weight:
-
0.06kg
| Brand | Samsr |
| Model | K20PA24AA12-8-001 |
| Rated voltage | 12V |
| Motor size | 20*30*44.2mm |
| Certification | CE, ISO, ROHS |
| Name | Model | Rated Voltage | Rated Current | Resistance | Max Stroke | Thrust | Size |
| PM 2 0 mm | K20PA24AA12-8-001 | 12V | 0.3A | 47ohm | 8mm | 10N | 21.4*30*44.2mm |
| PM 25mm | K20PA24AA12-8-001 | 12V | 0.2A | 53ohm | 24mm | 20N | 25*35*60mm |
| PM35mm | K35PA14P12-22 | 12V | 0.4A | 35ohm | 22N | 60N | 35*47*79.4mm |
