Quick Details
-
D/C:
-
30V
-
Place of Origin:
-
Japan
-
Application:
-
currency
-
Cross Reference:
-
SRRM342800
-
Brand:
-
Rotary Switch
-
Color:
-
Blue
-
Operating Temperature:
-
-10°C to +60°C
-
Switch Function:
-
Audio tuning
-
Current Rating (Amps):
-
0.25A
-
Voltage Rating - DC:
-
0.25A 30V DC
-
Packaging:
-
-
-
Voltage Rating:
-
0.25A 30V DC
-
Contact resistance(Initial):
-
20mΩ max
-
Rotational torque:
-
80±30mN m
-
Operating life:
-
10000cycles
-
Actuator length:
-
20mm
-
Actuator configuration:
-
18-tooth serration
-
Changeover timing:
-
Shorting
-
Changeover angle:
-
30±3°
-
positions:
-
3
-
poles:
-
4
Quick Details
-
Brand Name:
-
ALPS
-
Model Number:
-
SRRM433700
-
Type:
-
Switch Rotary
-
D/C:
-
30V
-
Place of Origin:
-
Japan
-
Application:
-
currency
-
Cross Reference:
-
SRRM342800
-
Brand:
-
Rotary Switch
-
Color:
-
Blue
-
Operating Temperature:
-
-10°C to +60°C
-
Switch Function:
-
Audio tuning
-
Current Rating (Amps):
-
0.25A
-
Voltage Rating - DC:
-
0.25A 30V DC
-
Packaging:
-
-
-
Voltage Rating:
-
0.25A 30V DC
-
Contact resistance(Initial):
-
20mΩ max
-
Rotational torque:
-
80±30mN m
-
Operating life:
-
10000cycles
-
Actuator length:
-
20mm
-
Actuator configuration:
-
18-tooth serration
-
Changeover timing:
-
Shorting
-
Changeover angle:
-
30±3°
-
positions:
-
3
-
poles:
-
4

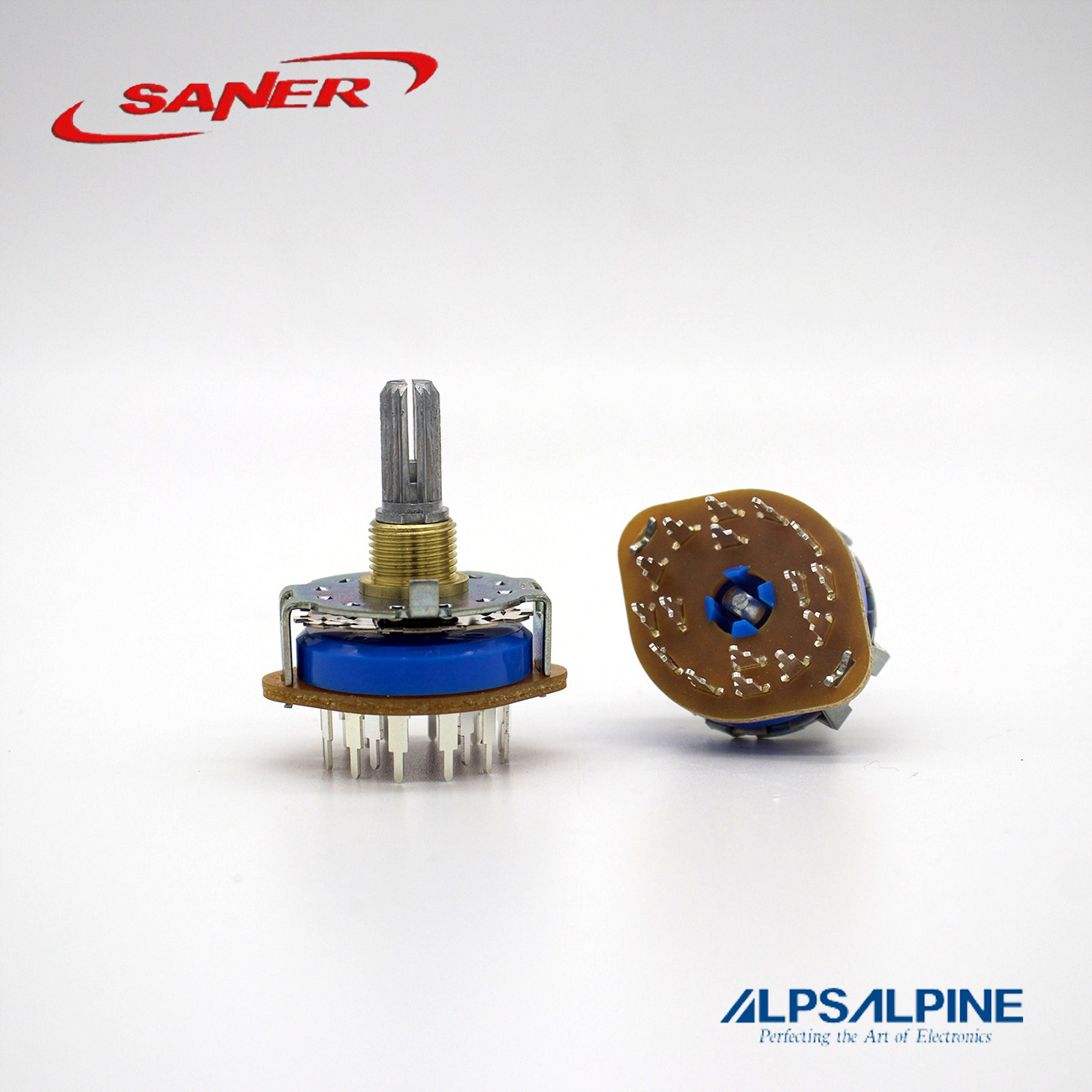

Product Description
Specification
|
item
|
value
|
|
Place of Origin
|
Japan
|
|
Brand Name
|
ALPS
|
|
Model Number
|
SRRM433700
|
|
Type
|
Switch Rotary
|
|
Application
|
currency
|
|
Supplier Type
|
Agency
|
|
Media Available
|
datasheet, Photo
|
|
Brand
|
Rotary Switch
|
|
Mounting Feature
|
Not Applicable
|
|
Color
|
Blue
|
|
Material
|
PVC
|
|
Operating Temperature
|
-10°C to +60°C
|
|
Voltage Rating - DC
|
0.25A 30V DC
|
|
Voltage
|
3V
|
|
Packaging
|
-
|
|
Voltage Rating
|
0.25A 30V DC
|
|
D/C
|
30V
|
|
Contact resistance(Initial)
|
20mΩ max
|
|
Rotational torque
|
80±30mN m
|
|
Operating life
|
10000cycles
|
|
Actuator length
|
20mm
|
|
Actuator configuration
|
18-tooth serration
|
|
Changeover timing
|
Shorting
|
|
Changeover angle
|
30±3°
|
|
positions
|
3
|
|
poles
|
4
|
