Quick Details
-
Brand Name:
-
MOMO
-
Model Number:
-
MM-VAH24-W-SA
-
Voltage:
-
AC110V/220V
-
Cache Capacity:
-
8MB
-
Cutter Pressure:
-
50g~2000g ( 160 setting adjustable )
-
Cutting Speed:
-
750mm/s
-
Driver:
-
High Speed Step Motor
-
Cutting Length:
-
Unlimited Cutting Plotter
-
Repeat Cutting:
-
0.082mm
-
Size:
-
1000 x 375 x 370mm
-
Camera Positioning:
-
Camera for Auto contour cutting
-
ARMS:
-
Auto Registration Marking Sensor
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Material:
-
Support Flex
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Pinch wheel:
-
24inch with 4 pinch wheels
-
Cutting Precision:
-
+/- 0.01mm
-
Low noise:
-
less 60dB
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Multi Connection:
-
WIFI, USB , U Disk
Quick Details
-
Paper Feed Width:
-
720mm
-
Cutting Width:
-
630mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOMO
-
Model Number:
-
MM-VAH24-W-SA
-
Voltage:
-
AC110V/220V
-
Cache Capacity:
-
8MB
-
Cutter Pressure:
-
50g~2000g ( 160 setting adjustable )
-
Cutting Speed:
-
750mm/s
-
Driver:
-
High Speed Step Motor
-
Cutting Length:
-
Unlimited Cutting Plotter
-
Repeat Cutting:
-
0.082mm
-
Size:
-
1000 x 375 x 370mm
-
Camera Positioning:
-
Camera for Auto contour cutting
-
ARMS:
-
Auto Registration Marking Sensor
-
Mark Detect:
-
Support any color or any shape Mark Auto Detection
-
Material:
-
Support Flex
-
Pinch Wheel Design:
-
Dual spring, Pinch wheel adjustable
-
Pinch wheel:
-
24inch with 4 pinch wheels
-
Cutting Precision:
-
+/- 0.01mm
-
Low noise:
-
less 60dB
-
Cutting Letter:
-
Support 2mm letter cutting no sawtooth
-
Multi Connection:
-
WIFI, USB , U Disk
Product Description

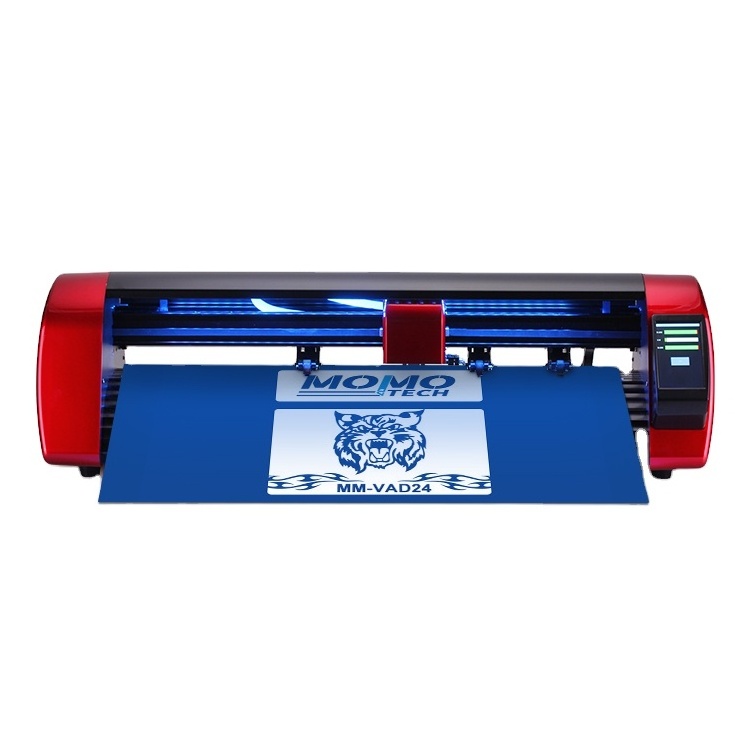

a0 auto mimaki contour WIFI cutting plotter machine with Camera Price hobby ploter de corte graphtec vinyl plotter cutter
Main Features
|
Specification for 24 Single head cutting plotter
|
|
|
|
|||
|
Model
|
MM-VAH24-W-SA
|
|
|
|||
|
Acceptable media width
|
720 mm
|
|
|
|||
|
Max cutting width
|
630 mm
|
|
|
|||
|
|
24 inch
|
|
|
|||
|
Cutting head
|
Single
|
|
|
|||
|
Camera/Scanner
|
Support
|
|
|
|||
|
Auto Contour cutting
|
Fast ,automatic and high precision contour cut by using camera.
|
|
|
|||
|
Operation
|
4.3" TFT LCD Large touch screen
|
|
|
|||
|
Interface
|
HD large screen full-color APP information function display
|
|
|
|||
|
Connector
|
USB, U disk, WIFI
|
|
|
|||
|
Contour cutting & calibration
|
Easy use and high precision calibrate
|
|
|
|||
|
Mainboard
|
32bit ARM cortex M4 MCU,8M memory. Support remote one key update.
|
|
|
|||
|
Location mode
|
Bound system. set origin freely
|
|
|
|||
|
Driver
|
Digital DC stepper motor,microstep driving
|
|
|
|||
|
Command
|
HP-GL, DMPL
|
|
|
|||
|
Max moving speed
|
960mm/s
|
|
|
|||
|
Max cutting speed
|
750mm/s
|
|
|
|||
|
Max cutting thickness
|
1mm
|
|
|
|||
|
Force
|
Single head: 50g~2000g ( 160 setting adjustable )
|
|
|
|||
|
Cutting precision
|
< 0.01mm
|
|
|
|||
|
Repeat precision
|
0.082mm
|
|
|
|||
|
Power supply
|
AC100~240V/50Hz~60Hz
|
|
|
|||
|
Working environment
|
+5℃~ +45℃，relative humidity 30%~70%
|
|
|
|||
|
Color
|
White/black/red（optional）
|
|
|
|||
|
Bracket
|
Optional
|
|
|
|||
|
Size
|
1000 x 375 x 370mm
|
|
|
|||
|
Packing G/N weight
|
16.8 / 14kg
|
|
|
|||
|
Software
|
SignMaster Cut / Flexi / Signcut / CorelDRAW driver
|
|
|
|||
|
Operation system
|
Windows 2000 / XP / 2003 / win7 / 2003 / win7 /win10
|
|
|
|||
|
|
MAC OSX10.2.8 or above
|
|
|
|||
Product Application
Plotter Advantages
Detailed Images
Camera/Scanner + ARM 7.0
It can Automatic Registration Mark Detection to swift Automatic Contour cutting, and Automatic Calibrating offset value, Automatic Repeat Cutting
. Support remote one-key upgrading.
Dual heads/Tools Cutting Optional
4.3 inch Large Touch Screen
Settings can be easily set up using the large 4.3-inch LCD
Usb, U disk, WIFI, Mobile App
Multi-way to meet more demand.
USB plug&play, no need USB driver
U disk support offline cutting
WIFI stable than bluetooth
Mobile App remote data transmit for cutting
