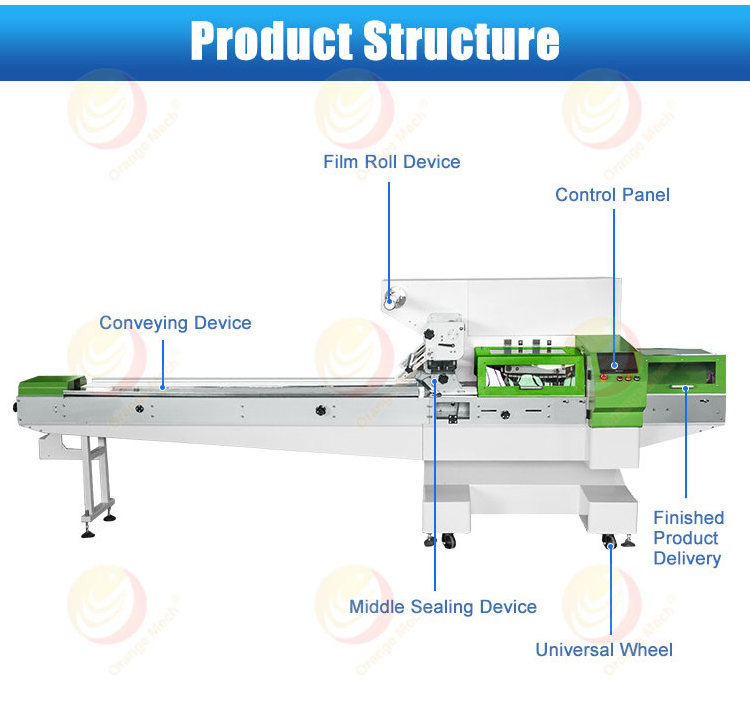

The multi-linked film reel is used to coordinate the film pulling process, which is suitable for multi-roll film materials, the film pulling is smooth and not stuck.
Contact us For product pricing, customization, or other inquiries:
Contact Us
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orange mech
-
Dimension(L*W*H):
-
3370*670*1450mm
-
Name:
-
vegetable pack machine
-
Bag type:
-
Back Sealing
-
Film width:
-
250/350/450/600/800mm
-
Bag length:
-
65-6000mm
-
Bag width:
-
30-400mm
-
Product height:
-
65-100mm
-
Packaging materials:
-
OPP,CPP,KOP,ALU-FILM
-
Material:
-
304 Stainless Steel Material
-
Film material:
-
OPP CPP PET PE
-
Advantage:
-
Easy Operation High Efficiency
Quick Details
-
Function:
-
Wrapping, Sealing
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
300
-
Voltage:
-
220v
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orange mech
-
Dimension(L*W*H):
-
3370*670*1450mm
-
Name:
-
vegetable pack machine
-
Bag type:
-
Back Sealing
-
Film width:
-
250/350/450/600/800mm
-
Bag length:
-
65-6000mm
-
Bag width:
-
30-400mm
-
Product height:
-
65-100mm
-
Packaging materials:
-
OPP,CPP,KOP,ALU-FILM
-
Material:
-
304 Stainless Steel Material
-
Film material:
-
OPP CPP PET PE
-
Advantage:
-
Easy Operation High Efficiency
Pillow Flow Bar Vegetable Leaf Grape Cracker Roll Wrapping Mini Machine for Horizontal Bag Package
Product Description
Product Parameters
|
Model
|
OR-ZBJ-250S
|
OR-ZBJ-250X
|
OR-ZBJ-350S
|
OR-ZBJ-350X
|
|
Film width
|
Max：250mm
|
Max：250mm
|
Max：350mm
|
Max：350mm
|
|
Bag length
|
65-190mm120-280mm
|
65-6000mm
|
90-330mm
|
90-330mm
|
|
Bag width
|
30-120mm
|
30-120mm
|
30-160mm
|
30-160mm
|
|
Product height
|
Max：65mm
|
Max：65mm
|
Max：70mm
|
Max：70mm
|
|
Film roll diameter
|
Max：250mm
|
Max：320mm
|
Max：320mm
|
Max：320mm
|
|
Packaging speed
|
30-180bag/min
|
30-180bag/min
|
60-120bag/min
|
30-120bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
|
Power
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
|
Machine size
|
3370*670*1450mm
|
3370*670*1450mm
|
3960*770*1450mm
|
3960*770*1450mm
|
|
Machine weight
|
300Kg
|
300Kg
|
350Kg
|
350Kg
|
|
Model
|
OR-ZBJ-450S
|
OR-ZBJ-450X
|
OR-ZBJ-600S
|
OR-ZBJ-600X
|
|
Film width
|
Max：450mm
|
Max：450mm
|
Max：600mm
|
Max：600mm
|
|
Bag length
|
130-450mm
|
130-6000mm
|
130-450mm
|
150-6000mm
|
|
Bag width
|
60-200mm
|
60-200mm
|
80-280mm
|
80-280mm
|
|
Product height
|
Max：90mm
|
Max：90mm
|
Max：110mm
|
Max：100mm
|
|
Film roll diameter
|
Max：320mm
|
Max：320mm
|
Max：400mm
|
Max：320mm
|
|
Packaging speed
|
25-120bag/min
|
25-120bag/min
|
20-100bag/min
|
20-80bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
|
Power
|
220V 50/60Hz 2.6KW
|
220V 50/60Hz 2.6KW
|
220V 50/60Hz
3KW
|
220V 50/60Hz
3KW
|
|
Machine size
|
4020*820*1450mm
|
4020*820*1450mm
|
4380*970*1500mm
|
4380*970*1500 mm
|
|
Machine weight
|
300Kg
|
300Kg
|
300Kg
|
300Kg
|
|
Model
|
OR-DMZB-600XQD
|
OR-DMZB-800X
|
|
Film width
|
Max：600mm
|
Max：800mm
|
|
Bag length
|
150-6000mm
|
150-6000mm
|
|
Bag width
|
80-280mm
|
100-400mm
|
|
Product height
|
Max：150mm
|
Max：100mm
|
|
Film roll diameter
|
Max：320mm
|
Max：300mm
|
|
Packaging speed
|
10-60bag/min
|
25-150bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP,OPP/CPP,KOP/CPP,ALU-FILM
|
|
Power
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 4.5KW
|
|
Machine size
|
4200*1000*1450mm
|
4300*1200*1500 mm
|
|
Machine weight
|
500Kg
|
650Kg
|
Product Details
Supports multiple languages, easy to use and can store multiple sets of parameters.
Customized on demand, the material contact parts are made of food-grade materials, which meet hygienic standards.
The rotary constant temperature hot air cutter seals both ends of the product to avoid folded edges and air leakage at the seal.
Safety first, in response to unexpected situations, the machine can be stopped in an emergency.
Provide automatic printing product production date, filling gas and other functions.
