Quick Details
-
Roll Ratio(Front/Back):
-
1:1.27
-
Cooling Mode:
-
Pressurized Cooling Rotating Joint
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
POWER
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2528*1053*1235 mm
-
Power (kW):
-
75/55
-
Weight (KG):
-
2800 KG
-
Linear Speed (M/Min):
-
11.8
-
Produce Weight(Once):
-
8-12 KG
-
Motor Power:
-
15KW*
-
Bush:
-
Bearing Type
-
Receiver Material:
-
Stainless Steel
-
Emergency Stop:
-
Press Button Brake & Foot Brake
-
Transmission:
-
Low Noise Gear Box Gear
-
Remarks:
-
* Ratio & Motor Power can be customized
-
Certification:
-
CE & ISO
Quick Details
-
Diameter of Roll(mm):
-
230 mm
-
Rotation Speed of Front Roll(rpm):
-
16.3 rpm
-
Length of Roll(mm):
-
635 mm
-
Roll Ratio(Front/Back):
-
1:1.27
-
Cooling Mode:
-
Pressurized Cooling Rotating Joint
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
POWER
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2528*1053*1235 mm
-
Power (kW):
-
75/55
-
Weight (KG):
-
2800 KG
-
Linear Speed (M/Min):
-
11.8
-
Produce Weight(Once):
-
8-12 KG
-
Motor Power:
-
15KW*
-
Bush:
-
Bearing Type
-
Receiver Material:
-
Stainless Steel
-
Emergency Stop:
-
Press Button Brake & Foot Brake
-
Transmission:
-
Low Noise Gear Box Gear
-
Remarks:
-
* Ratio & Motor Power can be customized
-
Certification:
-
CE & ISO
Related Products

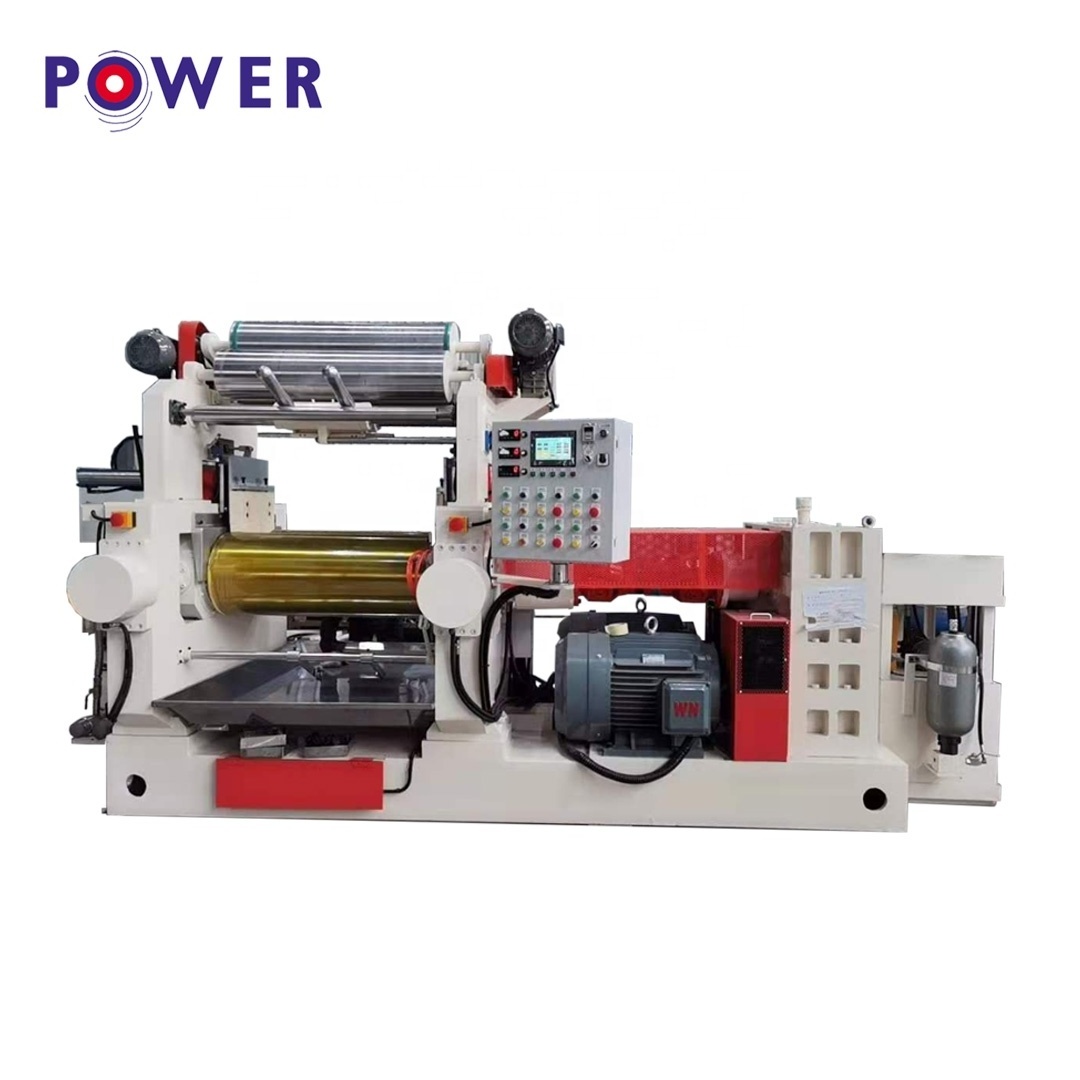

Product Description
Application:
Suitable to prepare plastic compound, mix rubber or conduct hot refining and molding.
Product Feature:
1.Made of high quality material
2.Easy installation directly on plain ground
3.Enforce cycle cooling system
4.Safe and efficient
Production Description:
1.Enhance the intensity of the machine body by using more carbon steel and less wrought iron.
2.Machine can be placed on the plain ground directly, other installation method is unnecessary.
3.The roller bearing supports the heavy loading and high temperature.Using roll bearing double the size and use less lubrication oil, able to use longer and easy to maintain.
4.All the parts of the machine are processed by rust proofing with chromium, to prevent the key parts polluted.
5.Enforce cycle cooling system, enhance the cooling effect by using spin joint and enlarge pipe.
6.Using energizing mechanic power off system, guarantee the well and speedy function under the long term using.
|
Model
|
φ9"
|
φ12"
|
φ14"
|
φ16"
|
||||
|
Roll Size (D/L)
|
230*635
|
300*700
|
360*920
|
400*1060
|
||||
|
Linear Speed (M/Min)
|
11.8
|
15.1
|
19
|
20.65
|
||||
|
Front Roll RPM
|
16.3
|
16.1
|
16.5
|
16.44
|
||||
|
Roll Ratio (Front/Back)
|
1:1.27*
|
1:1.27*
|
1:1.27*
|
1:1.27*
|
||||
|
Produce Weight (Once)
|
8-12 KG
|
14-20 KG
|
20-25 KG
|
25-35 KG
|
||||
|
Motor Power
|
15KW*
|
22KW*
|
37KW/30KW*
|
55KW/45KW*
|
||||
|
Weight (KG)
|
2800
|
4300
|
5800
|
8000
|
||||
|
Dimensions
|
2528*1053*1235
|
2754*1275*1657
|
3700*1425*1870
|
4000*1500*1870
|
||||
|
Bush
|
Bearing Type
|
Bearing Type
|
Bearing Type
|
Bearing Type
|
||||
|
Receiver Material
|
Stainless Steel
|
Stainless Steel
|
Stainless Steel
|
Stainless Steel
|
||||
|
Cooling Mode
|
Pressurized Cooling Rotating Joint
|
|
|
|
||||
|
Emergency Stop
|
Press Button Brake & Foot Brake
|
|
|
|
||||
|
Transmission
|
Low Noise Gear Box Gear
|
|
|
|
||||
|
* Ratio & Motor Power can be customized by different material requirements.
|
|
|
|
|
||||
|
Model
|
φ18"
|
φ22"
|
φ24"
|
φ26"
|
||||
|
Roll Size (D/L)
|
450*1200
|
55*1530
|
610*1830
|
660*2130
|
||||
|
Linear Speed (M/Min)
|
23.22
|
28.29
|
31.6
|
34.2
|
||||
|
Front Roll RPM
|
16.43
|
16.38
|
16.5
|
16.5
|
||||
|
Roll Ratio (Front/Back)
|
1:1.27*
|
1:1.29*
|
1:1.29*
|
1:1.29*
|
||||
|
Produce Weight(Once)
|
30-50 KG
|
50-60 KG
|
120-130 KG
|
160-170 KG
|
||||
|
Motor Power
|
75KW/55KW*
|
110KW/90KW*
|
160KW/132KW*
|
220KW/160KW*
|
||||
|
Weight (KG)
|
12800
|
18500
|
25500
|
32000
|
||||
|
Dimensions
|
4560*1670*2020
|
5370*1950*2200
|
6100*2050*2200
|
6240*3350*2670
|
||||
|
Bush
|
Bearing Type
|
Bearing Type
|
Bearing Type
|
Bearing Type
|
||||
|
Receiver Material
|
Stainless Steel
|
Stainless Steel
|
Stainless Steel
|
Stainless Steel
|
||||
|
Cooling Mode
|
|
|
|
|
||||
|
Emergency Stop
|
Press Button Brake & Foot Brake
|
|
|
|
||||
|
Transmission
|
Low Noise Gear Box Gear
|
|
|
|
||||
|
* Ratio & Motor Power can be customized by different material requirements.
|
|
|
|
|
||||
