Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Myoung
-
Dimension(L*W*H):
-
1100*780*430mm
-
Weight (KG):
-
140 KG
-
Product name:
-
Co2 laser engraving machine
-
Software:
-
Ruida
-
Motor:
-
Leadshine Stepper Motor
-
Working area:
-
600x400mm
-
Working Voltage:
-
110V/220V
-
Z-Axis Travel:
-
150mm
-
Item:
-
OEM
-
Certification:
-
ce
Quick Details
-
Engraving Area:
-
600mm*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-1500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Myoung
-
Dimension(L*W*H):
-
1100*780*430mm
-
Weight (KG):
-
140 KG
-
Product name:
-
Co2 laser engraving machine
-
Software:
-
Ruida
-
Motor:
-
Leadshine Stepper Motor
-
Working area:
-
600x400mm
-
Working Voltage:
-
110V/220V
-
Z-Axis Travel:
-
150mm
-
Item:
-
OEM
-
Certification:
-
ce
Products Description
Product Paramenters
|
Model
|
Budget 5
|
Budget 6
|
Budget 7
|
||
|
Work Space
|
500*300mm
|
600*400mm
|
700*500mm
|
||
|
Laser Power
|
40W-60W
|
40W-60W
|
40W-80W
|
||
|
Machine Weight
|
120kg
|
140kg
|
160kg
|
||
|
Machine Size
|
1000*680*430mm
|
1100*780*430mm
|
1200*880*530mm
|
||
|
Z-axis Travel
|
150mm
|
150mm
|
150mm
|
||
|
Repeat Precision
|
±0.1mm
|
±0.1mm
|
±0.1mm
|
||
|
Positioning Precision
|
＜0.1mm
|
＜0.1mm
|
＜0.1mm
|
||
|
Cooling
|
Built-in Water Pump
|
Built-in Water Pump
|
Built-in Water Pump
|
||
|
Air Supply
|
Built-in Air Pump
|
Built-in Air Pump
|
Built-in Air Pump
|
||
|
Exhaust Blower
|
Built-in Blower
|
Built-in Blower
|
Built-in Blower
|
||
|
Optional
|
Rotary Device, Fume Extractor, Honeycomb Table
|
|
|
||
Possibilities And Materials
Our Advantages
6063 aluminum is light and high
strength, suitable for rail support and installation.with built-in 12mm linear square rail and outer covering belt to protect the guide from pollution and corrosion,plays a good protection role in harsh oil environment.

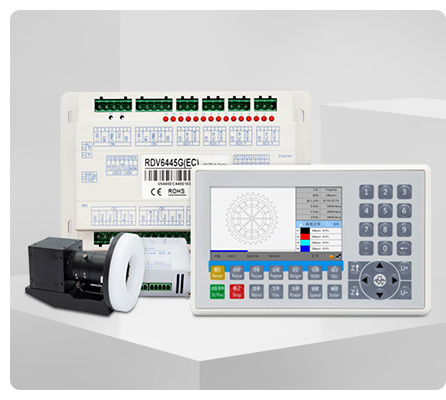

The main board adopts RD6445 high-end DSP customized model, the panel operation page has full
functions,easy to use, stable performance,arge screen display,and real-time engraving monitoring display.

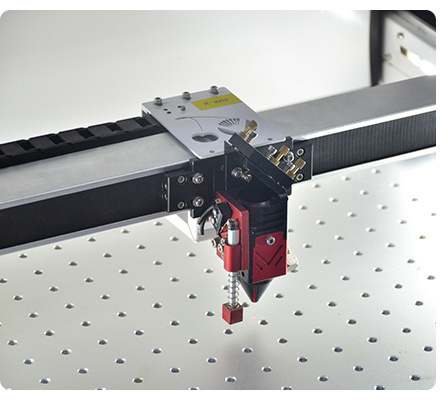

Red light and laser combined
beam display, more intuitive in
engraving preview,and more
convenient and quick to adjust
the optical path.
The auto-focus system adopts 57 stepping motors, which has good mute effect and precise Combine red dot pointer Red light and laser combined beam display, more intuitive in engraving preview,and more convenient and quick to adjust the optical path. focus,and realizes one-button auto-focus function.
Details Images
The stainless steel screw rod is used, and the lifting nut is made of copper materialwhich has a long service life and corrosion resistance.
The laser head has a blowing auxiliary function. The auxiliary blowing system is to blow the smoke backwards, and blow the smoke to the rear exhaust and suction.
Using 12025 high-speed fans to cool the
water in the laser tube
All-in-one chiller, air pump, smoke evacuator
Enterprise information
Foshan Myoung Laser Technology Co., Ltd.
was established in 2012. It is an emerging enterprise of laser equipments integrating R & D, manufacturing, sales and service. lt is engaged in laser process research and development, laser equipment design and
development, production, technical support, customized services and consulting .The mair products include aser cutting machines, laser welding machines, aser marking machines. industry-specific and automated laser equipments,etc.
development, production, technical support, customized services and consulting .The mair products include aser cutting machines, laser welding machines, aser marking machines. industry-specific and automated laser equipments,etc.
FAQ
Q1: What materials is this machine suitable for?
Mainly used for acrylic, glass, leather, MDF, PLC, stone, wood, crystal and other materials laser engraving.
Q2: lf we don't know how to use the machine, do you have teaching ortraining class for us?
Yes. We have fully customers service training video for your kindlyreference, attached will also be machine cutting parameters and worknotes. lfyou still confused about it, please contact our sales and we willhelp you any mins as your service.
Q3: How long is the delivery time?
For standard machines, it would be 1-2 weeks; For non-standard machinesand customized machines according to clien's specific requirements, itwould be 3-4 weeks.
Q4: How do you guarantee the quality of the machine?
The whole production will be under regular inspection andstrict quality control. Myoung machines will be tested before shipmentwith our fully quality control system. CE Certificate qualified, meetEuropean and American standard.ean and American standard.
Q5: Do you arrange shipment for the machines?
Yes, any shipping terms could be negotiable. For EXW price,clients needto arrange shipment by themselves or their agents.
