Quick Details
-
Graphic Format Supported:
-
PLT, DXF
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinan Tianhong
-
Dimension(L*W*H):
-
4050x2270x2100mm
-
Weight (KG):
-
1600 KG
-

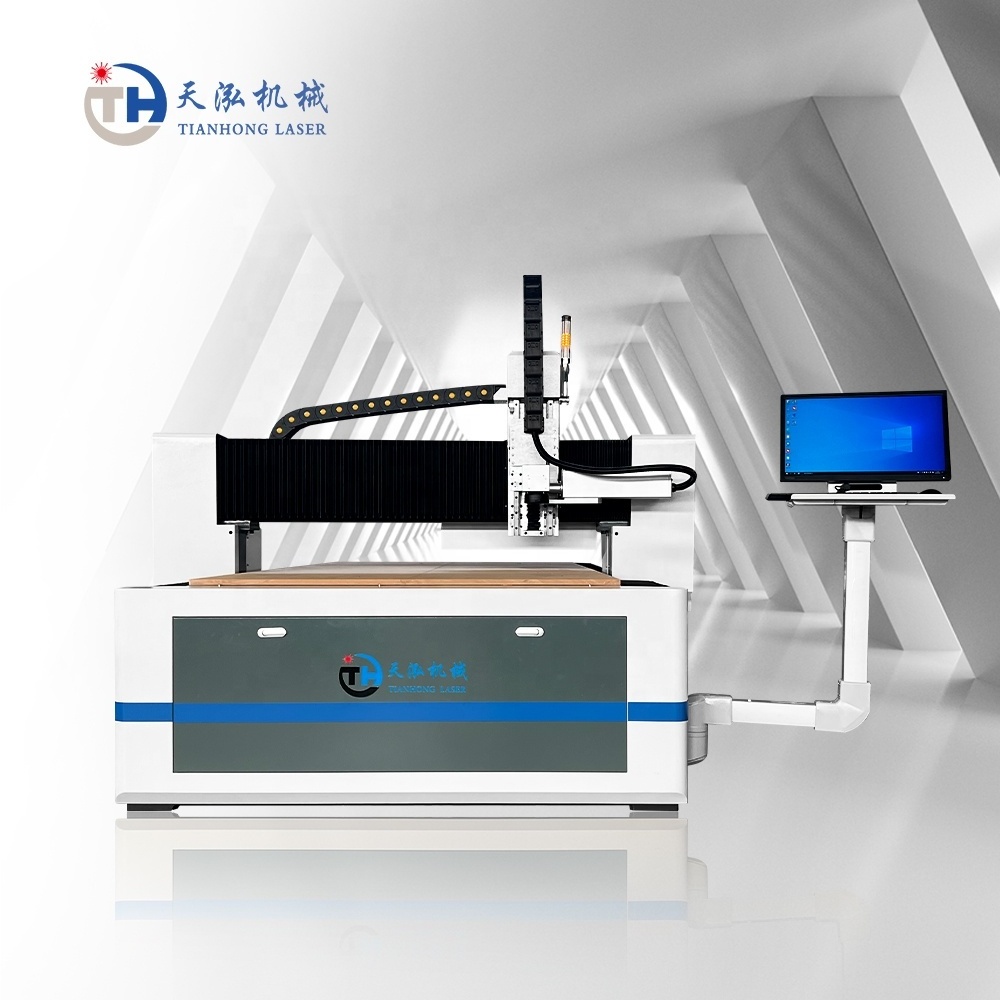

Product name:
-
Large Size Fiber Laser Markng Machine
-
Laser Power:
-
100W/120W/200W
-
Laser source:
-
JPT/GZ Mopa/Orion
-
Working Area:
-
1300x2500mm/1500x3000mm
-
Lifespan of laser device:
-
100000hours
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0-1mm
Quick Details
-
Engraving Area:
-
1300*2500mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
8000-10000mm/s
-
Graphic Format Supported:
-
PLT, DXF
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Jinan Tianhong
-
Dimension(L*W*H):
-
4050x2270x2100mm
-
Weight (KG):
-
1600 KG
-
Product name:
-
Large Size Fiber Laser Markng Machine
-
Laser Power:
-
100W/120W/200W
-
Laser source:
-
JPT/GZ Mopa/Orion
-
Working Area:
-
1300x2500mm/1500x3000mm
-
Lifespan of laser device:
-
100000hours
-
Marking Speed:
-
0-7000mm/s
-
Laser wavelength:
-
1064nm
-
Marking Depth:
-
0-1mm
Product Description
|
Machine Parameter Specification:
|
|
|
|
|
||||
|
Model
|
TH-1325F/TH-1530F/TH-2030F
|
|
|
|
||||
|
Working Area
|
1300*2500mm/1500*3000mm,2000*3000mm(size support customized)
|
|
|
|
||||
|
Suitable materials
|
All Metals,Sliver mirror,aluminum mirror,copper-free mirror,etc.
|
|
|
|
||||
|
Laser Source
|
Full power multi-mode anti-high-reflection type
|
|
|
|
||||
|
Wavelength
|
1064nm
|
|
|
|
||||
|
Precision
|
0.01mm
|
|
|
|
||||
|
Electronic control system
|
Taiwan MEAN WELL Brand
|
|
|
|
||||
|
Control switch
|
France Schneider Electric Brand
|
|
|
|
||||
|
Guide
|
Linear Guide(Taiwan HIWIN Brand)
|
|
|
|
||||
|
Galvo head
|
Imported high speed(Micron level accuracy,speed 12000mm/s)
|
|
|
|
||||
|
Sensor
|
Omron Brand(Japan)
|
|
|
|
||||
|
Switch
|
DELIXI Brand
|
|
|
|
||||
|
Fastener screws
|
304 stainles steel
|
|
|
|
||||
|
Electrical cable
|
Special flexible cable(Brand Changtong Cable)
|
|
|
|
||||
|
Machine structure
|
Thickened steel one-piece welded bed; high-precision machine tool grinding and milling;
|
|
|
|
||||
|
Control method
|
4 sets high precision 750w pure servo motors+Precision reducer;Double drive gantry type transmission
|
|
|
|
||||
|
Positioning tool
|
Aluminum alloy four-station positioning tools
|
|
|
|
||||
|
Cooling Type
|
Air cooled
|
|
|
|
||||
|
Control System
|
CNC 5 axis motion system (Impoted Taiwan Control System)
|
|
|
|
||||
|
Marking Format
|
DXF、PLT
|
|
|
|
||||
|
Working speed
|
0-40m/min
|
|
|
|
||||
|
Working Voltage
|
AC190-240V,50-60Hz
|
|
|
|
||||
|
Package dimension
& G.W.
|
4050x2270x2100mm
1600kgs
|
|
|
|
||||
Samples
(1) The large-format laser marking machine is a new high-speed, high-precision mirror stripping,glass sandblasting, drilling hole equipment developed according to the needs of the current smart mirror industry;
(2)This machine is not only suitable for architectural glass, automotive glass, furniture glass, craft glass, decorative glass, The paint and mirror removal process in the cabinet glass smart mirror industry is also suitable for surface marking on most plastics and stainless steel, aluminum oxide, copper and other alloy materials.
Packing&Shipping
Company Introduction
After Sales Service
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
* Training how to instal the machine, training how to use the machine in our factory. We provide food and accommodation.
* Engineers available to service machinery overseas.
3.Training
TIanhong Mechanical Equipment Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow:
*Training for Control software operation
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
*Training for normatively turning on/off operation of the machine
*Instruction of technical parameters, as well as their setting ranges
*Basic daily cleaning and maintenance for the machine
*Solutions for common hardware problems
*Training for other questions and technical suggestions during daily production
4.Training can be processed in the following ways:
*Workers of customers can come to our factory in Shandong, China to get the most professional hand-by-hand training.
*We can send engineers to customers’ country and do training for workers in customers’ target factory. However, tickets and daily consumption like food and accommodation should be afforded by customers.
*Remote training through Internet tools like Team-viewer, Skype and other instant communication softwares.
