Quick Details
-
Graphic Format Supported:
-
DXF, BMP, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Dimension(L*W*H):
-
485*415*374mm
-
Weight (KG):
-
13 KG
-
Product Name:
-
3018Plus2.0
-
Stepper motor:
-
Apply to Nema17 42 Stepper
-
Aluminum Table Size 300x180mm Material:
-
Aluminium
-
Driver chip:
-
A4988
-
Control board:
-
3-axis 5.2 GRBL 1.1f
-
Machine size:
-
485x415x374mm
-
Maximum running speed:
-
5000mm/min
-
Maximum processing speed:
-
2000mm/min
-
Applicable materials:
-
Plastic, wood, stone, aluminum, copper
Quick Details
-
Engraving Area:
-
300mm*180mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
adjustable
-
Graphic Format Supported:
-
DXF, BMP, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Lunyee
-
Dimension(L*W*H):
-
485*415*374mm
-
Weight (KG):
-
13 KG
-
Product Name:
-
3018Plus2.0
-
Stepper motor:
-
Apply to Nema17 42 Stepper
-
Aluminum Table Size 300x180mm Material:
-
Aluminium
-
Driver chip:
-
A4988
-
Control board:
-
3-axis 5.2 GRBL 1.1f
-
Machine size:
-
485x415x374mm
-
Maximum running speed:
-
5000mm/min
-
Maximum processing speed:
-
2000mm/min
-
Applicable materials:
-
Plastic, wood, stone, aluminum, copper
Specification
|
Product name
|

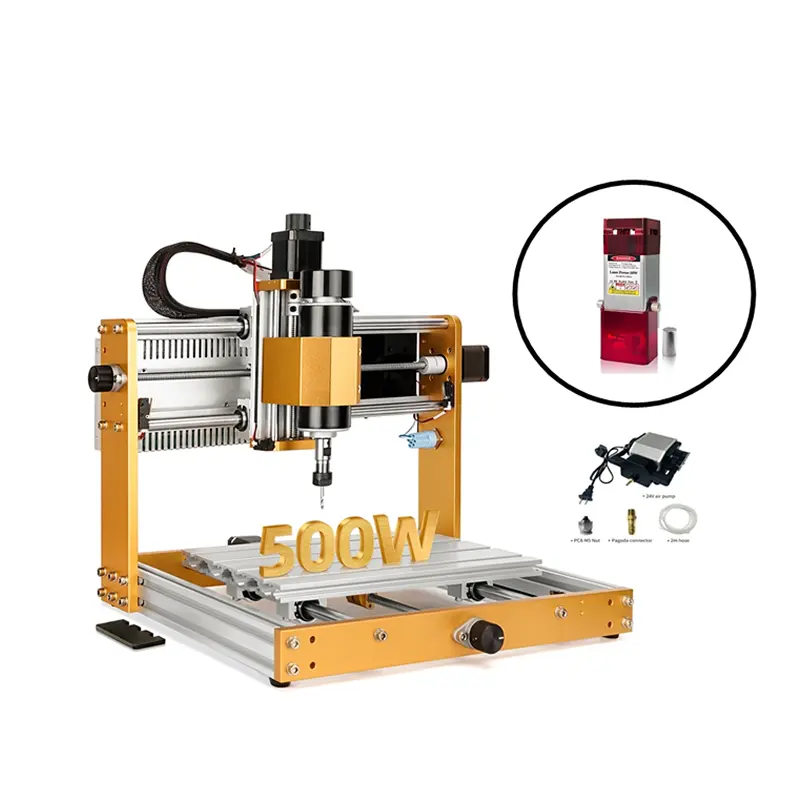

3018 Plus2.0 CNC Wood Router
|
|

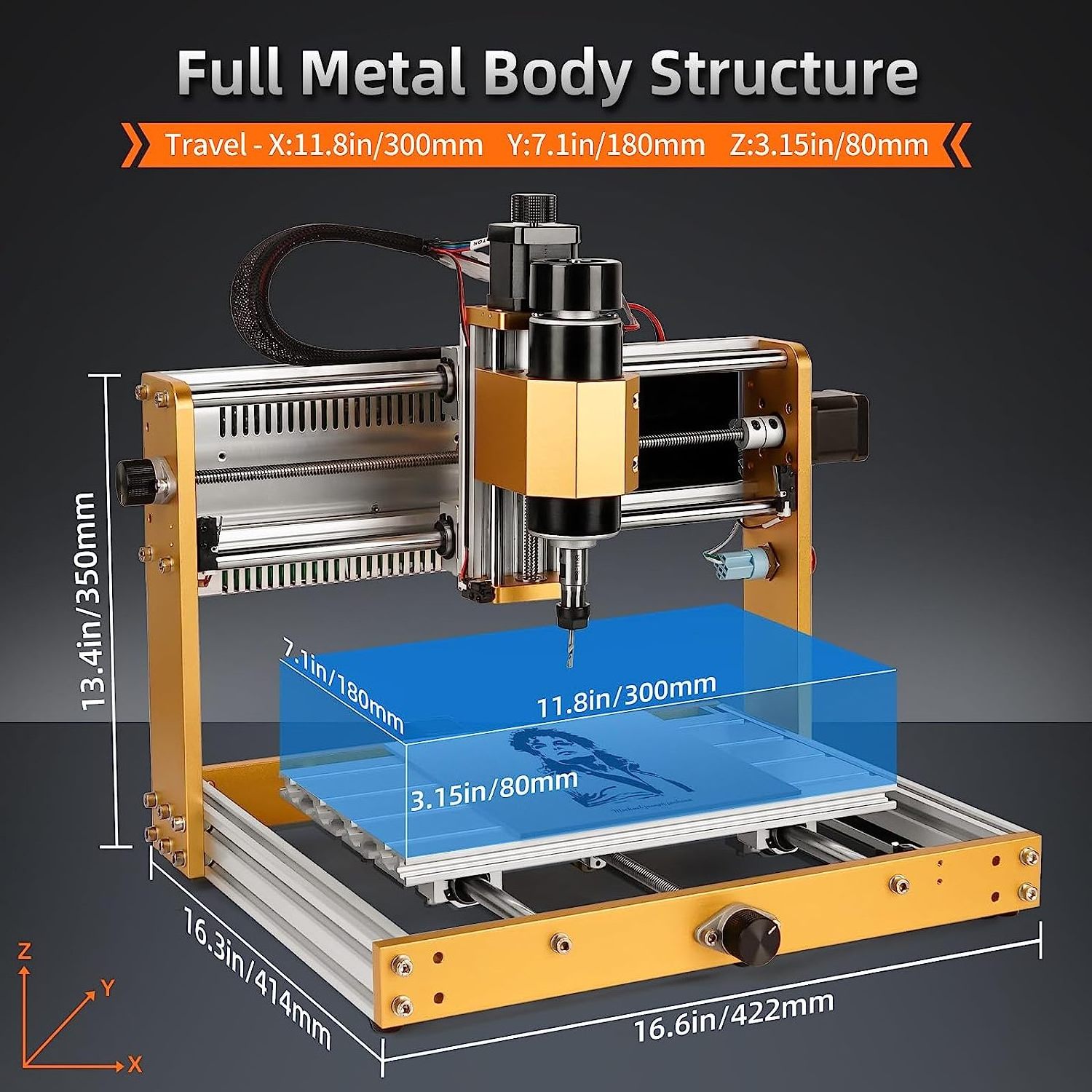

Working Area
|
300*180*80mm
|
|
Spindle Hole Diameter
|
52mm
|
|
Material
|
Aluminium
|
|
Spindle
|
500w
|
|
Stepper Motor
|
Apply to Nema 17/23 42/57BYG Stepper motor
|
|
Maximum machining speed
|
2000mm/min
|
|
Applicable materials
|
Plastic, wood, stone, aluminum, copper
|
Product Pictures
Applications
Product Features
*Three-axis, adjustable laser or cutter head
*All metal, heavier and more stable in operation
*Supports a variety of stepper motors
*Limit switch
*300W/500W spindle motor
*Emergency stop switch
*Z-axis travel is longer
*The motor wattage that the spindle can match is more diverse
*The diameter of the optical axis is thicker and relatively more stable
*Dashboard IntegrationMore
*Can engrave three-dimensional relief and metal

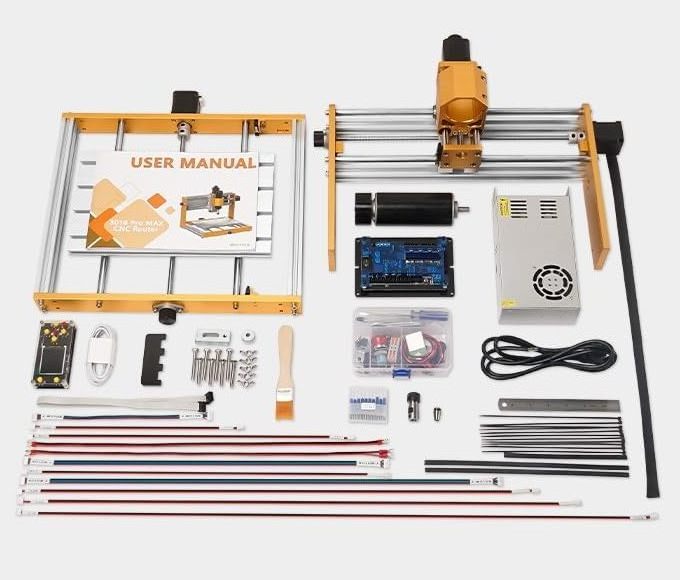

Packing List
Why Choose Us
LUNYEE Group specializes in the design, development, production and sales of industrial factory automation system solutions.
Our engraving machine products mainly include laser engraving machine, cnc engraving machine, CO2 laser engraving machine and laser marking machine.
The existing plant covers an area of 5,000 square meters. Established a world-leading standard factory building and multiple automated production lines, a professional design and R&D team, and equipped with a complete quality control system and quality inspection equipment.
The products have passed ISO quality management system and environmental management system, CE, ROHS and other high-tech certifications.
FAQ
Q1: What materials can it engrave?
A: Paper, bamboo, glass, wood, plastic, leather, stainless steel, aluminum, stone, cloth.
Q2:What materials can it cut?
A: Cork wood, paper, thin leather, thin plastic.
Q3: How to choose the suitable laser engraving machine?
A: There are several important items: Working area, Spindle, Laser, Be Carved and so on. After confirming some of these items, please contact us and we will recommend the most suitable machine for you.
Q4: Did you test all the goods before they were shipped?
A: Yes, we test every product before delivery.

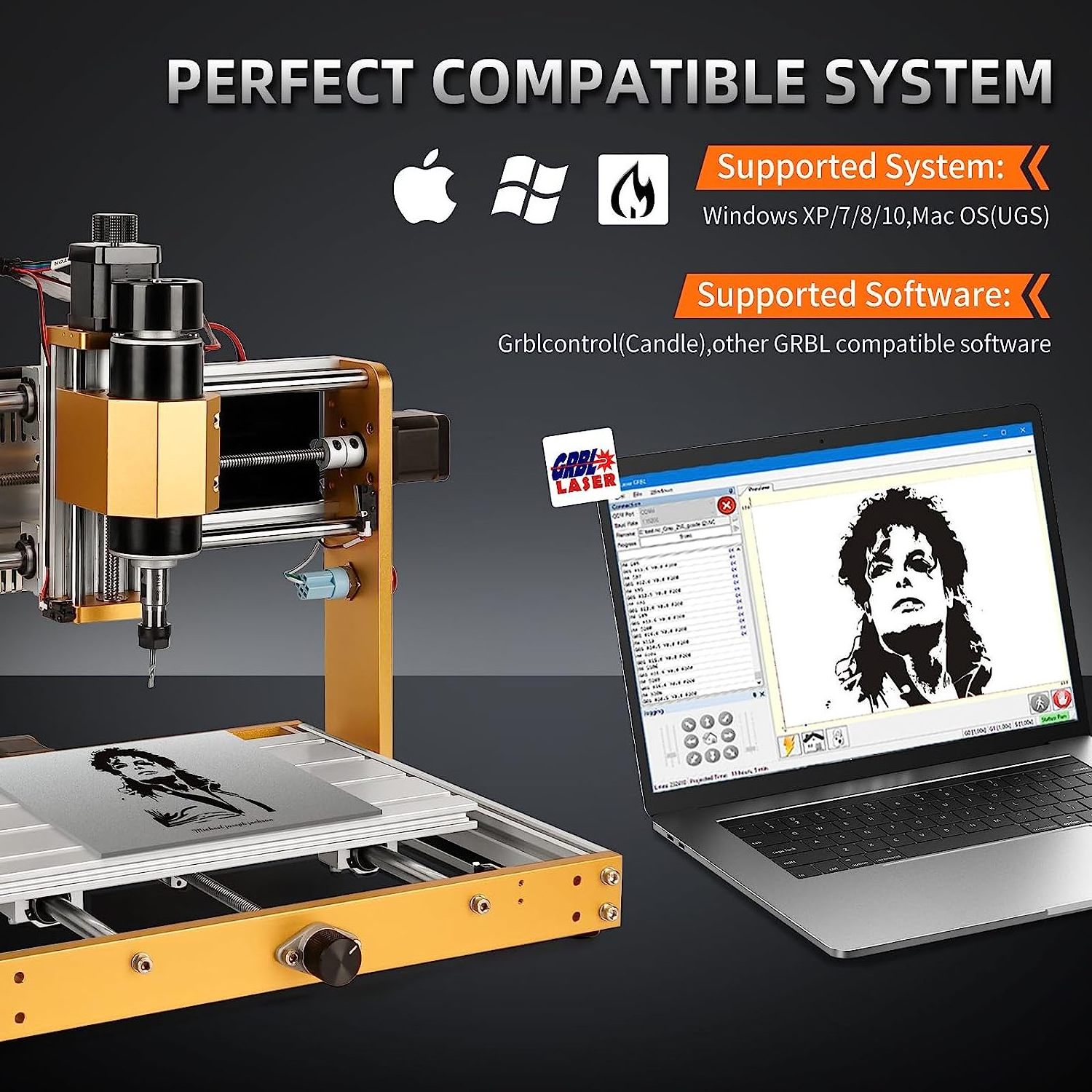

Q5: Are there software and instructions can I get it?
A: Yes, you can get the software, contact us please.
Q6: Which type computer system can run its software?
A: The software only support the Windows system.
Q7: What's the laser's lifetime?
A: The laser module have over 6,000 hours lifetime.
Q8: How long can the machine work continuously?
A: It can work continuously for 45 minutes, after the laser mould cool down (about half an hour), then start work again. Long time work continuously will shorten the service life of the laser module.
