Quick Details
-
Injection Rate (g/s):
-
51.08 g/s
-
Machine Type:
-
plastic injection molding machine
-
Injection Weight (g):
-
51.08 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
800 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
185 mm
-
Model Number:
-
JY-160S2
-
Brand Name:
-
JIE YANG
-
Power (kW):
-
2.2 kW
-
After-sales Service Provided:
-
Overseas service center available
-
Screw Diameter:
-
26-28mm
-
Min. Mold Thickness:
-
100/25mm
-
MACHINE DIMENSION:
-
1.35*0.92*2.06m
-
Injection pressure:
-
1183/1019 kg/cm2
-
Keyword:
-
Injection Moulding Machine
-
Distance Between Tie Bere:
-
265mm
-
Platen Size:
-
450*280mm
-
Opening Stroke:
-
190mm
-
Injection Rate:
-
105mm
Quick Details
-
Ejector Stroke(mm):
-
25 mm
-
Ejector Force(kN):
-
12.7 kN
-
Theoretical Shot Volume(cm³):
-
71.4 cm³
-
Injection Rate (g/s):
-
51.08 g/s
-
Machine Type:
-
plastic injection molding machine
-
Injection Weight (g):
-
51.08 g
-
Screw diameter (mm):
-
28 mm
-
Weight (KG):
-
800 kg
-
Place of Origin:
-
Guangdong, China
-
Open Stroke(mm):
-
185 mm
-
Model Number:
-
JY-160S2
-
Brand Name:
-
JIE YANG
-
Power (kW):
-
2.2 kW
-
After-sales Service Provided:
-
Overseas service center available
-
Screw Diameter:
-
26-28mm
-
Min. Mold Thickness:
-
100/25mm
-
MACHINE DIMENSION:
-
1.35*0.92*2.06m
-
Injection pressure:
-
1183/1019 kg/cm2
-
Keyword:
-
Injection Moulding Machine
-
Distance Between Tie Bere:
-
265mm
-
Platen Size:
-
450*280mm
-
Opening Stroke:
-
190mm
-
Injection Rate:
-
105mm
Product Description
|

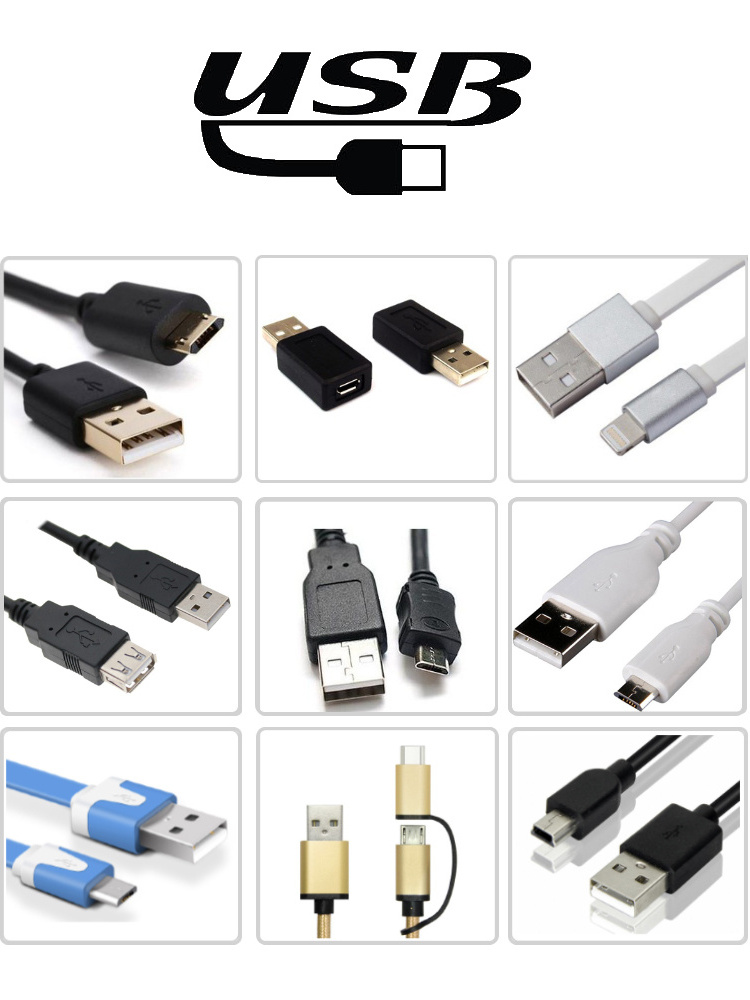

USB cable making process
:https://youtu.be/eiecpUPhGP4
|
|
|
|
|||
Main Features

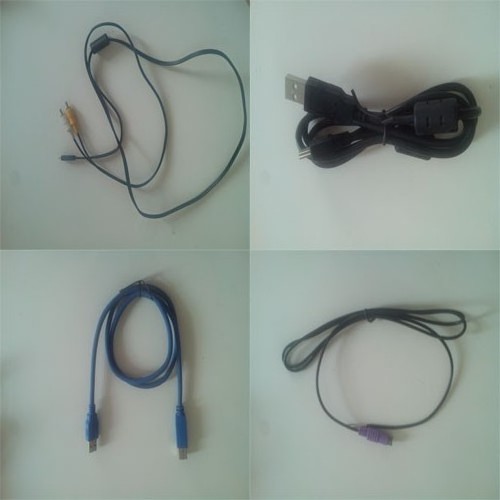

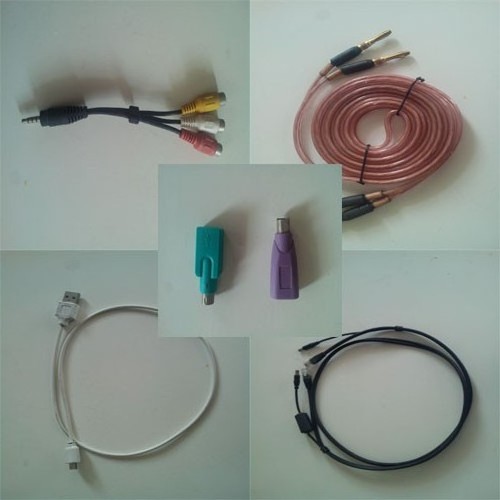

Machine Application
|
SPECIFICATIONS FOR

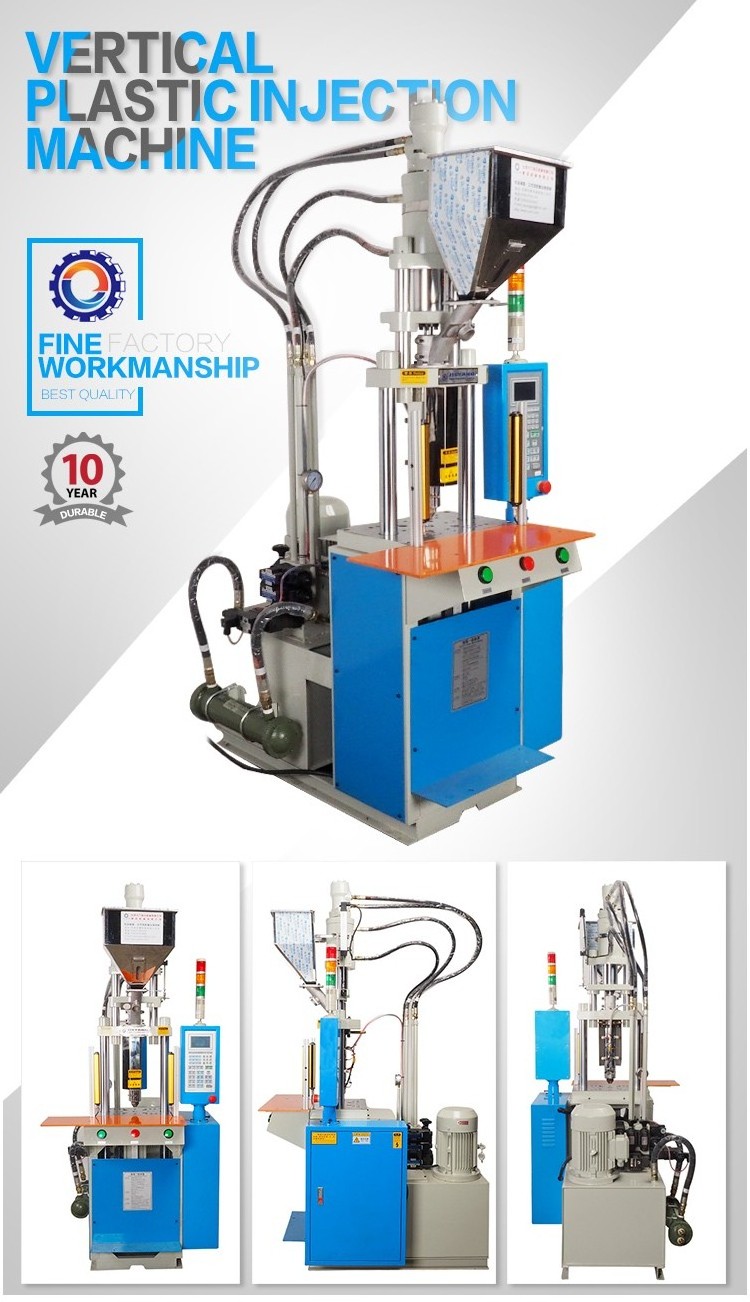

Small Plastic Injection Vertical Molding Machine 15T
(MODEL NO.:
JY-160S2,200ST
)
|
|
|
|
|
||||
|
|
|
|
JY-160S2
|
JY-200ST
|
||||
|
Injection Unit
|
Screw Diameter
|
mm
|
28
|
30
|
||||
|
|
Injection Pressure
|
kg/cm2
|
1019
|
896
|
||||
|
|
Theoretical Shot Volume
|
cm3
|
64.6
|
74
|
||||
|
|
Max. Shot Weight(PS)
|
g
|
58
|
67
|
||||
|
|
Saft Shot Weight(PS)
|
oz
|
2.0
|
2.4
|
||||
|
|
Max. Shot Weight(PS)
|
cm3/sec
|
40
|
76.7
|
||||
|
|
Injection Rate
|
mm
|
105
|
105
|
||||
|
|
Screw Speed Max.
|
rpm
|
0 - 215
|
0-200
|
||||
|
|
Number of Temperature Control
|
|
2
|
2
|
||||
|
Clamping Unit
|
Clamping Force
|
tons
|
15
|
30
|
||||
|
|
Platen Size
|
mm
|
450 x 280
|
480x310
|
||||
|
|
Distance Between Tie Bere
|
mm
|
265
|
295
|
||||
|
|
Min. Mold Height
|
mm
|
100/25
|
100/60
|
||||
|
|
Opening Stoke
|
mm
|
190
|
180
|
||||
|
|
Max. Open Daylight
|
mm
|
290/215
|
280/240
|
||||
|
|
Ejetor Force
|
tons
|
1.3
|
1.3
|
||||
|
|
Ejetor Stoke
|
mm
|
35
|
35
|
||||
|
Power/Heating Unit
|
Max. Hydaulic Pressure
|
kg/cm2
|
140
|
140
|
||||
|
|
Pump Output
|
l/min
|
17.5
|
29.5
|
||||
|
|
Oil Resservoir Capacity
|
l
|
80
|
100
|
||||
|
|
Cooling Water Consumption
|
l/hr
|
400 - 600
|
400-600
|
||||
|
|
Pump Motor Power
|
KW/HP
|
2.2 / 3HP
|
3.75/5.5HP
|
||||
|
|
Berrel Heating Power
|
KW
|
1.8
|
1.8
|
||||
|
|
Total Power
|
KW
|
4.2
|
5.5
|
||||
|
|
Machine Weight
|
tons
|
0.85
|
1
|
||||
|
|
Machine Dimension(LxWxH)
|
m
|
1.35 x 0.92 x 2.06
|
1.4x0.9x2.37
|
||||
|
|
Shipping Weight
|
tons
|
1.0
|
1.3
|
||||
|
|
Shipping Measures(LxWxH)
|
m
|
1.6 x 1.0 x 2.23
|
1.7x1.1x2.23
|
||||
