Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
POWERTECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*2250*2000MM
-
Weight (KG):
-
1200
-
Name:
-
cnc aluminum router machine
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Working area:
-
1300x2500mm
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Table Surface:
-
T-slot
-
Motor and driver:
-
delta servo motor
-
Control system:
-
DSP Controller
-
Transmission:
-
Helical Rack Pinion
-
Working voltage:
-
AC 220V/380V/50/60HZ Optional
-
Working speed:
-
0-30m/min (MAX)
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
6kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
POWERTECH
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3100*2250*2000MM
-
Weight (KG):
-
1200
-
Name:
-
cnc aluminum router machine
-
Application:
-
MDF WOOD ACRYLIC ALUMINUM
-
Working area:
-
1300x2500mm
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Table Surface:
-
T-slot
-
Motor and driver:
-
delta servo motor
-
Control system:
-
DSP Controller
-
Transmission:
-
Helical Rack Pinion
-
Working voltage:
-
AC 220V/380V/50/60HZ Optional
-
Working speed:
-
0-30m/min (MAX)

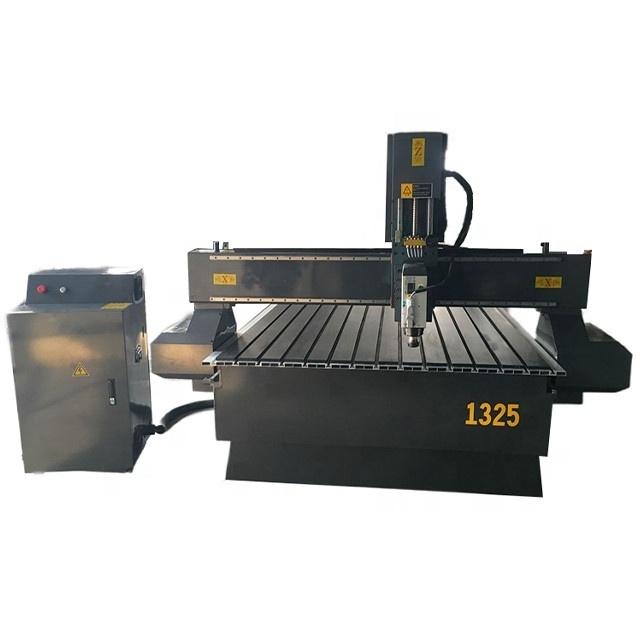

1. The 4x8 CNC router table adopts 8mm steel machine welding bed, after hundred times’ special vibrate experiment, we ensure that the lathe will not deform during their long-term working hours. With enhanced welding technicals, we supply the best CNC router tables with good stability, longer life and amazing accuracy rate.
2. 6kw HSD air cooling spindle with good cooling effect. Almost no noise, long service life.
3. Taiwan Hiwin square rails has more higher precision, less wear and tear can maintain high accuracy. it's applied to high-speed move and greatly reduce the drive horsepower the machine required. What’s more, it can bear the load from left and right, up and down at the same time.
4. Delta servo motor , won't lose step when it work, guarantee the positional accuracy of the motor.
5. DSP control system does not need to connect to PC. it is easy to operate and learn, especially for the beginner.
6. The 4 axis rotary device is conveniently for round materials working.( option)
7. Software: compatible with Type3, Artcam, Castmate, Ucancam and other CAD/CAM design softwares.
OPTIONAL
1. Bigger size rotary device (4th axis).
2. 200mm/300mm/400mm/500mm for Z axis.
3. water cooling spindle or HQD air cooling spindle
4. NC-studio or Mach 3 Controller
5. Japan Yaskawa servo motors or stepper motor
6. Automatic Tool Changer (ATC).
7. Dust collector.
8. Vacuum pump.
2. 200mm/300mm/400mm/500mm for Z axis.
3. water cooling spindle or HQD air cooling spindle
4. NC-studio or Mach 3 Controller
5. Japan Yaskawa servo motors or stepper motor
6. Automatic Tool Changer (ATC).
7. Dust collector.
8. Vacuum pump.
|
Brand
|
POWERTECH
|
|
Model
|
PT1325 |
|
Table Size
|
4' x 8'
|
|
Working Area
|
1300x2500x300mm
|
|
Traveling Positioning Accuracy
|
±0.03/300mm
|
|
Repositioning Accuracy
|
±0.03mm
|
|
Table Surface
|
T-slot table (Vacuum working table for option)
|
|
Frame
|
Welded Structure
|
|
X, Y Structure
|
Helical rack, Taiwan HIWIN Rail Linear Bearings
|
|
Z Structure
|
Taiwan HIWIN Rail Linear Bearings and Ball Screw
|
|
Max. Power Consumption
|
(Without Spindle) 3.2KW
|
|
Max. Rapid Travel Rate
|
33000mm/min
|
|
Max. Working Speed
|
25000mm/min
|
|
Spindle Power
|
6KW Italy HSD spindle
|
|
Spindle Speed
|
0-18000RPM
|
|
Drive Motors
|
DELTA SERVO MOTOR |
|
Working Voltage
|
AC380V/50/60Hz, 3PH (Option: 220V)
|
|
Command Language
|
G Code
|
|
Operating System
|
DSP (Options: Ncstudio/Mach3)
|
|
Computer Interface
|
USB
|
|
Collet
|
ER32
|
|
X,Y Resolution
|
<0.01mm
|
|
Software Compatibility
|
Type3/Ucancam/Artcam
|
|
Running Environment Temperature
|
0 - 45 Centigrade
|
|
Relative Humidity
|
30% - 75%
|
2. CNC spare parts with separated plywood case.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
3. Corner protect by foam and fixed by protective film.
4. All covered by strong and hard protective film.
5. Vacuum packing.
6. Inside steel frame protector.
7. Plywood packing and steel strip outside fixed the box.
8. Finishing packing by normal container or frame container.
PRE-SALE SERVICE
1. Free Sample Machining Service
Send us your designed files, we will arrange free sample machining in our factory and make video to show you the process and result, or send samples to you to check the machining quality.
2. Machining Solution Design:
According to customer’s requirements, we can design the unique solution that supports higher manufacturing efficiency and better machining quality for customer.
3. Custom and OEM Service
Yes, we can make OEM service .
AFTER-SALES SERVICE
1. We will supply the CNC router machine with training video and user's manual in English for installing, operation, maintenance and troubleshooting, and shall give technical guide by Desktop remote, E-mail, Telephone, Mobile, Whatsapp, Skype, 24/7 online chat, and so on, when you meet some problem of installation, operation or adjusting.
2. You can come to our CNC router machine factory for training.We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days.
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period.
2. You can come to our CNC router machine factory for training.We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipment, all sorts of tools and testing facility. Training Time: 3~5 days.
3. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period.
