Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Resucerial
-
Model Number:
-
RE209
-
Name:
-

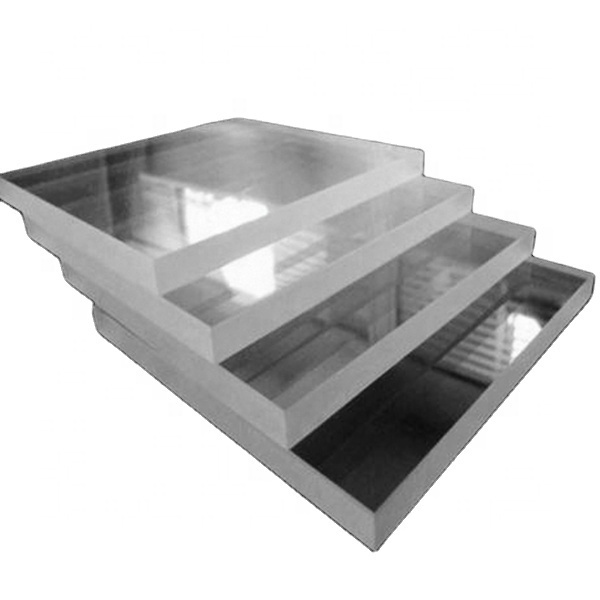

UV stop Quartz glass plate/disc/window/sheet
-
Other name:
-
Quartz glass plate/disc/window/sheet
-
Glass Type:
-
high ozone, ozone free, uv blocking, Low OH
-
Softening Point:
-
1680℃
-
Annealing Point:
-
1210℃
-
Density:
-
2.2g/cm3
-
Thermal Conductivity(20℃):
-
1.40W/m.℃
-
Specific Heat(20℃):
-
670J/Kg.℃
-
Dielectric Constant:
-
3.75
-
Strain Point:
-
1120℃
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
Electric light,Laser
-
Thickness:
-
0.10-20
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Resucerial
-
Model Number:
-
RE209
-
Name:
-
UV stop Quartz glass plate/disc/window/sheet
-
Other name:
-
Quartz glass plate/disc/window/sheet
-
Glass Type:
-
high ozone, ozone free, uv blocking, Low OH
-
Softening Point:
-
1680℃
-
Annealing Point:
-
1210℃
-
Density:
-
2.2g/cm3
-
Thermal Conductivity(20℃):
-
1.40W/m.℃
-
Specific Heat(20℃):
-
670J/Kg.℃
-
Dielectric Constant:
-
3.75
-
Strain Point:
-
1120℃
Product Description
- Electric light
- Laser
- Lenses
- Military
- Metallurgical
- optical instrument
- high temperature window
- environmental protection and other fields
| Model | UV stop Quartz glass plate/disc/window/sheet |
| Brand | Resucerial |
| Outer Diameter | 10-1500mm |
| Material | high purity >99.95%(SiO2) |
| Wall Thickness | 0.10-30mm |
| Length | 10-4500mm |
| Shape | Disc, Plate, sheet and etc. |
| Softening Point | 1680℃ |
| Annealing Point | 1210℃ |
| Strain Point | 1120℃ |
| Density | 2.2g/cm3 |
| Hardness | 5.5-6.50Mohs' |
| Design Tensile Strength | 4.80x 10 7 N/m^2 |
| Design Compressive Strength | 1.10x 10 9 N/m^2 |
|
Cofficient Of Thermal
Expansion(20-320℃) |
5.70x 10 -7 cm/cm.℃ |
| Thermal Conductivity(20℃) | 1.40W/m.℃ |
| Specific Heat(20℃) | 670J/Kg.℃ |
| Electrical Resistivity(350℃) | 7x 10 7 ohm.cm |
| Dielectric Constant | 3.75 |
| Dielectric Strength | 5x 10 7 V/m |
