Quick Details
-
Weight (KG):
-
0.5
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession Machinery
-
Dimension(L*W*H):
-
L)1100* W)755* H)1540
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Filing Volume:
-
50~100ml
-
Bag Length:
-
40-200mm
-
Bag Width:
-
50-150mm
-
Film Width:
-
Max. 320mm
-
Film Roll Diameter:
-
Max.300mm
-
Packaging Speed:
-
30-80 bags/min
-
Controller System:
-
PLC
-
Weight:
-
300kg
-
Composite material:
-
OPP/CPP,OPP/CE,MST/PE/PET/PE
Quick Details
-
Function:
-
FILLING, Sealing, Wrapping
-
Packaging Type:
-
Bags, Pouch
-
Packaging Material:
-
OPP/CPP,OPP/CE,MST/PE/PET/PE
-
Weight (KG):
-
0.5
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession Machinery
-
Dimension(L*W*H):
-
L)1100* W)755* H)1540
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Filing Volume:
-
50~100ml
-
Bag Length:
-
40-200mm
-
Bag Width:
-
50-150mm
-
Film Width:
-
Max. 320mm
-
Film Roll Diameter:
-
Max.300mm
-
Packaging Speed:
-
30-80 bags/min
-
Controller System:
-
PLC
-
Weight:
-
300kg
-
Composite material:
-
OPP/CPP,OPP/CE,MST/PE/PET/PE
Product Description

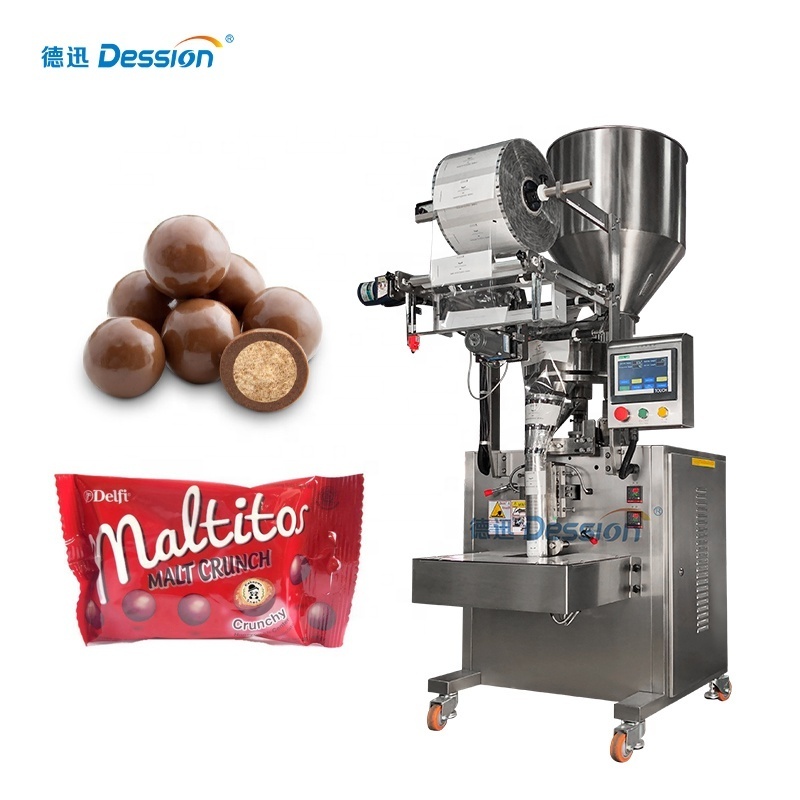

Dession Vertical Small Chocolate Ball Candy Packing Machine Factory Price
Product Description
Product Details
Main Features
- 1.Stable and simply film roll structure enable roll film running smoothly.
- 2. 7inch Delta touch screen , easy operation and multiple language for choice.
- 3. Self diagnosis failure function , machine error can be clearly displayed.
- 4. All controls are achieved by software , easy for function adjusting and upgrading.
-
5.
Self diagnosis failure function
, machine error can be clearly displayed.
Application
Doing by Volumetric Cup.Application for popcorn, rice, pepper, sugar, salt etc.

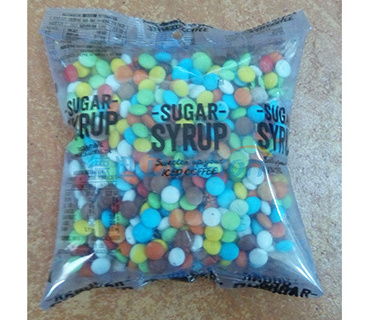

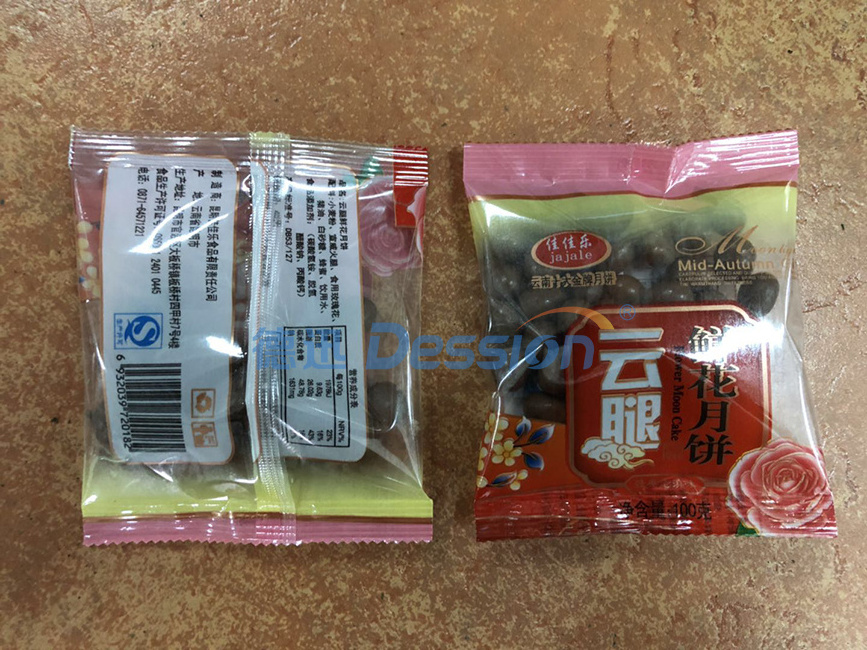

Sample
Detailed Images
Packing Machine Technical Data
|
Model
|
DS-320A
|
|
|
|
Measuring Range
|
50~ 200g
|
|
|
|
Packaging Speed
|
30 ~ 70 bags/min
|
|
|
|
Bag Width
|
50 ~ 150mm
|
|
|
|
Bag Length
|
40~ 200mm
|
|
|
|
Film Roll Width
|
320mm
|
|
|
|
Power
|
220V,50HZ,1.2KVA
|
|
|
|
Bag Type
|
Pillow Bag Sachet Pouch
|
|
|
|
Machine Size
|
( L ) 1100x ( W ) 755 x( H ) 1540mm
|
|
|
How the packing machine working?
Easy Control Touch Screen
Film Roller
The film can be replaced easily on the film roller.
Various films adaptable: OPP/CPP,OPP/CE,MST/PE/PET/PE.
Measuring cup
#304 stainless steel
measurement parts will measure the weight of each bag automatically.
Bag Former
#304 stainless steel bag former is for shaping the film into a bag.
Different bag width needs different bag former.
Different bag width needs different bag former.
Durable Sealing Cutting Blades
Certifications

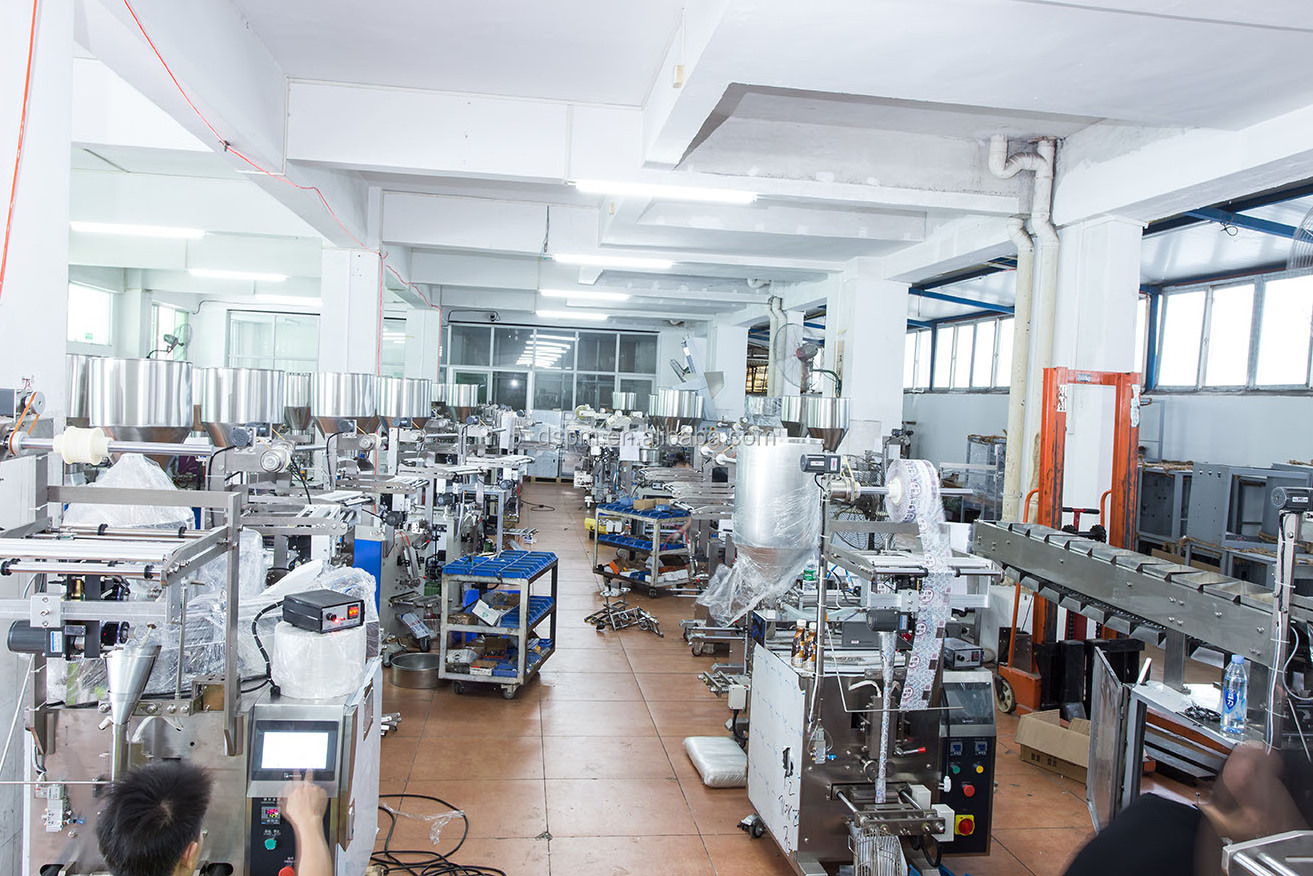

Our Company
