Quick Details
-
Model Number:
-
SQ3Z
-
Max. Current:
-
800A
-
Type:
-
3 Phase Automatic Change Over Switch
-
Certificates:
-
IEC, CCC, CE
-
Pole:
-
3P,4P
-
Rated current:
-
250-630A
-
Operation:
-
Manual and Auto, or Manual
-
Gurantee period:
-
2 years
-
MCB to use:
-
MCB, MCCB
-
Connection:
-
intelligent type
-
Rated voltage:
-
400V/690V
-
Web:
-
www.chinasuntree.com/index.html
Quick Details
-
Max. Voltage:
-
400V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Xinchi/OEM
-
Model Number:
-
SQ3Z
-
Max. Current:
-
800A
-
Type:
-
3 Phase Automatic Change Over Switch
-
Certificates:
-
IEC, CCC, CE
-
Pole:
-
3P,4P
-
Rated current:
-
250-630A
-
Operation:
-
Manual and Auto, or Manual
-
Gurantee period:
-
2 years
-
MCB to use:
-
MCB, MCCB
-
Connection:
-
intelligent type
-
Rated voltage:
-
400V/690V
-
Web:
-
www.chinasuntree.com/index.html

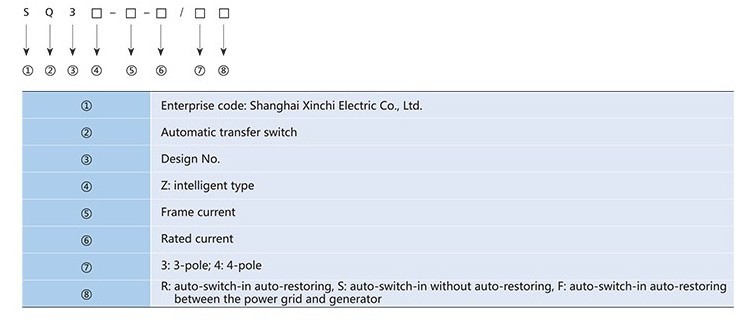

Product Introduction
Product Parameters
|
Type
|
SQ3Z-100
|
SQ3Z-225
|
SQ3Z-400
|
SQ3Z-630
|
SQ3Z-800
|
||||
|
Moldel of circuit breaker
|
SM1
|
|
|
|
TM30
|
||||
|
Frame size A
|
100
|
225
|
400
|
630
|
800
|
||||
|
Rated working current A
|
10/16/20/32/40
/50/63/800/100
|
100/125/140/
160/180/200/225
|
200/225/
315/350/400
|
250/315/350
/400/500
/630
|
630/700
/800
|
||||
|
Breaking current kA
|
Refer to the circuit breaker manual
|
|
|
|
|
||||
|
Rated working voltage V
|
400
|
|
|
|
|
||||
|
Insulating voltage V
|
1000
|
|
|
|
|
||||
|
Pole
|
3P/4P
|
|
|
|
|
||||
|
Frequency
|
50-60Hz
|
|
|
|
|
||||
|
Switching time
|
1-30s adjustable
|
|
|
|
|
||||
|
Intelligent controller voltage
|
AC 220V
|
|
|
|
|
||||
|
Mechanical life
|
Its mechanical life can reach 5000 by once opening and closing operation
|
|
|
|
|
||||
