Quick Details
-
Input Voltage Range:
-
10.5 ~ 15VDC
-
Input DC Current:
-
40A
-
Efficiency:
-
86%
-
Working Temp.:
-
-10 ~ +40℃@ 100% load ; +60℃@ 50% load
-
Working Humidity:
-
20% ~ 90% RH non-condensing
Quick Details
-
Output Current:
-
None
-
Place of Origin:
-
Guangdong, China
-
Product:
-
Pure Sine Wave Power Inverter 12V 220V
-
Input Voltage Range:
-
10.5 ~ 15VDC
-
Input DC Current:
-
40A
-
Efficiency:
-
86%
-
Working Temp.:
-
-10 ~ +40℃@ 100% load ; +60℃@ 50% load
-
Working Humidity:
-
20% ~ 90% RH non-condensing

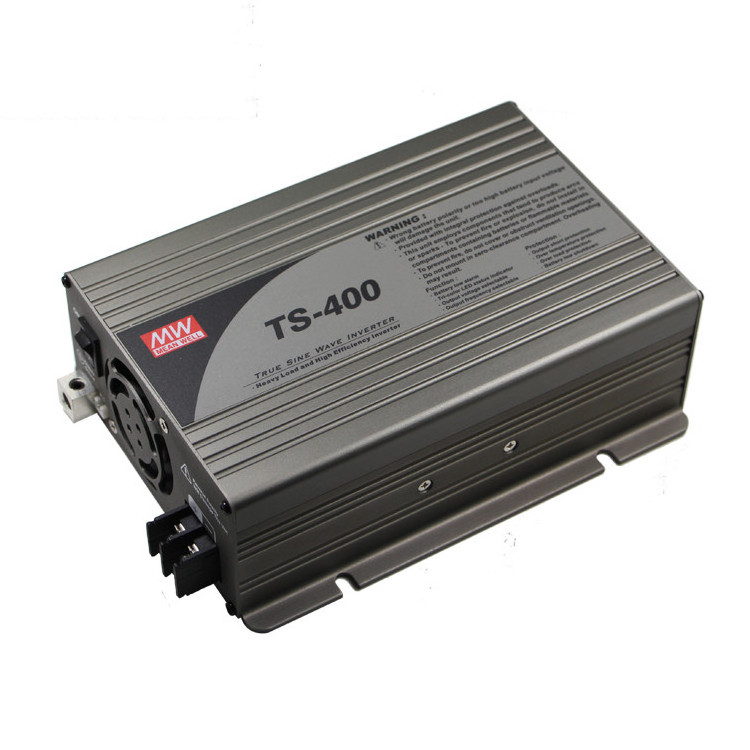

400W DC AC Inverter 12V TS-400-212B Meanwell Pure Sine Wave Power Inverter 12V 220V
Product Description
- Mean Well Pure Sine Wave Power Inverter 12V 220V
- True sine wave output (THD<3%)
- High surge power up to 800W
- High efficiency up to 88.5%
- Thermostatically controlled cooling fan
- Built-in remote ON-OFF control
- Front panel indicator for operation status
- Power ON-OFF switch
- Protections: Bat. low alarm / Bat. low shutdown / Over voltage / Over temp. / Output short / Input reverse polarity / Overload
- Application : Home appliance, power tools, office and portable equipment, vehicle and yacht ...etc.
- 3 years warranty
Model Encoding:
Model Series:
TS-400-112() / TS-400-124() / TS-400-148() / TS-400-212() / TS-400-224() / TS-400-248()
Details:
| MODEL | TS-400-112 | TS-400-124 | TS-400-148 | |
| OUTPUT | RATED POWER | 400W | ||
| MAXIMUM OUTPUT POWER | 460W for 180 sec. / 600W for 10 sec. / surge power 800W for 30 cycles(typ.) | |||
| AC VOLTAGE | Factory setting set at 110VAC | |||
| 100 / 110 / 115 / 120VAC selectable by setting button S.W | ||||
| FREQUENCY | 60±0.1Hz 50/60Hz selectable by setting button | |||
| WAVE FORM | True sine wave (THD<3%) | |||
| AC REGULATION | ±3.0% at rated input voltage | |||
| FRONT PANEL INDICATOR |
Operation status ; Green : normal, Orange(flashing) :
remote control OFF, Red : abnormal |
|||
| INPUT | BAT. VOLTAGE | 12V | 24V | 48V |
| VOLTAGE RANGE | 10.5 ~ 15VDC | 21 ~ 30VDC | 42 ~ 60VDC | |
| DC CURRENT | 40A | 20A | 10A | |
| NO LOAD CURRENT DRAW | 1.25A | 0.63A | 0.32A | |
| OFF MODE CURRENT DRAW | ≤1mA | |||
| EFFICIENCY | 84.5% | 86% | 87% | |
| BATTERY TYPES | Open & sealed Lead Acid | |||
|
BATTERY INPUT
PROTECTION |
FUSE | 40A*2 | 40A*1 | 20A*1 |
| BAT. LOW ALARM | 11.3±4% | 22.5±4% | 45±4% | |
| BAT. LOW SHUTDOWN | 10.5±4% | 21±4% | 42±4% | |
| BAT. POLARITY | By internal fuse open | |||
| OUTPUT | OVER TEMPERATURE | 85°C± 5°C | 75°C±5°C | 70°C±5°C |
|
Protection type : Shut down o/p voltage, re-power on to recover;
by internal RTH1 detect power transistor |
||||
| OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER LOAD | 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| GFCI PROCTECTION | Optional (Only type F) | |||
| FUCTION | REMOTE CONTROL | Open : Normal work ; Short : Remote off | ||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +40°C@ 100% load ; +60°C@ 50% load | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -30 ~ +70°C/ -22 ~ +158oF, 10 ~ 95% RH | |||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | Design refer to UI458 | None | |
| LVD | None | |||
| WITHSTAND VOLTAGE | Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC | |||
| ISOLATION RESISTANCE | Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||
| EMC EMISSION | Compliance to FCC class A | |||
| EMC IMMUNITY | None | |||
| OTHERS | MTBF | 104.7K hrs min. MIL-HDBK-217F (25°C) | ||
| DIMENSION | 205*158*67mm (L*W*H) | |||
| PACKING | 1.73Kg; 6pcs/11.4Kg/1.55CUFT | |||
| MODEL | TS-400-212 | TS-400-224 | TS-400-248 | |
| OUTPUT | RATED POWER | 400W | ||
| MAXIMUM OUTPUT POWER | 460W for 180 sec. / 600W for 10 sec. / surge power 800W for 30 cycles(typ.) | |||
| AC VOLTAGE | Factory setting set at 230VAC | |||
| 200 / 220 / 230 / 240VAC selectable by setting button S.W | ||||
| FREQUENCY | 50±0.1Hz 50/60Hz selectable by setting button | |||
| WAVE FORM | True sine wave (THD<3%) | |||
| AC REGULATION | ±3.0% at rated input voltage | |||
| FRONT PANEL INDICATOR |
Operation status ; Green : normal, Orange(flashing) :
remote control OFF, Red : abnormal |
|||
| INPUT | BAT. VOLTAGE | 12V | 24V | 48V |
| VOLTAGE RANGE | 10.5 ~ 15VDC | 21 ~ 30VDC | 42 ~ 60VDC | |
| DC CURRENT | 40A | 20A | 10A | |
| NO LOAD CURRENT DRAW | 1.25A | 0.63A | 0.32A | |
| OFF MODE CURRENT DRAW | ≤1mA | |||
| EFFICIENCY | 86% | 87.5% | 88.5% | |
| BATTERY TYPES | Open & sealed Lead Acid | |||
|
BATTERY INPUT
PROTECTION |
FUSE | 40A*2 | 40A*1 | 20A*1 |
| BAT. LOW ALARM | 11.3±4% | 22.5±4% | 45±4% | |
| BAT. LOW SHUTDOWN | 10.5±4% | 21±4% | 42±4% | |
| BAT. POLARITY | By internal fuse open | |||
| OUTPUT | OVER TEMPERATURE | 85°C± 5°C | 75°C±5°C | 70°C±5°C |
|
Protection type : Shut down o/p voltage, re-power on to recover;
by internal RTH1 detect power transistor |
||||
| OUTPUT SHORT | Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER LOAD | 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | |||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| GFCI PROCTECTION | None | |||
| FUCTION | REMOTE CONTROL | Open : Normal work ; Short : Remote off | ||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +40°C@ 100% load ; +60°C@ 50% load | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -30 ~ +70°C/ -22 ~ +158oF, 10 ~ 95% RH | |||
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | None | ||
| LVD | EN60950-1 | |||
| WITHSTAND VOLTAGE | Bat. I/P - AC O/P:3.0KVAC AC O/P - FG:1.5KVAC | |||
| ISOLATION RESISTANCE | Bat. I/P-AC O/P, AC O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||
| EMC EMISSION | Compliance to EN55022 class A, 72/ 245/ CEE, 95/ 54/ CE, E-Mark | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,8 | |||
| OTHERS | MTBF | 104.7K hrs min. MIL-HDBK-217F (25°C) | ||
| DIMENSION | 205*158*67mm (L*W*H) | |||
| PACKING | 1.73Kg; 6pcs/11.4Kg/1.55CUFT | |||
Mechanical Specification:
