Quick Details
-
Model Number:
-
DTD-9600
-
Type:
-
dissolved oxygen meter, dissolved oxygen
-
Battery:
-
none
-
Material:
-
#
-
Size:
-
#
-
Product name:
-
Single Channel Dissolved Oxygen Controller
-
Application:
-
Water Treatment Industry
-
Measurement range:
-
0-200.0ug/L,0-20.00mg/L
-
Power supply:
-
220VAC±10% 50/60HZ or DC24V or DC12V
-
Resolution:
-
0.1ug/L , 0.01mg/L , 0.1°C
-
Accuracy:
-
ug/L :±1.0%FS mg/L :±0.5%FS, ±0.3°C
-
Temp. Compensation:
-
0-60°C
-
analog output:
-
4-20mA
-
Dimension:
-
218*183*126mm
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
NOBOTECH
-
Model Number:
-
DTD-9600
-
Type:
-
dissolved oxygen meter, dissolved oxygen
-
Battery:
-
none
-
Material:
-
#
-
Size:
-
#
-
Product name:
-
Single Channel Dissolved Oxygen Controller
-
Application:
-
Water Treatment Industry
-
Measurement range:
-
0-200.0ug/L,0-20.00mg/L
-
Power supply:
-
220VAC±10% 50/60HZ or DC24V or DC12V
-
Resolution:
-
0.1ug/L , 0.01mg/L , 0.1°C
-
Accuracy:
-
ug/L :±1.0%FS mg/L :±0.5%FS, ±0.3°C
-
Temp. Compensation:
-
0-60°C
-
analog output:
-
4-20mA
-
Dimension:
-
218*183*126mm
Product Description
NOBO dissolved oxygen concentration monitor DTD-9600 Industry water analysis dissolved oxygen sensor 4~20ma do meter for sewage
DTP-9600 is an intelligent multi-parameter PH meter developed by our company. It has patent rights. It can measure the data of four dissolved oxygen (for example, it can monitor the dissolved oxygen value of four pools at the same time), and has a temperature compensation function.
DTP-9600 has more advantages than ordinary PH meter, and has 4-20mA output, RS485modbus communication protocol, automatic control relay and other functions.
The DTP-9600 can be connected to the DTU via RS485 to achieve the Internet of Things function. You can use your phone or computer to access the Internet and view data anytime, anywhere.
DTP-9600 is widely used in aquaculture, anaerobic tanks, aeration tanks, rivers, lakes, oxygen consumption tanks, etc.
Most importantly, we are an independent R&D and production enterprise, supporting OEM and product customization
Product Description

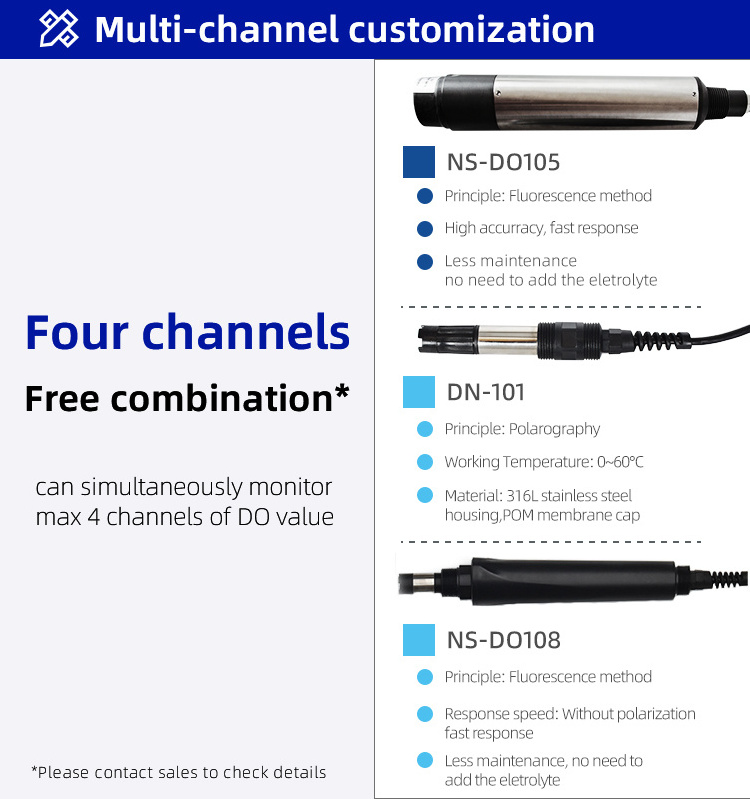

Polarographic probe

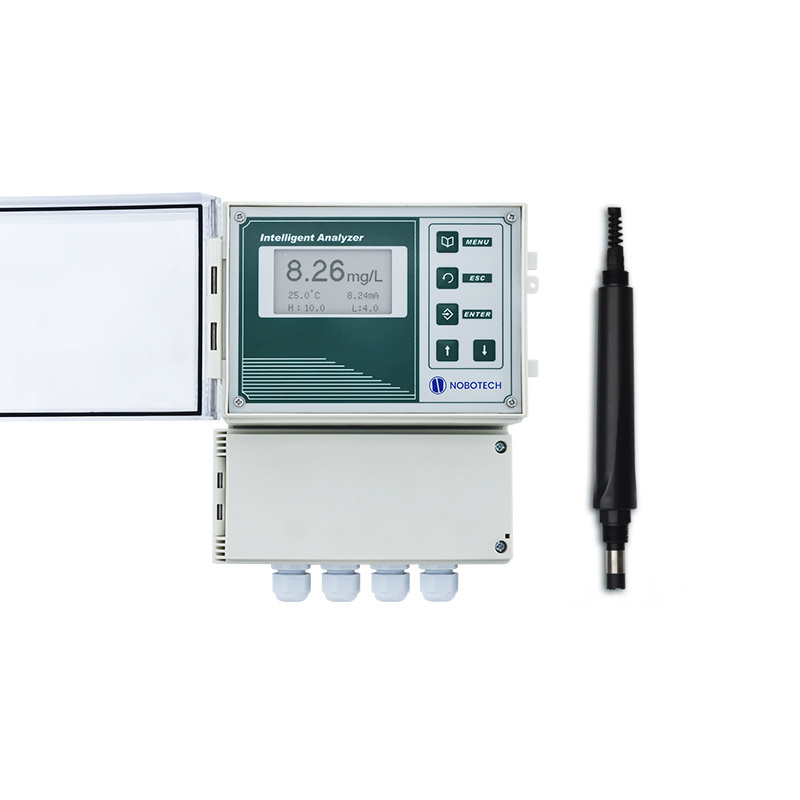

Detailed Images
ADVANTAGE
Wall-mounted installation (similar to LCD TV installation), no need for holes, easy installation on site
Customer case
Case 1
Spain
Case 2
Italy
Case 3
Russia
Our products are exported to Europe, Africa, America, Oceania, and Asia-Pacific. Customers all over the world are using NOBO brand water quality testing equipment, which is trustworthy!

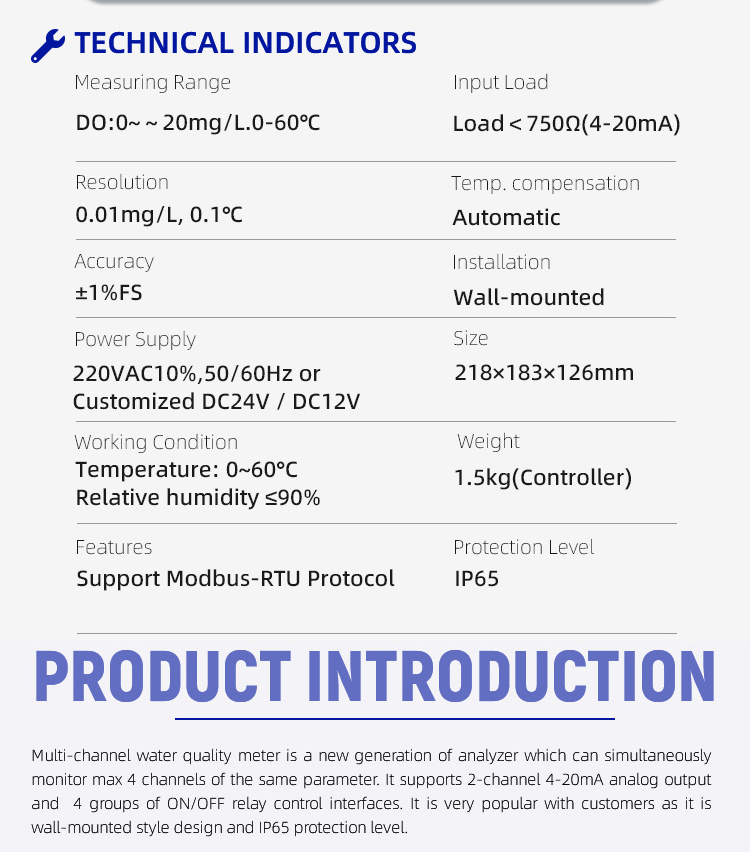

Measuring range
Simultaneously monitor four dissolved oxygen data
|
Parameter
|
Resolution
|
Precision
|
Temperature
|
Custom made
|
|
DO 1
|
0~20mg/L
|
0.1mg
|
0-60℃
|
YES
|
|
Parameter
|
Resolution
|
Precision
|
Temperature
|
Custom made
|
|
DO 2
|
0~20mg/L
|
0.1mg
|
0-60℃
|
YES
|
|
Parameter
|
Resolution
|
Precision
|
Temperature
|
Custom made
|
|
DO 3
|
0~20mg/L
|
0.1mg
|
0-60℃
|
YES
|
|
Parameter
|
Resolution
|
Precision
|
Temperature
|
Custom made
|
|
DO 4
|
0~20mg/L
|
0.1mg
|
0-60℃
|
YES
|

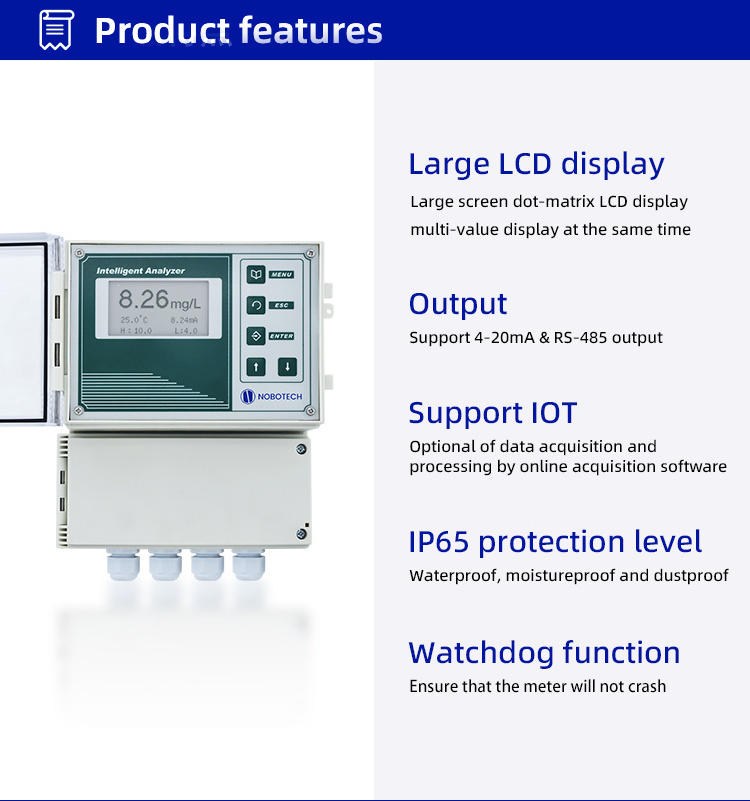

MAIN FEATURES
|
Main Features
|
|
|
|
|||
|
◇ The new designed shell is waterproof ,moisture-proof and dust-proof.
|
|
|
|
|||
|
◇ Two channels 4-20mA , Two channels temperature.
|
|
|
|
|||
|
◇ Products with high precision, high stability performance and strong anti-interference ability.
|
|
|
|
|||
|
◇ Large screen dot matrix LCD, support English operation menu, multi-parameters display at the same time.
|
|
|
|
|||
|
◇ Automatic temperature compensation.
|
|
|
|
|||
|
◇ Communication function : RS - 485 communication port witch can optional , photoelectric isolation 4-20mA current output , the corresponding value can be set freely.
|
|
|
|
|||
|
◇ Optional the online acquisiton softerware of the host computer of our company can be selected to collect and process the data.
|
|
|
|
|||
|
◇ Automatic identification standard solution, recoverable factory Setting.
|
|
|
|
|||
|
◇ The watchdog function: make sure the instrument does not crash.
|
|
|
|
|||
|
◇ Power-off protection > 10 years.
|
|
|
|
|||
