Quick Details
-
Brand Name:
-
TR
-
Product Name:
-
Pressure Line Filter -PMA Series
-
Operating medium:
-
mineral oil,emulsion,water-glycol
-
Operating pressure (max)::
-
11MPa
-
Operating temperature:
-
-25℃~110℃
-
Indicating pressure drop:
-
0. 5MPa0. 5MPa
-
By-pass valve unlocking pressure:
-
0.6MPa
-
quality:
-
high quality
-
Application:
-
Hydraulic Oil System
Quick Details
-
Weight (KG):
-
4
-
Core Components:
-
Filter
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TR
-
Product Name:
-
Pressure Line Filter -PMA Series
-
Operating medium:
-
mineral oil,emulsion,water-glycol
-
Operating pressure (max)::
-
11MPa
-
Operating temperature:
-
-25℃~110℃
-
Indicating pressure drop:
-
0. 5MPa0. 5MPa
-
By-pass valve unlocking pressure:
-
0.6MPa
-
quality:
-
high quality
-
Application:
-
Hydraulic Oil System

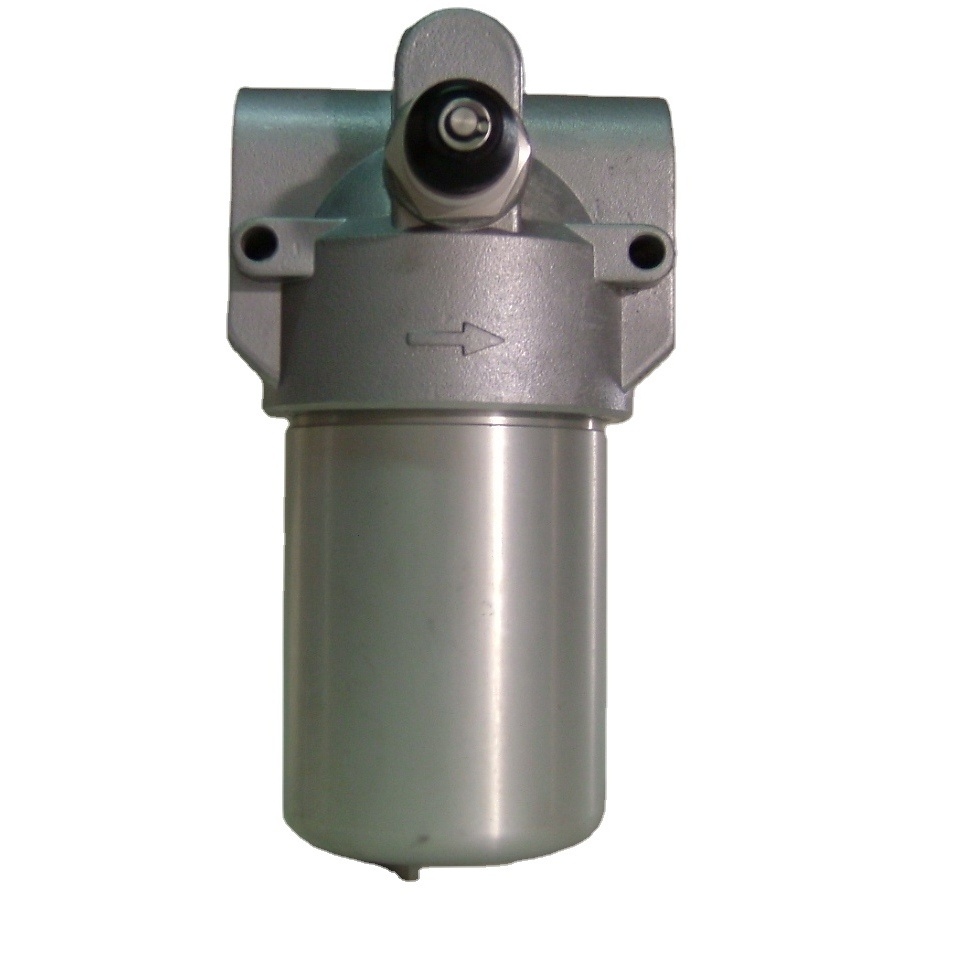

Pressure Line Filter
-PMA Series
1) DESCRIPTION
It is installed in the hydraulic pressure system to filter solid particle and slimes in
medium and effectively control cleanliness.
Differential pressure indicator and by-pass valve can be assembled according to
actual requirement.
Filter element adopts many kinds of materials, such as inorganic fiber,
Resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.
Filter vessel is cast in aluminum and has small volume, small weight, compact
construction and nice looking figure.
2) TECHNICAL DATA
Operating medium: mineral oil, emulsion, water-glycol, phosphate ester
(resin-impregnated paper just for mineral oil)
Operating pressure (max): 11MPa Operating temperature: -25℃~110℃
Indicating pressure drop: 0. 5MPa By-pass valve unlocking pressure: 0.6MPa
3) ODERING INFORMATION
![]()
![]()
-PMA Series
1) DESCRIPTION
It is installed in the hydraulic pressure system to filter solid particle and slimes in
medium and effectively control cleanliness.
Differential pressure indicator and by-pass valve can be assembled according to
actual requirement.
Filter element adopts many kinds of materials, such as inorganic fiber,
Resin-impregnated paper, stainless steel sinter fiber web, stainless steel wire mesh.
Filter vessel is cast in aluminum and has small volume, small weight, compact
construction and nice looking figure.
2) TECHNICAL DATA
Operating medium: mineral oil, emulsion, water-glycol, phosphate ester
(resin-impregnated paper just for mineral oil)
Operating pressure (max): 11MPa Operating temperature: -25℃~110℃
Indicating pressure drop: 0. 5MPa By-pass valve unlocking pressure: 0.6MPa
3) ODERING INFORMATION
