Quick Details
-
Model Number:
-
AM-EPS-36
-
Output Frequency:
-
50-60Hz
-
Name:
-
Emergency power supply
-
Backup Voltage:
-
4.2V
-
Current Rated:
-
190-230mA
-
Output Voltage:
-
DC15-108V
-
Battery Type:
-
Lithium 4.2V
-
Input Power:
-
5-36W
-
Emergency Mode:
-
120 Minutes Min
-
Effiiency:
-
>95 %
Quick Details
-
Warranty(Year):
-
2-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Allmay
-
Model Number:
-
AM-EPS-36
-
Output Frequency:
-
50-60Hz
-
Name:
-
Emergency power supply
-
Backup Voltage:
-
4.2V
-
Current Rated:
-
190-230mA
-
Output Voltage:
-
DC15-108V
-
Battery Type:
-
Lithium 4.2V
-
Input Power:
-
5-36W
-
Emergency Mode:
-
120 Minutes Min
-
Effiiency:
-
>95 %

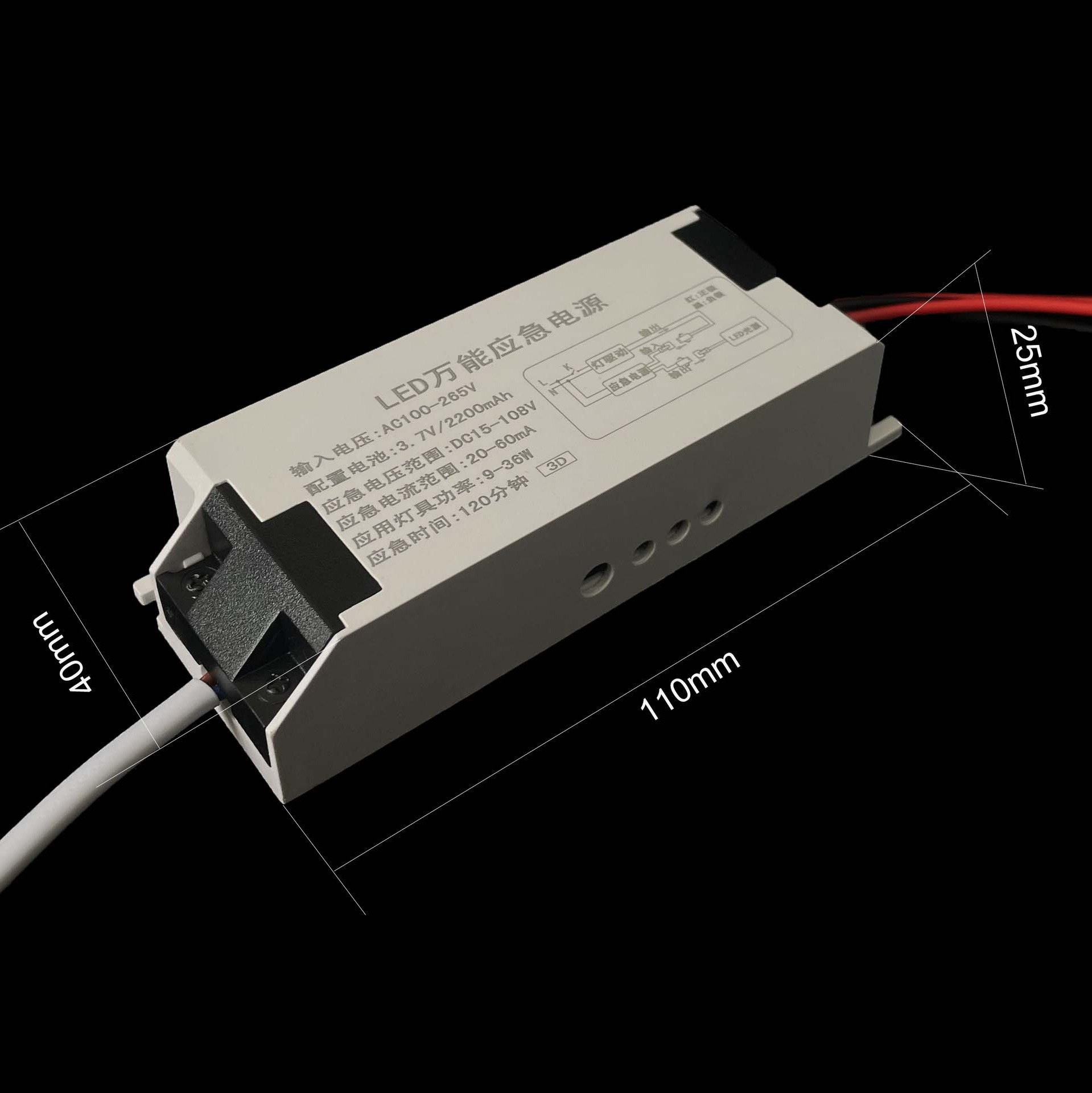

Maintained 5-36W 15-108V Output Power Source LED Emergency Backup Driver for LED Tube Panel Light
- High Capacity Lithium Battery: Equipped with a high-capacity lithium battery to ensure extended runtime during power outages.
- When AC power is presenet, the LED load from the LED driver is at normal power supply,
- AC LED driver output current can not exceend 36W, the emergency driver is charging in standby mode.
- When the AC power goes out, the emergency driver detects the AC power outage and automatically switches to the working emergency mode.
- The green LED light will switch off, When the AC power starts working and starts re-charging, the green LED light on.
Product Description
| Input Voltage | 85-265 VAC - 50Hz |
| Load Type | LED Panel lamp/ceiling lamp/Batten/Linear light |
| Input Power | 5-36W |
| Output Power | 3.5W |
| Voltage Range | DC15-108V |
| Current Rated | 190-230mA |
| Emergency Mode | 120 Minutes Min |
| Effiiency | >95 % |
| Battery Type | Lithium 3.7V 2200mAh |
| Battery Voltage | 4.2V |
| Battery Recharge Time | <24 Hours |
| Battery Discharge Time | >90mins |
| Dimension | 115*43*27mm (4.52*1.69*1.06) |
| Weight | 0.105kgs |
| Warranty | 2 Years |
