Quick Details
-
Installation:
-
External
-
Brand Name:
-
OEM
-
Model Number:
-
GI-C1000
-
Place of Origin:
-
Guangdong, China
-
Item name:
-
Chip Card Reader Writer for Mobile Payment
-
Feature:
-
DUKP,3DES key management
-
Compatibility:
-
IOS, Android smart phone
-
Support cards:
-
Credit card, signature debit card,loyalty card,gift card etc
-
Security:
-
secure algorithms, hardware encryption
-
Battery capacity:
-
120mAh/200mAh
-
product weight:
-
30g
-
Product dimension:
-
60x15.7x41.8mm (LxWxH)
-
Color:
-
black,white color
Quick Details
-
Type:
-
SD Card, XD Card, MMC CARD, Memory Stick Card, SM Card, CF Card
-
Interface:
-
PCI
-
Card Slots:
-
Single
-
Installation:
-
External
-
Brand Name:
-
OEM
-
Model Number:
-
GI-C1000
-
Place of Origin:
-
Guangdong, China
-
Item name:
-
Chip Card Reader Writer for Mobile Payment
-
Feature:
-
DUKP,3DES key management
-
Compatibility:
-
IOS, Android smart phone
-
Support cards:
-
Credit card, signature debit card,loyalty card,gift card etc
-
Security:
-
secure algorithms, hardware encryption
-
Battery capacity:
-
120mAh/200mAh
-
product weight:
-
30g
-
Product dimension:
-
60x15.7x41.8mm (LxWxH)
-
Color:
-
black,white color

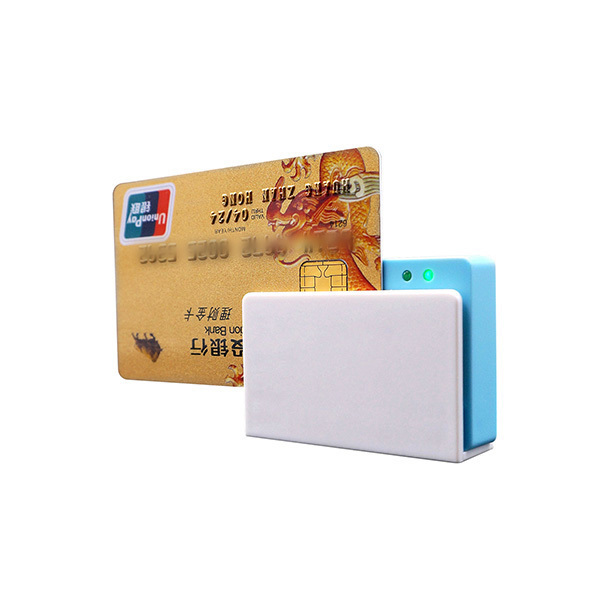

Hot Selling 2 in 1Smart Magnetic and Chip Card Reader Writer for Mobile Payment
Product Description
| Interface | Wireless port |
| Storage Temperature | -30℃to70℃ (-22℉ to 158℉) non-condensing |
| Operating Temperature | 0℃to55℃ (32℉ to 131℉) non-condensing |
| Compatibility | ios series,Android |
| Working power | li-ion battery power |
| Battery capacity | 120mAh/200mAh |
| Battery life | More than 500 cycles |
| Chip | 4K SRAM |
| Rated voltage | 3V DC |
| Idle Current | 12nA |
| Send command Current | 40mA |
| LED lights | Red: power indicator ,Green: charge indicator |
| Switch button |
Switching two modes, CTIA and OMTP. Appropriated
earbuds direction CTIA mode and the other direction is the OMTP mode |
| IC power indicator | Light on means the battery charge remaining |
| Charge indicator | Light on means in charge |
| Charging time | 2-3hours |
| Dimensions | 60mm(L) X 15.7(W) X 41.8mm(H) |
| Weigh | 60g |
| Reference Standards | ISO-7816 Class A,B and C,EMV |
| Operating Life | approx. 100,000 passes |
| Card thickness | About 0.75mm |
| Insert IC card Current | 20mA |
| Operate IC card | 50mA |
| Working current | 25mA |
| Reference Standards | ISO 7811,AMMVA,CADMV and other format |
| Swipe speed | 3 ~ 60 inches per second,bi-directiona |
| Operating Life | approx. 300,000 passes |
| Track position | 1&2&3 tracks |
| Card thickness | 0.76~1.2mm |
| Working current | 7mA |
| Working Hours |
Support swipe magnetic stripe card more than fifty
thousand times |
