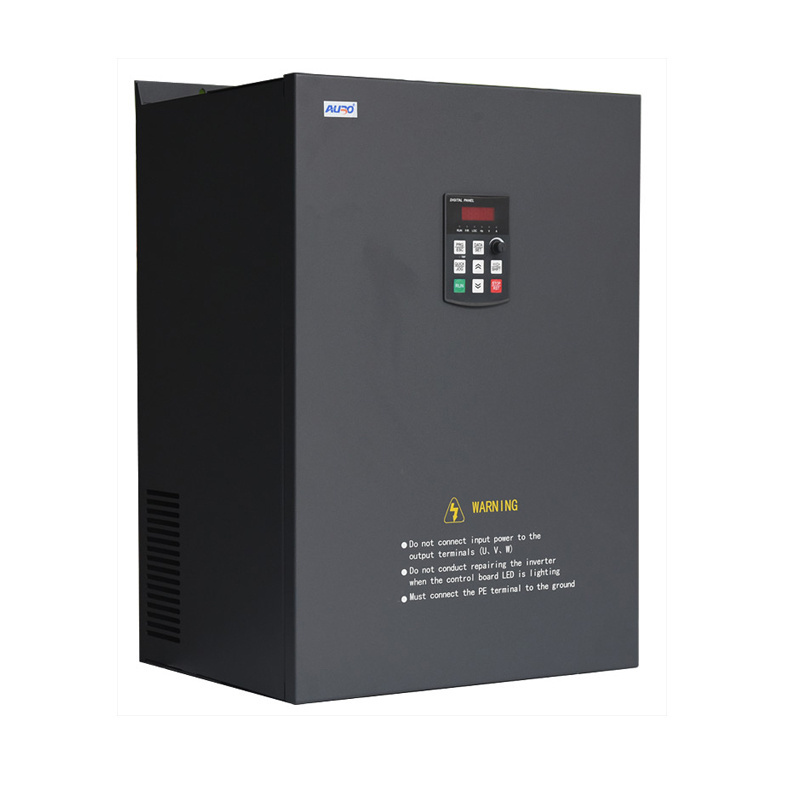

55 kw 380v fan speed controller 3 phase frequency converter
55 kw 380v fan speed controller 3 phase frequency converter
55 kw 380v fan speed controller 3 phase frequency converter
55 kw 380v fan speed controller 3 phase frequency converter
55 kw 380v fan speed controller 3 phase frequency converter
55 kw 380v fan speed controller 3 phase frequency converter
55 kw 380v fan speed controller 3 phase frequency converter
55 kw 380v fan speed controller 3 phase frequency converter

55 kw 380v fan speed controller 3 phase frequency converter

FOB Reference Price: Get Latest Price
≥1 Pieces
US $981
≥3 Pieces
US $963
≥5 Pieces
US $900
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
AVF580
Input Voltage:
220v 380v
Output Voltage:
0~ rated input voltage
Output Frequency:
50Hz/60Hz
Size:
Depending on the product;Can be customized
Weight:
Depending on the product
Product name:
3 phase frequency converter
Input/Output Phase:
1 or 3 Phase to 3phase
Input frequency:
47-63Hz
Ouput frequency:
0-600HZ
Color:
Black;Can be customized
Cooling Method:
Nature/ Fan cooled
Application:
motor/pump/fan/CNC,etc.
Warranty:
12 months
keywords:
frequency converter 5 5 kw 380v
Certificate:
CE ISO9001

Quick Details

Output Current:
Load
Place of Origin:
Jiangsu, China
Brand Name:
AUBO
Model Number:
AVF580
Input Voltage:
220v 380v
Output Voltage:
0~ rated input voltage
Output Frequency:
50Hz/60Hz
Size:
Depending on the product;Can be customized
Weight:
Depending on the product
Product name:
3 phase frequency converter
Input/Output Phase:
1 or 3 Phase to 3phase
Input frequency:
47-63Hz
Ouput frequency:
0-600HZ
Color:
Black;Can be customized
Cooling Method:
Nature/ Fan cooled
Application:
motor/pump/fan/CNC,etc.
Warranty:
12 months
keywords:
frequency converter 5 5 kw 380v
Certificate:
CE ISO9001
Product Profile

Fan Speed Cotroller 3 phase Frequency Converter 5 5 kw 380v

Product Introduction
MODEL
AVF580 SERIES
Power Supply
0.4kw to 450kw
Rate Voltage
220v~690v
Input Freqeuncy
50HZ/60HZ
Output Frequency
0~320HZ
Phase
Single or Three Phase

Excellent IGBT Module

The High Quality Chip

SMT PCBS

Product Parameters
ITEM
SPECIFICATION
ITEM
SPECIFICATION
Max Frequency
Vector control:0~300HZ
V/F control:0~320HZ
Carrier Frequency
0.5kHZ~16kHZ
Self-adjustment
Input Frequency Resolution
Digital:0.01HZ
Analog：Max Freq.*0.025%
Control Methods
SVC,FVC,V/F control
Overload Capacity
G Type:150% FLC for 60s;180% FLC for 3s
P Type:120% FLC for 60s;150% FLC for 3s
Simple PLC
Through the built-in plc or control section to achieve up to 16 speed operation
Built-in PID
To facilitate the realization of process control closed-loop control system
AVR(Automatic voltage adjustment)
When the grid voltage changes, can automatically maintain the output voltage is constant
Multi-motor switching
Four sets of motor parameters, can achieve four motor switching control
Multi-threaded bus support
Modbus,Profibus-DP,CANlink,CANopen.
Multi-encoder support
Support differential, open-circuit integrated electrode, UVW, rotary transformer, cosine and other encoders.
QUICK/JOG







Functional quick button to be defined by user freely
Voltage auto-tuning
When the power supply viberates, the output voltage is kept constant automatically
More than 25 protections
Over current, over voltage, under voltage, over temperature, phase loss, over load, etc.
