Quick Details
-
Voltage:
-
220V/380V/415V/480V/600V
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
800 KG
-
Product name:
-

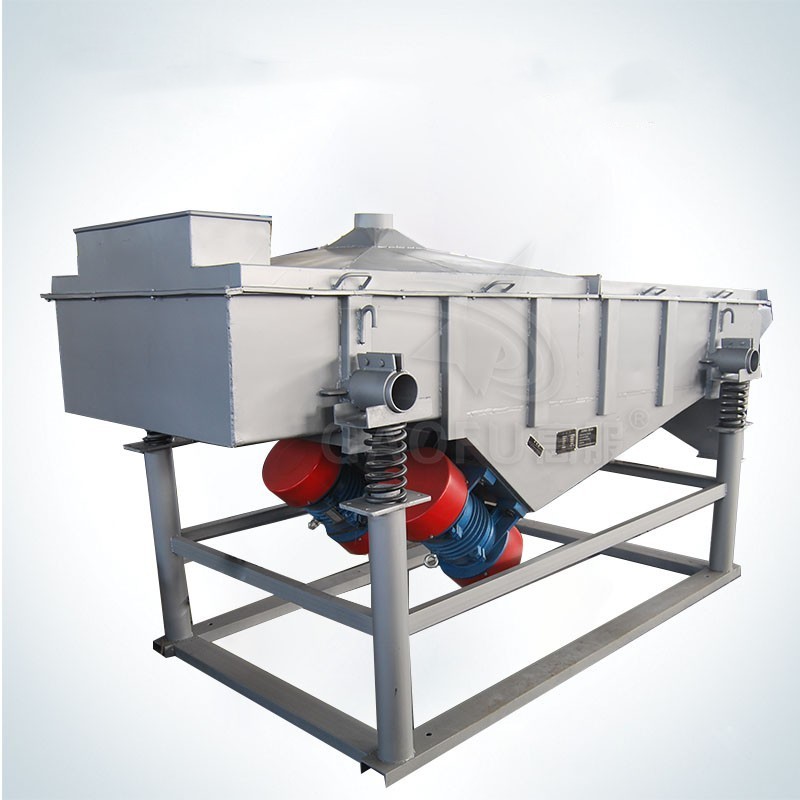

Linear Vibrating Screen
-
Material:
-
Carbon Steel
-
Motor:
-
Two Vibration Motor
-
Usage:
-
Screening\Classification\Separation
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
5-30 t/h
-
Screen mesh size:
-
2-500 mesh
-
Applicable Material:
-
Quicklime
-
Feature:
-
Factory Outlet
-
Advantage:
-
High Output
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaofu
-
Voltage:
-
220V/380V/415V/480V/600V
-
Dimension(L*W*H):
-
as per model
-
Weight:
-
800 KG
-
Product name:
-
Linear Vibrating Screen
-
Material:
-
Carbon Steel
-
Motor:
-
Two Vibration Motor
-
Usage:
-
Screening\Classification\Separation
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
5-30 t/h
-
Screen mesh size:
-
2-500 mesh
-
Applicable Material:
-
Quicklime
-
Feature:
-
Factory Outlet
-
Advantage:
-
High Output
Product Description
Suitable for coarse mesh and the material with strong grading ,such as sand building material
Spring
The spring of the machine adopt 65mn steel,it has long service life, safe and reliable .
Cover and dust removal hole
Gaofu design the cover with dust removal hole,if your material has a lot of dust, this design meets environmental protection requirement, and protect workers' health.
Cleaning Device
:
The machine adopt bouncing ball as cleaning device ,to avoide the material clog the mesh hole.
Technical parameters
|
Model
|
Size
(mm)
|
Granularity(mm)
|
Leanangle
(°)
|
Amplitude (mm)
|
Layers
|
Power
(kw)
|
|
SZF-520
|
500X2000
|
|
0°-7°
|
4-10
|
1-6
|
2x(0.4-0.75)
|
|
SZF-525
|
500X2500
|
|
|
|
|
2x(0.4-0.75)
|
|
SZF-1020
|
1000X2000
|
|
|
|
|
2x(0.4-0.75)
|
|
SZF-1025
|
1000X2500
|
|
|
|
|
2x(0.4-1.1)
|
|
SZF-1030
|
1000X3000
|
|
|
|
|
2x(1.1-1.5)
|
|
SZF-1040
|
1000X4000
|
|
|
|
|
2x(1.1-1.5)
|
|
SZF-1235
|
1200X3500
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1250
|
1200X5000
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1535
|
1500X3500
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1565
|
1500X6500
|
|
|
|
|
2x(2.2-3.7)
|
|
SZF-1845
|
1800X4500
|
0.074-15
|
|
|
|
2x(2.2-3.7)
|
|
SZF-2050
|
2000X5000
|
|
|
|
|
2x(2.2-3.7)
|
|
SZF-2260
|
2200X6000
|
|
|
|
|
2x(2.2-3.7)
|
