Quick Details
-
Heating Power (kW):
-
17 kW
-
Production Speed(times/h):
-
200
-
Power Supply:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LOOKER
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2620*2020*2050mm
-
Weight (T):
-
0.7 T
-
Production efficiency:
-
100~300 moulds per hour
-
Vacuum pump:
-
20CBM/H
-
Driven Type:
-
Pneumatic and electric
-
Twice vacuum suction:
-
Yes
-
Heater:
-
Infrared Ceremic
-
Max forming area:
-
560*610mm
-
Cooling system:
-
air blowing and water chilling
-
Control system:
-
PLC
Quick Details
-
Max.Forming Height(mm):
-
150 mm
-
Forming Width (mm):
-
560 mm
-
Forming Length (mm):
-
610 mm
-
Heating Power (kW):
-
17 kW
-
Production Speed(times/h):
-
200
-
Power Supply:
-
380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LOOKER
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2620*2020*2050mm
-
Weight (T):
-
0.7 T
-
Production efficiency:
-
100~300 moulds per hour
-
Vacuum pump:
-
20CBM/H
-
Driven Type:
-
Pneumatic and electric
-
Twice vacuum suction:
-
Yes
-
Heater:
-
Infrared Ceremic
-
Max forming area:
-
560*610mm
-
Cooling system:
-
air blowing and water chilling
-
Control system:
-
PLC
Product Description

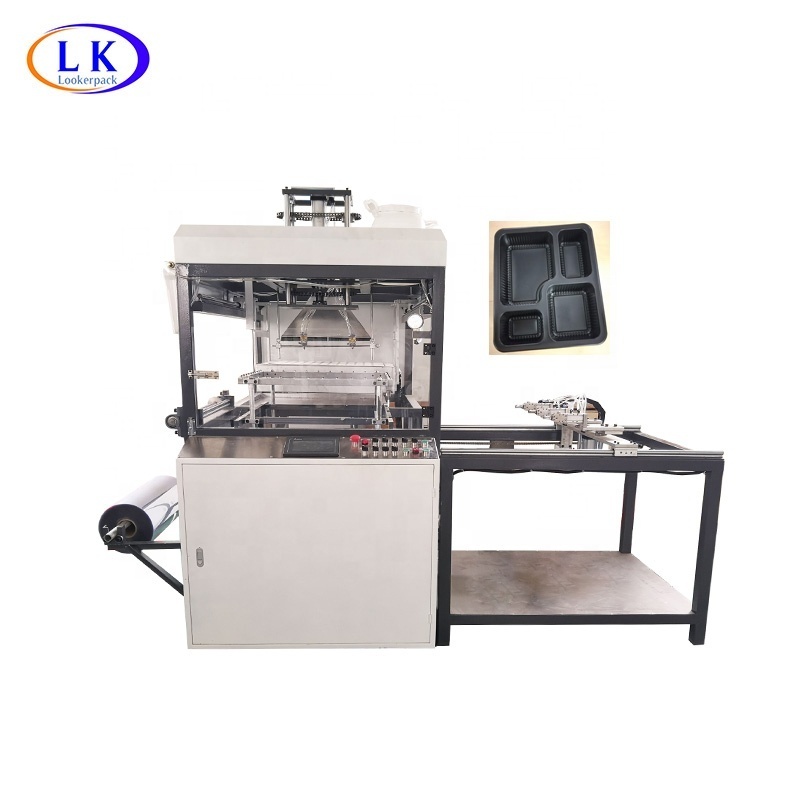

Automatic Blister Vacuum Thermoforming Machine

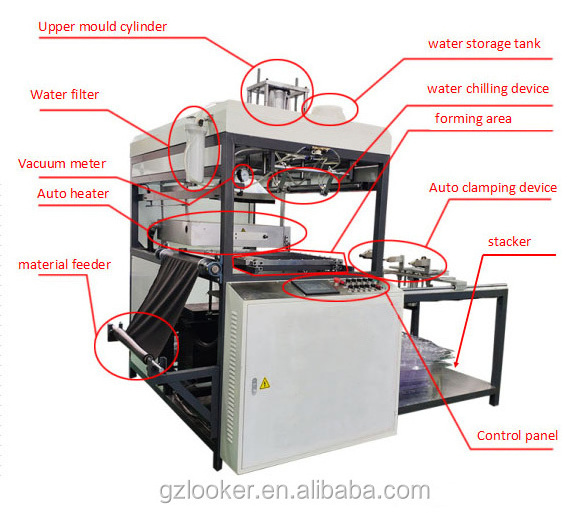

Machine Structure:
Machine Application
Main Features
|
Machine Technical Parameters
|
|
|
|
Model
|
LK-61C
|
|
|
Power supply
|
AC380V,3 phase
|
|
|
Power
|
17KW
|
|
|
Vacuum pump capacity
|
20 CBM /H
|
|
|
Max.Forming width
|
560 mm
|
|
|
Max.Forming length
|
610mm
|
|
|
Max. forming height
|
150mm
|
|
|
Speed
|
100~200moulds/H
|
|
|
Thickness of material
|
0.2~1.5mm
|
|
|
Machine size
|
2620*2020*2050mm
|
|
|
N. weight
|
700 KG
|
|
Certifications
Detailed Images
Machine Parts
Machine Parts
Machine Parts
Water chilling system
Robot hand
After forming,the robot hand can clamp the formed sheet and pull it out
automatically
,It can save one labor to pull the formed sheet.
Moulds & Samples
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
2095 (L) * 1210 (W) * 1950(H)mm
1280 (L) * 1200 (W) * 1230(H)mm
|
|
|
Weight
|
800KG
|
|
|
Packaging Details
|
Machine packing inside is plastic films and outside is plywood case,it's suitable for exporting directly.Our wood case is very strong,it can bear long time shipping on the sea. And machine with preservative film, which can stop the salty sea water entering into it.
|
|
